| Brand | RIGOL |
|---|
Passive Probe
The RIGOL Passive Probe series is a high-performance measurement solution designed to capture signals from DC to 1.5GHz without the need for an external power supply. These probes offer a cost-effective and simple approach to daily testing, with specialized models capable of handling high voltages up to 18kV. Their robust design ensures reliability for everyone from beginners to expert engineers.
Key Specifications & Features
- Bandwidth: DC to 1.5GHz (PVP and RP series)
- High Voltage Handling: Up to 18kV (RP1018H)
- Power: No external power supply required
- Model Variety: Includes RP1300H, RP1018H, and RP1010H
- Voltage Ratings: 2kV, 10kV, and 18kV options available
- Frequency Range: 50MHz to 300MHz for high voltage series
- Application: Suitable for beginners to expert level users
- Cost-Efficiency: Simple, durable, and economical design

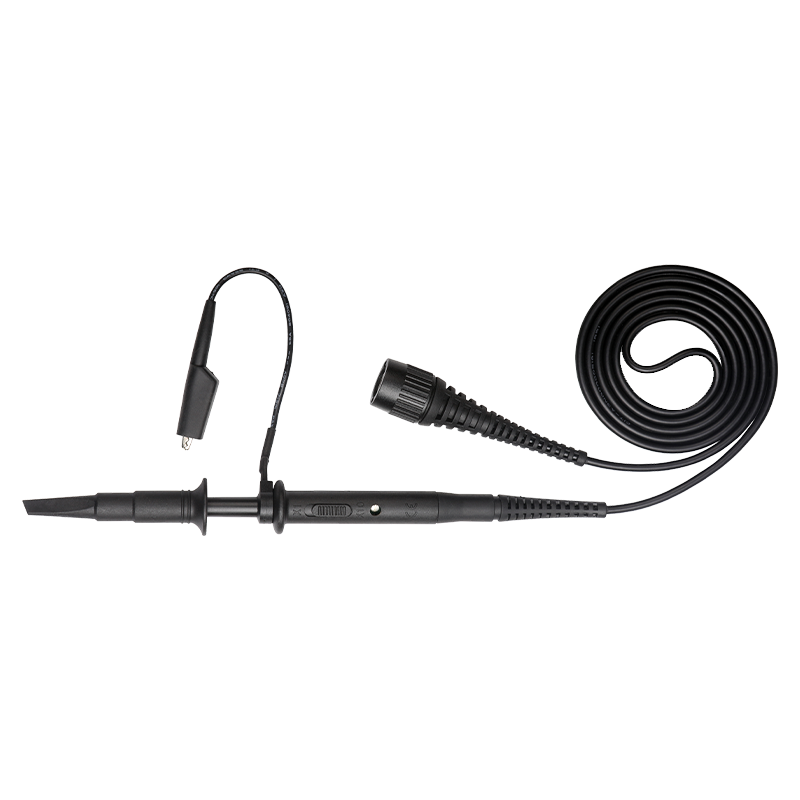

| RP1300H | 300MHzHigh voltage probe(2kV) |
| RP1018H | 18kV 150MHzHigh voltage probe |
| RP1010H | 10kV 50MHzHigh voltage probe |
Passive Probe
The RIGOL Passive Probe series provides a versatile and cost-effective solution for a wide range of daily measurement needs. These probes are designed to operate without an external power supply, making them highly portable and easy to integrate into any testing environment. With a frequency response spanning from DC up to 1.5GHz, they are ideal for both general-purpose signal analysis and specialized high-speed applications. Construction of the RP and PVP series focuses on durability and precision, ensuring accurate signal reproduction for various oscilloscope types. The high-voltage variants, such as the RP1018H and RP1010H, feature advanced insulation technology to safely measure potentials reaching as high as 18kV. This specialized construction allows for safe operation in industrial and power electronics testing scenarios where standard probes would fail. The available model range includes the 300MHz RP1300H (2kV), the 150MHz RP1018H (18kV), and the 50MHz RP1010H (10kV). Each model is tailored to specific bandwidth and voltage requirements, providing users with the flexibility to choose the right tool for their specific project. Whether you are performing routine bench testing or complex high-voltage analysis, these passive probes deliver consistent and reliable performance.Extreme Voltage Support
Safely measure high-voltage signals up to 18kV with specialized models like the RP1018H.
No External Power
Passive design ensures simple, cost-effective operation without the need for additional power supplies.
Broad Frequency Response
Capture signals across a wide range from DC up to 1.5GHz for comprehensive waveform analysis.
Diverse Model Selection
Choose from various models including the RP1300H, RP1018H, and RP1010H to match your specific requirements.
High Voltage Measurement Capabilities
The RIGOL high voltage passive probe series is engineered to safely handle extreme electrical environments. Models like the RP1018H support up to 18kV, while the RP1300H provides a 300MHz bandwidth for high-speed signal analysis at 2kV. These probes allow engineers to capture transient events and steady-state signals in power electronics without risking equipment damage.
Operational Simplicity and Versatility
These passive probes are designed for maximum convenience as they do not require an external power source to operate. This makes them an exceptionally cost-effective choice for general-purpose testing across a wide range of daily measurement tasks. From educational settings to professional R&D laboratories, the PVP and RP series offer the flexibility needed for diverse application scenarios.
