| Brand | RIGOL |
|---|---|
| Bandwidth | 800 MHz |
| Sampling Rate | 4 GSa/s |
| Channels | 4 analog + 16 digital |
| Vertical Resolution | 12-bit |

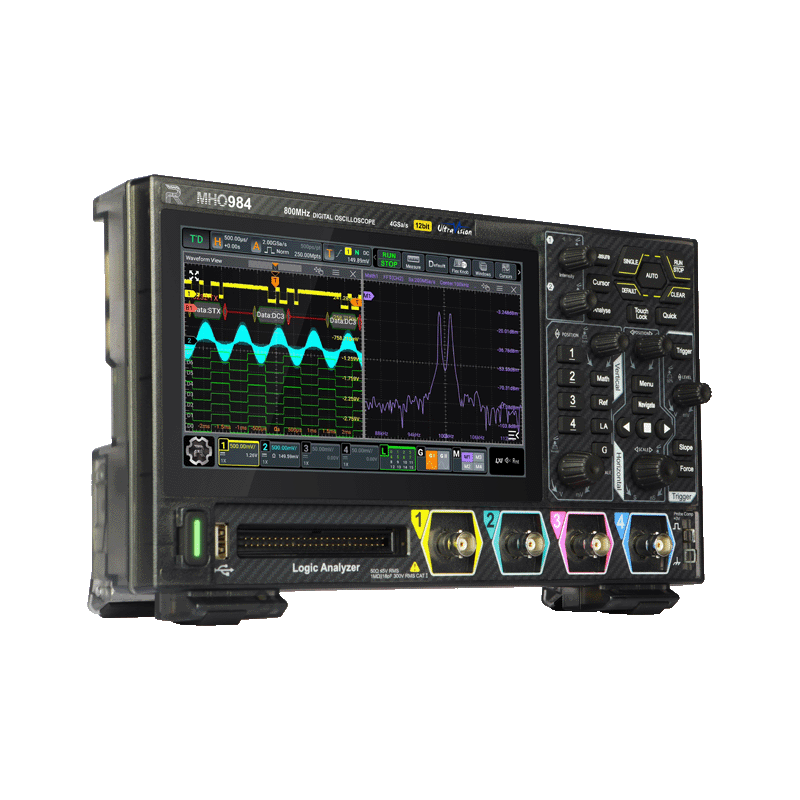

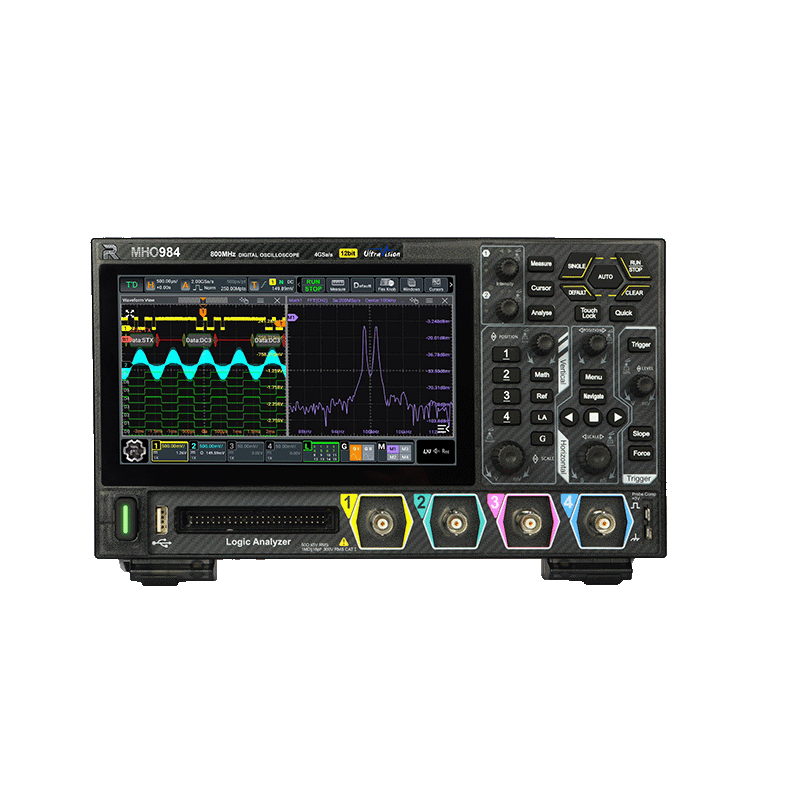

MHO900 Mixed Signal Oscilloscope
The MHO900 Series is a high-performance mixed signal oscilloscope platform from RIGOL based on the UltraVision II technology architecture. With up to 800 MHz analog bandwidth, 4 GSa/s real-time sampling, deep acquisition memory, and 12-bit vertical resolution, it provides advanced signal analysis capabilities for modern electronics development and mixed-signal debugging.
Key Specifications & Features
- Analog Bandwidth: up to 800 MHz
- Channels: 4 analog + 16 digital
- Maximum Real-time Sample Rate: up to 4 GSa/s
- Maximum Memory Depth: up to 500 Mpts
- Maximum Waveform Capture Rate: up to 1,000,000 wfms/s
- Vertical Resolution: 12-bit
- Display: 10.1-inch capacitive multi-touch screen
- Technology Platform: UltraVision II
| MHO984 | 800 MHz MSO, 4+16 Ch, 4 GSa/s, 500 Mpts Mixed Signal Oscilloscope |
| MHO954 | 500 MHz MSO, 4+16 Ch, 4 GSa/s, 500 Mpts Mixed Signal Oscilloscope |
| MHO934 | 350 MHz MSO, 4+16 Ch, 4 GSa/s, 500 Mpts Mixed Signal Oscilloscope |
MHO900 Mixed Signal Oscilloscope
ňThe RIGOL MHO900 Series is a compact mixed signal oscilloscope designed to provide advanced measurement capabilities in a portable and cost-effective platform. Based on the UltraVision II technology architecture, the instrument integrates high waveform capture performance, deep acquisition memory, and multi-touch control to support modern electronics development and debugging workflows.
With bandwidth options up to 250 MHz and real-time sampling rates up to 1 GSa/s, the MHO900 Series enables accurate observation of fast signal transitions and detailed waveform analysis. The oscilloscope supports both analog and optional digital channels, allowing engineers to analyze mixed-signal systems and embedded electronics with a single instrument.
The platform also provides high waveform capture rates and deep memory capabilities, enabling long observation windows and efficient detection of sporadic signal events. Its compact design and multi-touch interface make it suitable for laboratory, education, and field measurement environments.
UltraVision II Technology
Advanced acquisition and signal processing architecture for reliable waveform analysis.
Up to 800 MHz Bandwidth
Supports advanced signal measurement and debugging of modern electronic systems.
Mixed Signal Capability
4 analog and 16 digital channels enable comprehensive system debugging.
12-bit Vertical Resolution
Improved signal detail and measurement accuracy for complex waveform analysis.
High-Speed Signal Acquisition
The MHO900 Series supports real-time sampling rates up to 4 GSa/s and bandwidth up to 800 MHz, enabling engineers to capture fast signal transitions and analyze waveform behavior with high precision.
Integrated Mixed Signal Analysis
With four analog channels and sixteen digital channels, the oscilloscope enables simultaneous analog and digital signal debugging, making it suitable for embedded system development and complex electronic design analysis.
