| Brand | RIGOL |
|---|---|
| Bandwidth | 1 GHz |
| Sampling Rate | 4 GSa/s |
| Channels | up to 8 analog |
| Vertical Resolution | 12-bit |

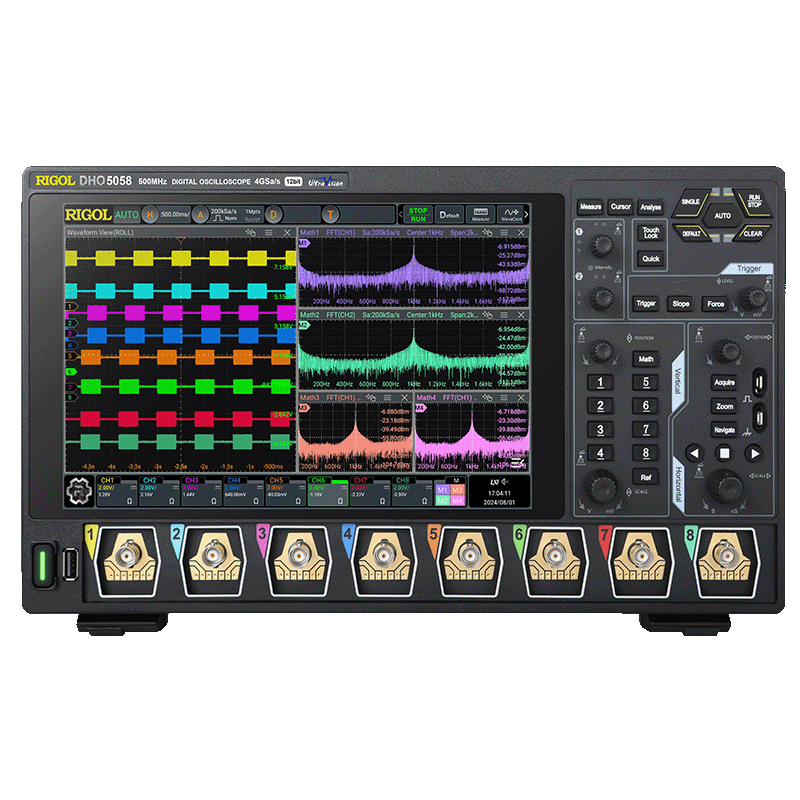

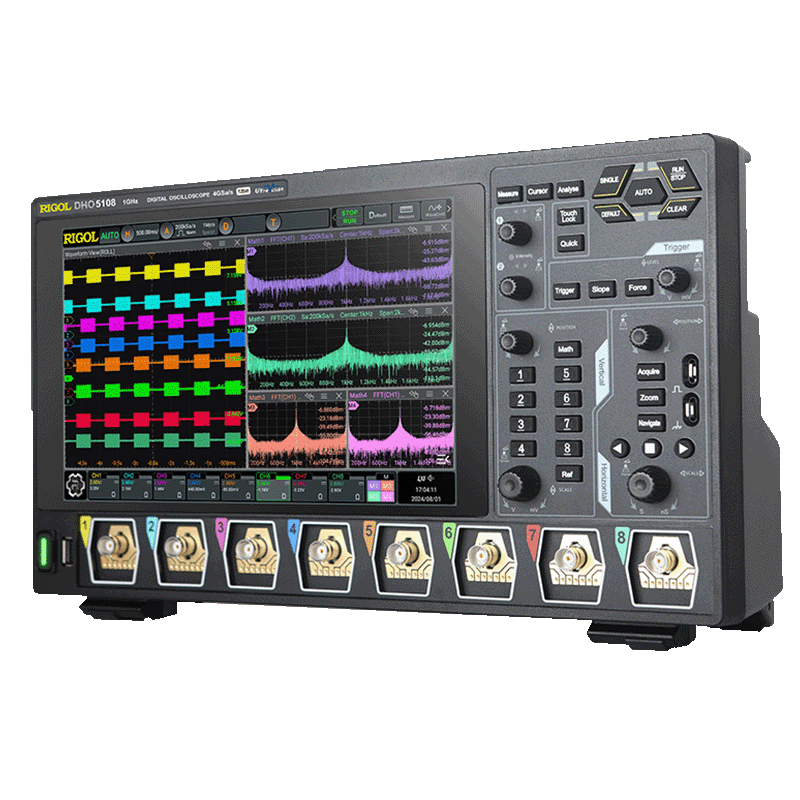

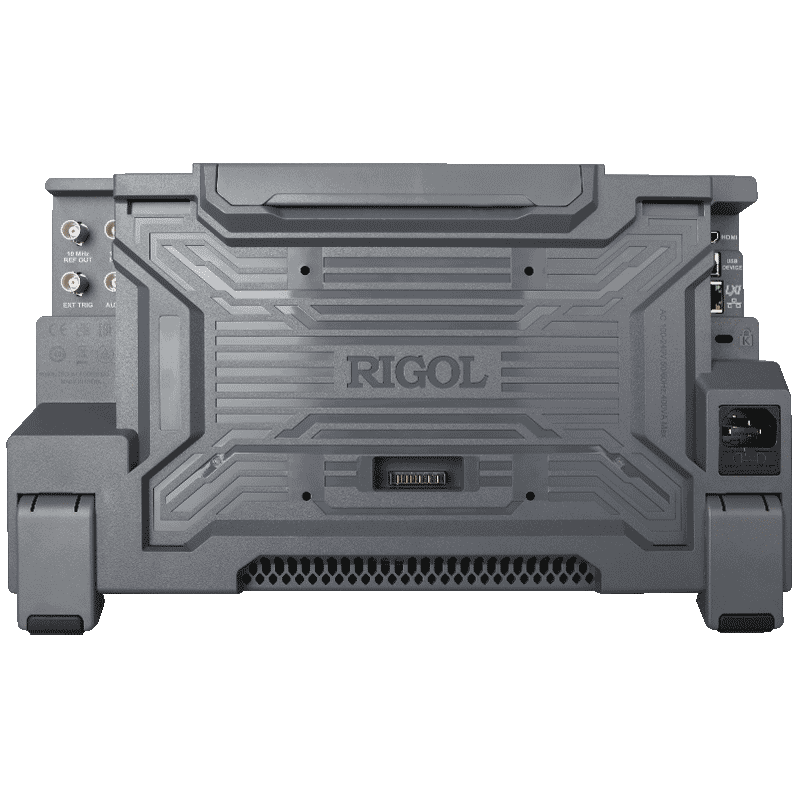

MHO/DHO5000 Digital Oscilloscope
The MHO/DHO5000 Series is a high-performance digital oscilloscope platform from RIGOL designed for advanced signal analysis and debugging. With up to 1 GHz analog bandwidth, 4 GSa/s real-time sampling, deep acquisition memory, and high waveform capture performance, it provides a powerful measurement platform for modern electronic design and mixed-signal development.
Key Specifications & Features
- Analog Bandwidth: up to 1 GHz
- Channels: up to 8 analog channels
- Maximum Real-time Sample Rate: up to 4 GSa/s
- Maximum Memory Depth: up to 500 Mpts
- Maximum Waveform Capture Rate: up to 1,000,000 wfms/s
- Mixed Signal Capability: up to 16 digital channels (MHO models)
- Optional Signal Source: dual-channel 50 MHz generator
- Technology Platform: UltraVision II
| DHO5108 | 1 GHz DSO, 8 Ch, 4 GSa/s, 500 Mpts, 1,000,000 wfms/s Digital Oscilloscope |
| MHO5106 | 1 GHz MSO, 6 Ch + 16 digital, 4 GSa/s, 500 Mpts Mixed Signal Oscilloscope |
| DHO5058 | 500 MHz DSO, 8 Ch, 4 GSa/s, 500 Mpts Digital Oscilloscope |
| MHO5056 | 500 MHz MSO, 6 Ch + 16 digital, 4 GSa/s, 500 Mpts Mixed Signal Oscilloscope |
| DHO5104 | 1 GHz DSO, 4 Ch, 4 GSa/s, 500 Mpts Digital Oscilloscope |
| DHO5054 | 500 MHz DSO, 4 Ch, 4 GSa/s, 500 Mpts Digital Oscilloscope |
| MHO5104 | 1 GHz MSO, 4 Ch + 16 digital, 4 GSa/s, 500 Mpts Mixed Signal Oscilloscope |
| MHO5054 | 500 MHz MSO, 4 Ch + 16 digital, 4 GSa/s, 500 Mpts Mixed Signal Oscilloscope |
MHO/DHO5000 Digital Oscilloscope
The RIGOL MHO/DHO5000 Series is designed to provide high-performance signal acquisition and analysis capabilities for modern electronic development environments. With bandwidth options up to 1 GHz and real-time sampling rates up to 4 GSa/s, the platform enables accurate capture and analysis of fast signal transitions. The oscilloscopes support deep acquisition memory up to 500 Mpts and waveform capture rates up to 1,000,000 waveforms per second, allowing engineers to detect rare signal anomalies and observe long waveform sequences efficiently. Mixed signal models in the MHO series also support digital channel expansion, enabling simultaneous analog and digital signal analysis for debugging complex embedded systems and communication interfaces.Up to 1 GHz Bandwidth
Supports advanced signal measurement and debugging applications.
Up to 8 Analog Channels
Multi-channel measurement capability for complex system analysis.
Deep Acquisition Memory
Up to 500 Mpts memory depth for long waveform observation.
Mixed Signal Capability
Optional digital channels enable simultaneous analog and digital debugging.
High-Speed Signal Acquisition
With real-time sampling rates up to 4 GSa/s and bandwidth up to 1 GHz, the MHO/DHO5000 Series enables accurate analysis of fast signal transitions and high-frequency waveform behavior.
Flexible Oscilloscope Platform
The series includes models with 4, 6, or 8 analog channels and optional digital analysis capability, providing flexibility for a wide range of electronic development and debugging applications.
