| Brand | RIGOL |
|---|
Differential Probe
The RIGOL Active Differential Probe series is a high-frequency measurement solution designed to capture differential and single-ended signals with exceptional accuracy. These probes offer bandwidths up to 7GHz and feature excellent common-mode rejection for precise signal integrity analysis. They provide the high-speed performance required for modern RF and digital system debugging.
Key Specifications & Features
- Bandwidth Options: 1.5GHz, 3.5GHz, and 7GHz
- Signal Support: Differential and single-ended measurements
- High Common-Mode Rejection Ratio (CMRR)
- Optimized for: RF and high-speed digital systems
- Primary Application: Signal integrity testing
- Functionality: High-speed circuit debugging
- Precision: Engineered for unmatched measurement accuracy
| PVA8700 | 7GHzActive differential probe |

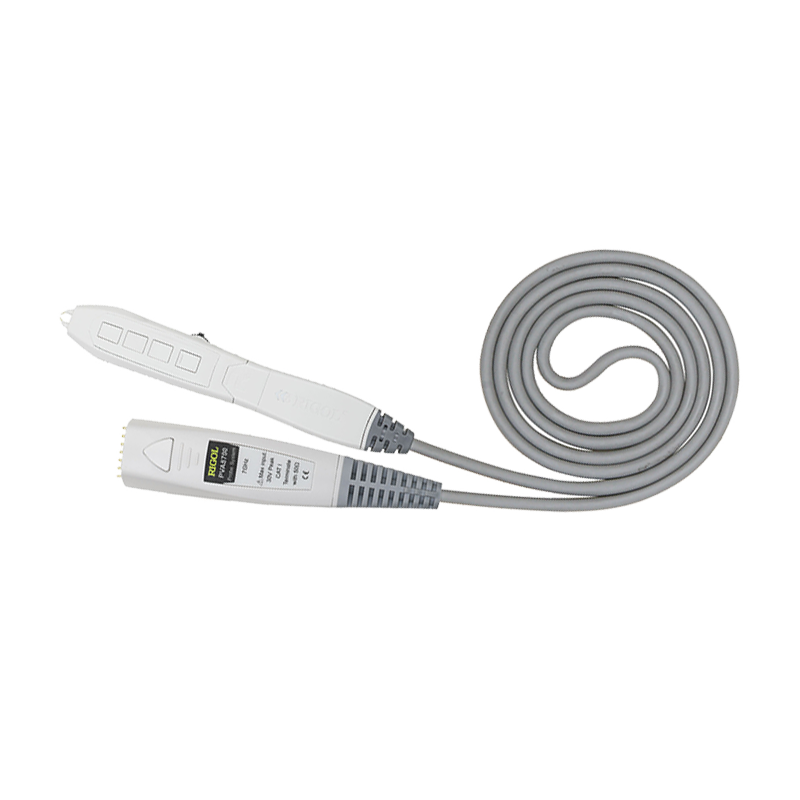

| RP7150 | 1.5GHzActive differential probe |
| PVA8350 | 3.5GHzActive differential probe |
Differential Probe
RIGOL Active Differential Probes provide a professional-grade solution for high-frequency signal analysis in demanding electronic environments. These probes are specifically engineered to handle both differential and single-ended signals, ensuring that signal integrity is maintained across various high-speed testing scenarios. By offering high bandwidth capabilities, they allow engineers to visualize fast transitions and complex waveforms with extreme clarity and minimal distortion. Built with advanced active circuitry, these probes deliver exceptional common-mode rejection to effectively eliminate unwanted noise and interference during the measurement process. This technology is vital for RF and digital system testing where precision and low circuit loading are required for accurate data acquisition. The robust construction ensures stability and reliability during critical high-speed circuit debugging and validation tasks in the lab. The series includes several high-performance models to suit different bandwidth requirements, including the PVA8700 with 7GHz, the PVA8350 with 3.5GHz, and the RP7150 with 1.5GHz bandwidth. These options provide a scalable range of performance to match specific application needs, from standard digital design to high-end communication systems. Users can select the appropriate model to ensure the best balance of speed and signal fidelity for their specific oscilloscope setup.High Bandwidth Performance
Capture fast-rising edges with bandwidth options ranging from 1.5GHz up to 7GHz.
Versatile Signal Measurement
Seamlessly measure both differential and single-ended signals with a single professional probe solution.
Superior Signal Fidelity
Ensure precise data acquisition through advanced common-mode rejection and low loading active technology.
High-Speed Debugging Tools
Accelerate the validation of RF and digital systems with professional-grade probing accuracy and reliability.
High-Frequency Signal Integrity
These active differential probes are specifically designed to maintain signal integrity in high-speed environments by minimizing circuit loading. By providing high bandwidth and fast rise times, they ensure that the waveforms captured on the oscilloscope accurately represent the real-world behavior of the device under test.
Advanced Common-Mode Rejection
The series features excellent common-mode rejection characteristics, which are essential for isolating the signal of interest from background noise. This capability makes them indispensable for debugging complex RF systems and high-speed digital circuits where signal purity and noise immunity are critical for success.
