| Brand | Teledyne LeCroy |
|---|---|
| Analog Channels | 4 |
| Bandwidth | 350 MHz – 1 GHz |
| Max Sample Rate | 10 GS/s |
| Max Memory Depth | 50 Mpts – 250 Mpts |

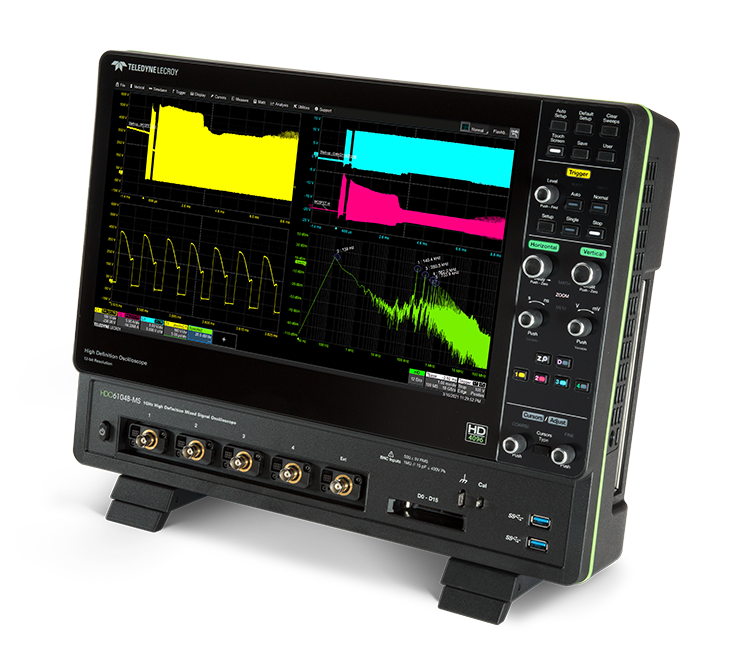

HDO6000B High Definition Oscilloscopes series
The HDO6000B High Definition Oscilloscopes series is a high-resolution oscilloscope designed to capture every detail in power system and control testing. Utilizing HD4096 technology, these units provide 12-bit resolution all the time with a 10 GS/s sample rate. This series offers a large 15.6-inch display and a compact footprint for maximum versatility in complex lab environments.
Key Specifications & Features
- Bandwidth: 350 MHz, 500 MHz, and 1 GHz models
- Vertical Resolution: 12-bit ADC (up to 15-bit with ERES)
- Channels: 4 analog channels (Mixed Signal MS models available)
- Sample Rate: 10 GS/s on all 4 channels with Enhanced Sample Rate
- Display: 15.6-inch high-definition touchscreen interface
- Power Analysis: Support for 3-phase power and harmonics software
- Applications: Optimized for inverter subsection and control testing
- Advanced Tools: Optional Zone Trigger, Spectrum Analysis, and Jitter Kits
| HDO6054B | 500 MHz, 4, 10 GS/s on 4 Ch with Enhanced Sample Rate, 12 bits; up to 15 bits with enhanced resolution (ERES) |
| HDO6054B-MS | 500 MHz, 4, 10 GS/s on 4 Ch with Enhanced Sample Rate, 12 bits; up to 15 bits with enhanced resolution (ERES) |
| HDO6104B | 1 GHz, 4, 10 GS/s on 4 Ch with Enhanced Sample Rate, 12 bits; up to 15 bits with enhanced resolution (ERES) |
| HDO6104B-MS | 1 GHz, 4, 10 GS/s on 4 Ch with Enhanced Sample Rate, 12 bits; up to 15 bits with enhanced resolution (ERES) |
| HDO6034B | 350 MHz, 4, 10 GS/s on 4 Ch with Enhanced Sample Rate, 12 bits; up to 15 bits with enhanced resolution (ERES) |
| HDO6K-ZONETRIGGER | |
| HDO6K-EMC | |
| HDO6K-XDEV | |
| HDO6K-ET-PMT | |
| HDO6K-POWER-DEVICE | |
| HDO6K-DIG-PWR-MGMT | |
| HDO6K-CLOCK-X | |
| HDO6K-CLOCK-X-PRO | |
| HDO6K-JITKIT | |
| HDO6K-DFP2 | |
| HDO6KB-AFG | |
| TF-AUTO-ENET-SMA | |
| HDO6K-Q-SCAPE | |
| HDO6K-SDAX-NRZ | |
| HDO6K-SPECTRUM-1 | |
| HDO6K-SDAX-PAM | |
| HDO6K-SPECTRUM-PRO-2R | |
| HDO6K-SDM | |
| HDO6K-VECTORLINQ | |
| HDO6K-THREEPHASEPOWER | |
| HDO6K-THREEPHASEHARMONICS< |
HDO6000B High Definition Oscilloscopes series
The HDO6000B series provides 12-bit resolution at all times, ensuring high-fidelity signal capture for demanding power and control applications. With a large 15.6-inch display and a small footprint, these oscilloscopes are engineered to provide more capability without sacrificing valuable bench space. They are specifically optimized for testing inverter subsections, power systems, and complex control circuitry. Built with HD4096 high-definition technology, the HDO6000B delivers the highest resolution and lowest noise for precise measurements. The system supports a 10 GS/s sample rate across four analog channels, with enhanced resolution (ERES) providing up to 15 bits of vertical detail. This flexible power calculation architecture allows for deep analysis and debugging of complex electronic systems with extreme accuracy. The series includes a wide range of models from the 350 MHz HDO6034B to the 1 GHz HDO6104B-MS mixed-signal version. Users can customize their units with a variety of options including Three-Phase Power Analysis, Spectrum Analysis, and specialized EMC testing tools. High-performance probes and software packages like the HDO6K-POWER-DEVICE further extend the instrument's utility for professional engineering environments.High Resolution ADC
Delivers 12-bit resolution at all times for superior signal clarity and detail.
Expansive Touch Display
Features a large 15.6-inch display for easy viewing of complex waveforms and data.
Advanced Power Analysis
Includes dedicated software for 3-phase power, harmonics, and inverter subsection testing.
Mixed Signal Capabilities
Available MS models integrate digital channels for comprehensive control system analysis.
HD4096 High Definition Technology
The HDO6000B utilizes HD4096 technology to provide 12-bit vertical resolution across all channels at all times. This technology enables the capture of fine signal details that are often lost in standard 8-bit systems, making it ideal for high-precision power and control system debugging.
Comprehensive Power System Analysis
Equipped with specialized 3-phase power analysis software, this series is designed for deep investigation of inverter subsections and power systems. It supports flexible power calculations and harmonics testing to ensure compliance and efficiency in sophisticated power electronics designs.
Request for quote
Looking for a custom solution or a tailored offer? Please fill out the form below, and we’ll get back to you as soon as possible with a personalized quote.
