Current Probe

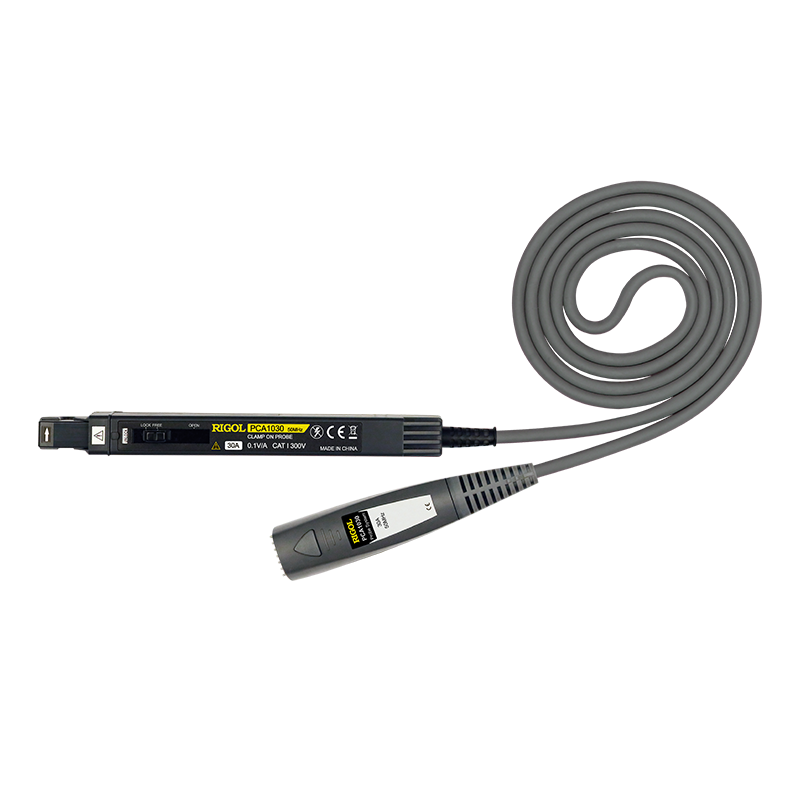

The RIGOL Current Probe series is a high-precision measurement solution designed to capture both DC and AC signals without circuit interruption. These probes feature bandwidths up to 100 MHz and current handling capabilities reaching 500A peak. This versatile series is essential for analyzing power supply efficiency, transient responses, and complex motor control systems.
Key Specifications & Features
- Bandwidth: DC to 100 MHz (model dependent)
- Maximum Current: Up to 500A peak handling
- Input Interface: Standard BNC for universal oscilloscope compatibility
- Technology: Combined Hall Effect and transformer sensing
- Core Design: Non-intrusive split-core clamp mechanism
- Accuracy: High sensitivity for low-level signal detection
- Applications: Power electronics, motor drives, and battery testing
- Powering: Compatible with RP1000P external power supplies
Current Probe
The RIGOL Current Probe series provides professional-grade measurement capabilities essential for modern electronic design and power conversion analysis. These active probes interface directly with oscilloscope BNC inputs, allowing engineers to visualize current waveforms in real-time alongside voltage signals. By supporting both DC and AC measurements, they are indispensable for characterising steady-state loads and high-speed switching transients in modern electronics. Built with advanced Hall Effect and transformer technology, these probes ensure high accuracy and low noise across a wide frequency spectrum. The split-core construction allows for easy attachment to conductors without breaking the circuit, maintaining safety and signal integrity during critical testing. The rugged design and ergonomic clamp mechanism ensure long-term reliability in both high-stress laboratory and field environments. This series includes versatile models like the RP1004C, RP1005C, and RP1006C, covering a range of bandwidths from 2MHz to 100MHz and current levels up to 500A. To ensure optimal performance, these probes are typically used with the RP1000P power supply, which provides the stable voltage required for internal circuitry. Whether testing motor controllers or high-efficiency LED drivers, these probes provide the precision needed for comprehensive power analysis.Dual AC/DC Measurement
Capture both steady-state DC and high-frequency AC signals with a single high-performance probe solution.
Non-Intrusive Split Core
The clamp-on design allows for safe measurements without the need to disconnect or modify your existing wiring.
Wide Frequency Bandwidth
High-speed response times make these probes ideal for analyzing fast-switching power electronics and transients.
Universal BNC Connectivity
Connects directly to any oscilloscope or data acquisition system featuring a standard 1MΩ BNC input.
Precision Power Analysis
These current probes are engineered to deliver exceptional fidelity when measuring high-frequency switching signals in modern power supplies. Their low insertion impedance ensures that the probe does not interfere with the circuit under test, allowing for accurate efficiency calculations and thermal management studies.
Seamless Oscilloscope Integration
Featuring a standard BNC interface, these probes integrate effortlessly with RIGOL oscilloscopes and other standard test equipment. This compatibility allows users to quickly scale and offset waveforms for real-time power measurements, harmonic analysis, and troubleshooting of complex electromagnetic interference issues.
