| Brand | RIGOL |
|---|---|
| Bandwidth | 13 GHz |
| Max Memory Depth | 4 Gpts |
| Sample rate | 40 GSa/s |
| Channels | 4 |

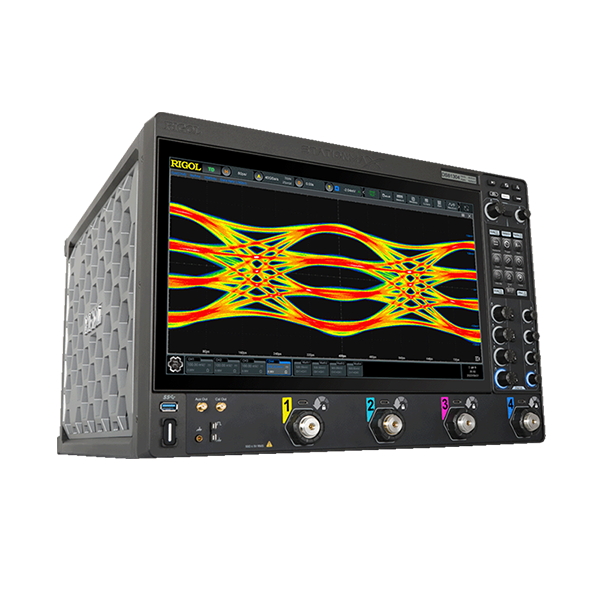

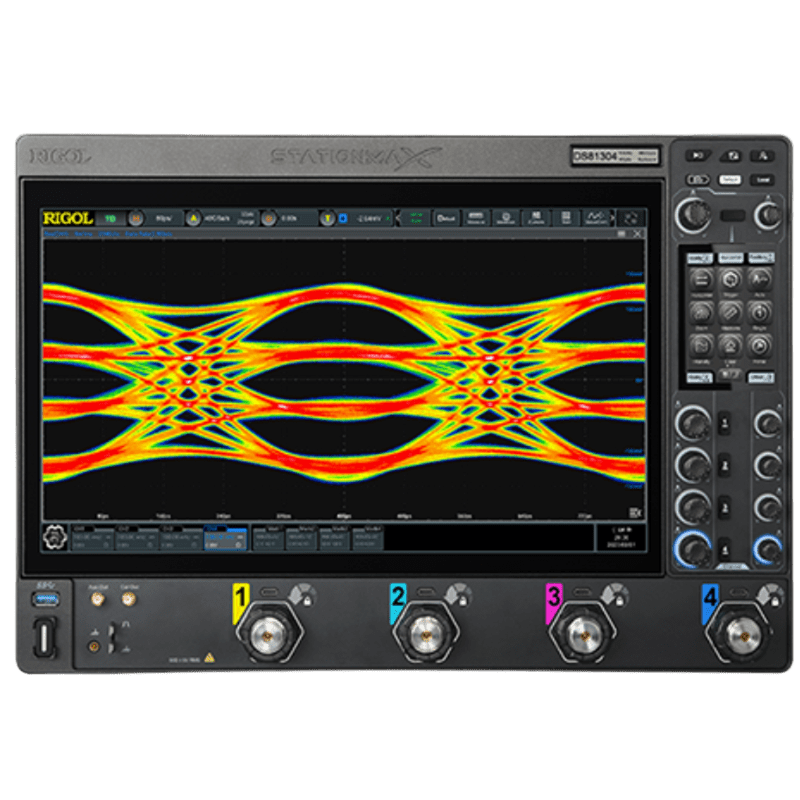

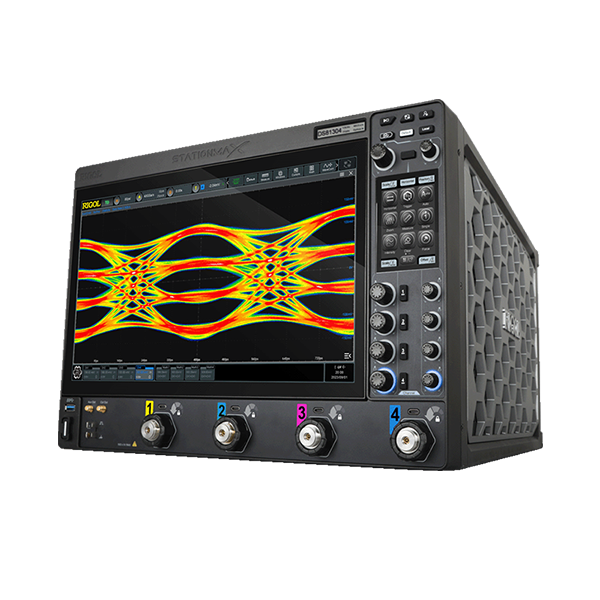

DS80000 digital oscilloscope series
The DS80000 Series is a high-performance digital oscilloscope platform developed by RIGOL for advanced high-speed signal analysis. Built on the StationMAX II architecture, it delivers up to 13 GHz analog bandwidth and 40 GSa/s real-time sampling, enabling precise capture and analysis of complex high-frequency signals.
Key Specifications & Features
- Analog Bandwidth: up to 13 GHz
- Channels: 4
- Maximum Real-time Sample Rate: 40 GSa/s
- Maximum Memory Depth: up to 4 Gpts (optional)
- Maximum Waveform Capture Rate: up to 250,000 wfms/s
- Platform: StationMAX II
- Generation: 8th generation RIGOL digital oscilloscope
| DS81304 | 13 GHz, 4 Ch, 40 GSa/s, up to 4 Gpts memory, 250,000 wfms/s Digital Oscilloscope |
| DS81004 | 10 GHz, 4 Ch, 40 GSa/s, up to 4 Gpts memory, 250,000 wfms/s Digital Oscilloscope |
| DS80804 | 8 GHz, 4 Ch, 40 GSa/s, up to 4 Gpts memory, 250,000 wfms/s Digital Oscilloscope |
| DS80604 | 6 GHz, 4 Ch, 40 GSa/s, up to 4 Gpts memory, 250,000 wfms/s Digital Oscilloscope |
| DS80000-JITTA | Jitter and Eye Diagram |
| DS80000-RLU-40 | 4G Record length Option |
| DS80000-USB3C | USB 3.0 Compliance Test |
DS80000 digital oscilloscope
The RIGOL DS80000 Series represents the eighth generation of digital oscilloscopes developed by RIGOL. Based on the StationMAX II architecture, the platform combines high bandwidth, fast sampling performance, and large memory depth to support demanding measurement applications in high-speed electronics.Ultra-High Bandwidth
Up to 13 GHz analog bandwidth for advanced high-frequency signal analysis.
40 GSa/s Sampling Performance
High real-time sampling rate enables precise capture of fast signal transitions.

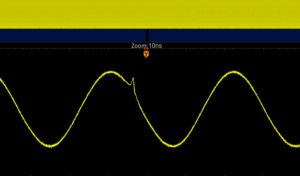

Large Memory Depth
Up to 4 Gpts memory depth for long signal acquisition and detailed analysis.
High Waveform Capture Rate
Up to 250,000 wfms/s for detecting rare signal anomalies.
With a maximum analog bandwidth of 13 GHz and a real-time sampling rate of up to 40 GSa/s, the DS80000 series enables accurate acquisition and analysis of high-frequency signals. The oscilloscope also provides a maximum waveform capture rate of 250,000 waveforms per second, helping engineers identify rare signal anomalies and transient events.
In addition to hardware performance improvements, the DS80000 series includes a range of user-focused design features intended to improve measurement efficiency and usability during development and validation tasks.
