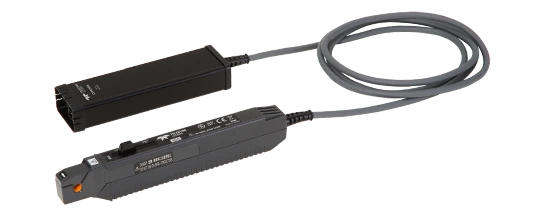

CP Series Current Probes
The Teledyne LeCroy CP Series Current Probes is a versatile range of AC/DC current probes designed to measure accurate current waveforms without breaking circuits. These probes support high-magnitude measurements up to 1000 A rms and bandwidths reaching 100 MHz. Their integrated ProBus interface ensures automatic scaling and seamless control directly from the oscilloscope UI.
Key Specifications & Features
- Max Continuous Current: Up to 1000 A rms (model dependent)
- Peak Pulse Current: Up to 1400 A
- Bandwidth Range: 1.5 MHz to 100 MHz
- Sensitivity: Down to 1 mA/div for low-current analysis
- Interface: ProBus connection for power and automatic scaling
- Functions: Remote Degauss and Autozero via oscilloscope UI
- Cable Lengths: Options for 3 meter and 6 meter leads
- Technology: Combined Hall effect and transformer technology

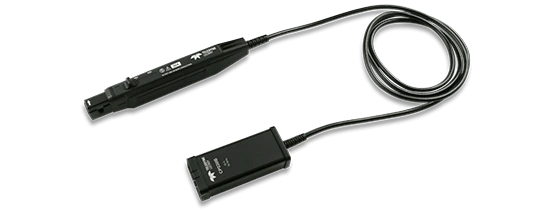

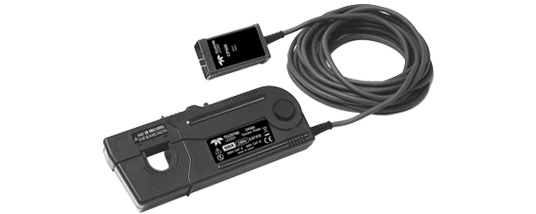

| Model | Max Current (rms) | Peak Pulse | Bandwidth | Cable | Type |
|---|---|---|---|---|---|
| CP030B | 30 A | — | 50 MHz | — | AC/DC |
| CP030B-3M | 30 A | 50 A | 10 MHz | 3 m | AC/DC |
| CP031 | 30 A | — | 100 MHz | — | AC/DC |
| CP031A | 30 A | — | 100 MHz | — | AC/DC · High Sensitivity |
| CP150B | 150 A | 500 A | 10 MHz | — | AC/DC |
| CP150B-6M | 150 A | 500 A | 5 MHz | 6 m | AC/DC |
| CP500 | 500 A | 700 A | 2 MHz | — | AC/DC |
| CP1000 | 1000 A | 1400 A | 1.5 MHz | 6 m | AC/DC |
| DCS025 | Deskew Calibration Source for Teledyne LeCroy current probes | Option | |||
| CA10 | Programmable ProBus Current Sensor Adapter for use with third party current sensors | Option | |||
CP Series Current Probes
The Teledyne LeCroy CP Series offers a versatile range of current probes designed for high-precision AC, DC, and impulse current measurements. These probes eliminate the need to break a circuit or insert a shunt, making them ideal for testing switching power supplies, motor drives, and electric vehicles. With models spanning from 30 A to 1000 A rms, the series provides the flexibility needed for both low-power electronics and heavy-duty industrial power applications. Built on a combination of Hall effect and transformer technology, these probes deliver reliable performance across a wide frequency spectrum. The integrated ProBus interface allows the oscilloscope to provide power directly to the probe, removing the requirement for external power supplies. This hardware integration also enables automatic waveform scaling in Amperes and allows users to perform Degauss and Autozero functions directly from the instrument's touch screen interface. The series includes specialized options such as the CP031A for high-sensitivity measurements and the CP1000 for high-current loads up to 1400 A peak. For users with unique requirements, the CA10 programmable adapter can incorporate third-party sensors into the ProBus environment, allowing them to be recognized as native Teledyne LeCroy probes. Additionally, the DCS025 deskew calibration source is available to ensure precise alignment between voltage and current signals for accurate power analysis.Current Sensor Adapter

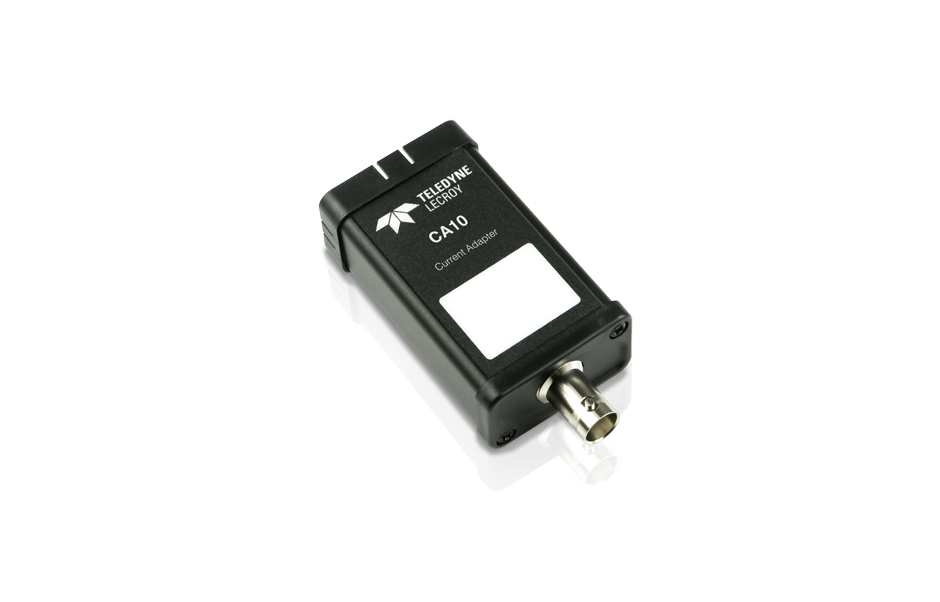

The CA10 is a programmable and customizable interface device that seamlessly incorporates third party current transducers/transformers with Teledyne LeCroy oscilloscopes or motor drive analyzers. The easy to use interface provides the ability for the CA10 to be programmed to contain the specifications of the current sensor allowing it to automatically correct for the gain or attenuation and display results in Ampere units. This allows the third party device to be recognized and operate as if it were a Teledyne LeCroy probe.High Current Capacity
Measure up to 1000 A rms and 1400 A peak for heavy-duty power electronics testing.
Wide Bandwidth Range
Choose from multiple models offering bandwidths from 1.5 MHz up to 100 MHz.
Seamless System Integration
ProBus connectivity ensures automatic scaling in Amps and simplified Degauss/Autozero control from the UI.
Deskew Calibration Support
Compatible with the DCS025 source to precisely align voltage and current probes for accurate power traces.
ProBus Integration and Automation
Teledyne LeCroy current probes utilize the ProBus connection to draw power directly from the oscilloscope without needing additional hardware. This integration allows for automatic waveform scaling in Amps and enables users to control Degauss and Autozero functions directly from the instrument’s screen.
High Sensitivity and Precision
Specialized models in this series like the CP030B and CP031A offer sensitivities as low as 1 mA/div for precise low-current measurements. When paired with high-definition oscilloscopes featuring HD4096 technology, these probes deliver 12-bit resolution for superior signal analysis and debugging.
