| Brand | RIGOL |
|---|---|
| Channels | 1–3 |
| Total Power | up to 200 W |
| Ripple & Noise | < 350 µVrms / 2 mVpp |
| Interfaces | USB, LAN, RS232, Digital IO |

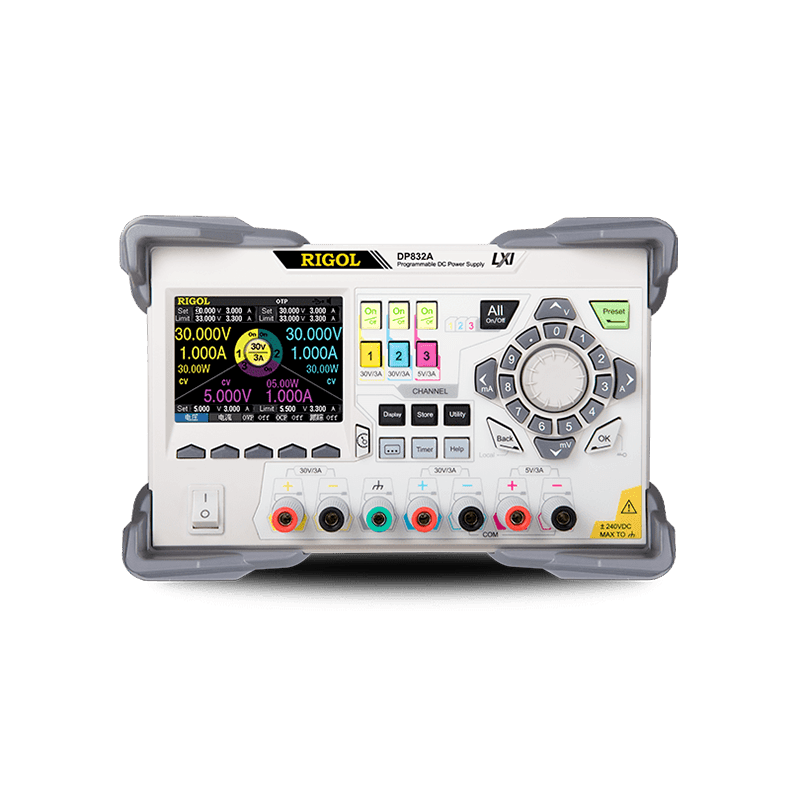

DP800 Linear DC Power Supplies
The Rigol DP800 Linear DC Power Supplies is a high-performance linear DC power supply series designed to provide versatile, low-noise power for R&D and educational labs. With a total power output of up to 200 W and ultra-low ripple of < 350 μVrms / 2 mVpp, it ensures clean power for sensitive analog circuits. This series offers exceptional flexibility with single, dual, and triple output configurations to support complex multi-rail test environments.
Key Specifications & Features
- Channels: 1, 2, or 3 independent outputs
- Total Power: Up to 200 W maximum output
- Low Ripple and Noise: < 350 μVrms / 2 mVpp
- Transient Response: < 50 μs for stable performance
- High Resolution: Up to 1mV/1mA (A-models)
- Display: 3.5-inch TFT for real-time monitoring
- Protection: Built-in OVP, OCP, and OTP
- Connectivity: Standard USB, LAN, and RS232 interfaces
| DIGITALIO-DP800 | 4 Lines Trigger In&Out |
| 10A-Testing-Cable | Banana jack to alligator clip test lead(Current rating:10A) |
| AFK-DP800 | On line monitoring and analysis |
| CB-DB9-DB9-F-F-150 | RS232 Cable, Female to Female, 150cm |
| DP821 | 140 W, Dual, 60V/1A, 8V/10A, 10mV/10mA |
| DP821A | 140 W, Dual, 60V/1A, 8V/10A, 1mV/1mA |
| DP822 | 180 W, Dual, 20V/5A, 5V/16A, 10mV/10mA |
| DP822A | 180 W, Dual, 20V/5A, 5V/16A, 1mV/1mA |
| DP831 | 160 W, Tripple, 30V/2A, 8V/5A, 10mV/1mA |
| DP831A | 165 W, Tripple, 30V/2A, 8V/5A, 1mV/0.1mA |
| DP832 | 195 W, Tripple, 30V/3A, 5V/3A, 10mV/1mA |
| DP832A | 195 W, Tripple, 30V/3A, 5V/3A, 1mV/1mA |
| DP811 | 200 W, Single (2 ranges), 20V/10A, 40V/5A, 10mV/10mA |
| DP811A | 200 W, Single (2 ranges), 20V/10A, 40V/5A, 1mV/1mA |
| DP813 | 200 W, Single (2 ranges), 8V/20A, 20V/10A, 10mV/10mA |
| DP813A | 200 W, Single (2 ranges), 8V/20A, 20V/10A, 1mV/1mA |
DP800 Linear DC Power Supplies
The Rigol DP800 Series represents a versatile family of high-performance linear DC power supplies tailored for mid-range research and development, as well as educational laboratory environments. These units deliver up to 200 W of total power across one, two, or three channels, making them ideal for powering everything from simple embedded systems to complex multi-rail analog circuits. With a focus on signal integrity, the series features exceptionally low ripple and noise specifications to ensure that sensitive components are not compromised by power-induced interference.
Constructed with a robust linear design, the DP800 series offers superior stability and a fast transient response time of less than 50 μs. The integrated 3.5-inch TFT display provides clear visualization of voltage, current, and power measurements in real-time, while advanced timer functions allow for precise output sequencing and automated testing. Users benefit from comprehensive protection features, including Over-Voltage (OVP), Over-Current (OCP), and Over-Temperature (OTP), which safeguard both the power supply and the device under test during extended operation.
The series encompasses a wide range of models, from the single-channel DP811 and DP813 units to the triple-output DP832A, with "A" designated models providing enhanced 1mV/1mA resolution. Optional upgrades like the DIGITALIO-DP800 for 4-line trigger I/O and the AFK-DP800 for online monitoring and analysis allow for further customization to meet specific testing requirements. Standard connectivity via USB, LAN, and RS232 ensures these power supplies can be easily integrated into automated test systems and remote laboratory setups.
Ultra-Low Noise Output
Delivers clean power with ripple and noise levels below 350 μVrms for sensitive electronics.
Fast Transient Response
Recovers in less than 50 μs to ensure stable performance during rapid load changes.
Comprehensive Safety Protection
Includes integrated OVP, OCP, and OTP to protect your equipment and devices under test.
Advanced Connectivity Options
Features standard USB, LAN, and RS232 for seamless integration into automated test environments.
Precision Analysis and Monitoring
The DP800 series features built-in measurement capabilities that track voltage, current, and power in real-time on a clear TFT display. With optional analysis functions like the AFK-DP800, users can perform on-line monitoring and detailed signal analysis to ensure long-term stability in critical R&D applications.
Flexible Multi-Channel Configurations
Offering up to three independent outputs, the DP800 series provides the versatility needed for modern multi-rail test setups. Models like the DP832A offer high-resolution control down to 1mV/1mA, allowing for precise characterization of low-power components and complex embedded systems.
