AGX Series Regenerative AC/DC Power Source
AGX Series Regenerative AC/DC Power Source - Image 2
AGX Series Regenerative AC/DC Power Source - Image 3

AGX Series Regenerative AC/DC Power Source

Pacific Power Source

Key Features

  • Constant power voltage range: higher current at lower voltage and higher voltage at lower current without switching ranges
  • Up to 48 A per phase (45-200 Hz), around 37% more current at lower voltage than a typical competing unit
  • 130% overload capability for 2 seconds
  • AC, DC, AC+DC and DC+AC output in six form configurations
  • Regenerative power recovery over 90%
  • Interharmonics included as standard
  • PowerFlex: order the power rating you need today and expand output later as requirements grow, without a service visit or hardware exchange
Overview & Applications
BrandPacific Power Source
Max. power (single cabinet)6-216 kVA
Frequency range (standard)15-1200 Hz
Regenerative power>90 %
Communication InterfacesRS-232, USB, Modbus, TCP, GPIB, SCPI
Constant power voltage range0-350 L-N / ±500 Vdc
ModelDescription
360AGX6 kVA, 4U.
390AGX9 kVA, 4U.
3120AGX12 kVA, 4U.
3150AGX15 kVA, 4U.
3180AGX18 kVA, 4U.
3210AGX21 kVA, 4U.
3241AGX24 kVA, 4U.
3300AGX-4UC30 kVA, 18U parallel cabinet.
3360AGX-4UC36 kVA, 18U parallel cabinet.
3481AGX-4UC48 kVA, 18U parallel cabinet.
3630AGX-4UC63 kVA, 18U parallel cabinet.
3721AGX-4UC72 kVA, 18U parallel cabinet.
3961AGX-4UC96 kVA, 32U parallel cabinet.
31050AGX-4UC105 kVA, 32U parallel cabinet.
31201AGX-4UC120 kVA, 32U parallel cabinet.
31441AGX-4UC144 kVA, 32U parallel cabinet.
31681AGX-4UC168 kVA, 42U parallel cabinet.
31921AGX-4UC192 kVA, 42U parallel cabinet.
32161AGX-4UC216 kVA, 42U parallel cabinet. Custom three-phase high-power systems up to 1.296 MVA available on request.
OptionDescription
BEMC compliance harmonics & flicker system.
WIsolated neutral wiring.

AGX Series Regenerative AC/DC Power Source

The AGX Series combines an AC/DC source, current source, and optional electronic load in a single chassis, fully programmable for all AC and DC regenerative power applications. Power density spans 6 kVA to 24 kVA per 4U chassis, up to 216 kVA in a single 19-inch cabinet, up to 432 kVA in dual paralleled cabinets, and up to 1.296 MVA in custom three-phase, high-power systems on request.

Who Is the AGX For?

Test labs and engineers in aerospace and compliance testing, EV charging/V2G/V2X, smart grid and utility grid validation, solar inverters and energy storage systems, university and research labs, and UPS/PDU testing, who need a single regenerative, bidirectional AC/DC test system.

Constant power voltage range.

The AGX offers higher current at lower voltage and higher voltage at lower current within a single constant-power range, eliminating range-switching and the output disruption it can cause.

Best-in-class current availability.

Up to 48A per phase (45-200Hz), around 37% more current at lower voltage than a typical competing unit that maxes out at 35A/phase, reducing the risk of over- or under-sizing the power source.

Most flexible output configuration.

Simultaneous AC, DC, AC+DC and DC+AC operation is available per phase/channel with automatic mode switching, in single, split, three-phase and multi-channel configurations, with full galvanic isolation.

Built-in SmartSource Suite control.

The AGX includes Pacific's SmartSource Suite platform for full remote control, development and real-time execution of test sequences through an embedded web-browser interface accessible from any device.

View Models & Options

Request for quote

Looking for a custom solution or a tailored offer? Please fill out the form below, and we’ll get back to you as soon as possible with a personalized quote.

    Other products & series

    Mi-BEAM Series — Modular Bidirectional DC Power System (12 kW – 1.2 MW)

    Ametek Programmable Power
    Power (per unit): 12.5 kW / 25 kW / 37.5 kW
    Max parallel power: 1.2 MW
    Voltage Range: 600 VDC / 1,500 VDC / 2,000 VDC

    SGX Series — Modular High-Power DC Power Supply (5 kW – 975 kW)

    Ametek Programmable Power
    Power per chassis: 5 kW – 30 kW (1–6 modules)
    Maximum system power: 975 kW (65× 15 kW in parallel)
    Voltage Range: 0–20 V to 0–1,500 V (model dependent)

    PDSB Power Distribution Switching Box

    Gustav Klein
    Configuration: 1-4 inputs / 1-4 outputs, with or without switching
    DC rating: up to 1000 V / 2000 A per variant shown
    Cabinet Dimensions: 600x800x2000 to 1200x800x2000 mm

    AZX Series Regenerative AC/DC Power Source with PHIL

    Pacific Power Source
    Max. power (single cabinet): 30-220 kVA
    AC voltage range (low/high): 0-240/415 L-N/L-L, 0-480/830 L-N/L-L Vac
    DC voltage range (low/high): 0-340, 0-680 Vdc

    DP700 Linear DC Power Supplies

    RIGOL
    Channels: 1
    Total Power: 150 W
    Voltage/Current Options: 30 V/5 A or 50 V/3 A

    i-BEAM Series — Bidirectional DC Power System (60 kW – 1.3 MW)

    Ametek Programmable Power
    Power: 60 kW – 1.3 MW
    Bidirectional Current: Up to ±2,400 A
    Energy Recovery: 96% (regenerative)

    Asterion DC Half Rack Series

    Ametek Programmable Power
    Output power: Up to 1.7 kW
    Output Voltage: 40 V to 600 V
    Output Current: 2.8 A to 42 A

    PDU Power Distribution Unit

    Gustav Klein
    Current rating: 1000-4000 A
    Cabinet Dimensions: 1000x310x1000 to 600x600x1900 mm (current-dependent)
    Protection Class: IP54

    Asterion AC Series — Programmable AC & DC Power Source

    Ametek Programmable Power
    Power: 500 VA – 18 kVA (single chassis); up to 36 kVA paralleled
    Output Voltage (DC): 0–250 VDC (low range) / 0–500 VDC (high range)
    Frequency: 16 Hz – 10 kHz

    DP800 Linear DC Power Supplies

    RIGOL
    Channels: 1–3
    Total Power: up to 200 W
    Ripple & Noise: < 350 µVrms / 2 mVpp

    TerraSAS ETS Series — Standalone Terrestrial Solar Array Simulator

    Ametek Programmable Power
    Voltage Models: ETS60 (60 Voc) / ETS80 (80 Voc) / ETS150 (150 Voc) / ETS600 (600 Voc) / ETS1000 (1,000 Voc)
    Power (per unit): 840 W (ETS60/80/150) up to 15 kW (ETS600/1000 × 3-unit)
    Bandwidth: Up to 30 kHz closed-loop

    DL3000 DC Electronic Loads

    RIGOL
    Maximum Power: 350 W
    Voltage Range: up to 150 V
    Current Range: up to 60 A

    Safety Master for Parallel Operation

    Gustav Klein
    Safety level: Performance Level d (ISO 13849-1 / EN 60204-1)
    Application: Parallel connection of 2x I-TS-3840 / 3842 / 3870
    Enclosure options: Wall-mounted (600x250x800 mm), floor-standing (800x800x2000 mm), or PDSB-integrated

    Asterion ASC Series — High-Performance AC Power Source

    Ametek Programmable Power
    Power: 4,500 VA – 36,000 VA
    Output Voltage: 0–156 VAC (low range) / 0–312 VAC (high range)
    Output Current: Up to 60 A rms/phase; iX2 doubles current below 50% voltage

    DP900 Tripple Output Linear DC Power Supplies

    RIGOL
    Channels: 3 fully isolated
    Total Power: 210 W
    Ripple & Noise: < 350 µVrms / 2 mVpp

    Capacitor Box

    Gustav Klein
    Voltage rating: 800-1100 V DC
    Capacitance: 2500-20360 uF (buffer types); 2.5-5.8 mF (local-mount MKP types)
    Housing: Plastic (IP65) or metal

    RLS Series Regenerative AC/DC Load Simulator

    Pacific Power Source
    Max. power (single cabinet): 6-216 kW
    Voltage range (constant power): 30-350 L-N / ±475 Vdc
    Frequency range (standard): 15-1200 Hz

    Tahoe Series — Precision Programmable AC & DC Source

    Ametek Programmable Power
    Power (single chassis): 15 kVA / 22.5 kVA / 30 kVA / 45 kVA / 90 kVA
    Max parallel power: Up to 1.08 MVA (12× 90 kVA)
    Output Voltage: 0–166 V and 0–333 V line-to-neutral (dual range)

    DP2000 Tripple Output Linear DC Power Supply

    RIGOL
    Channels: 3 fully isolated
    Total Power: 222 W
    Ripple & Noise: < 350 µVrms / 2 mVpp

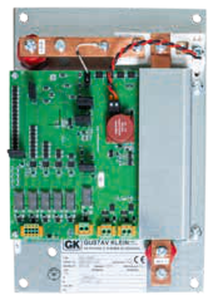

    DCU Discharge Unit
