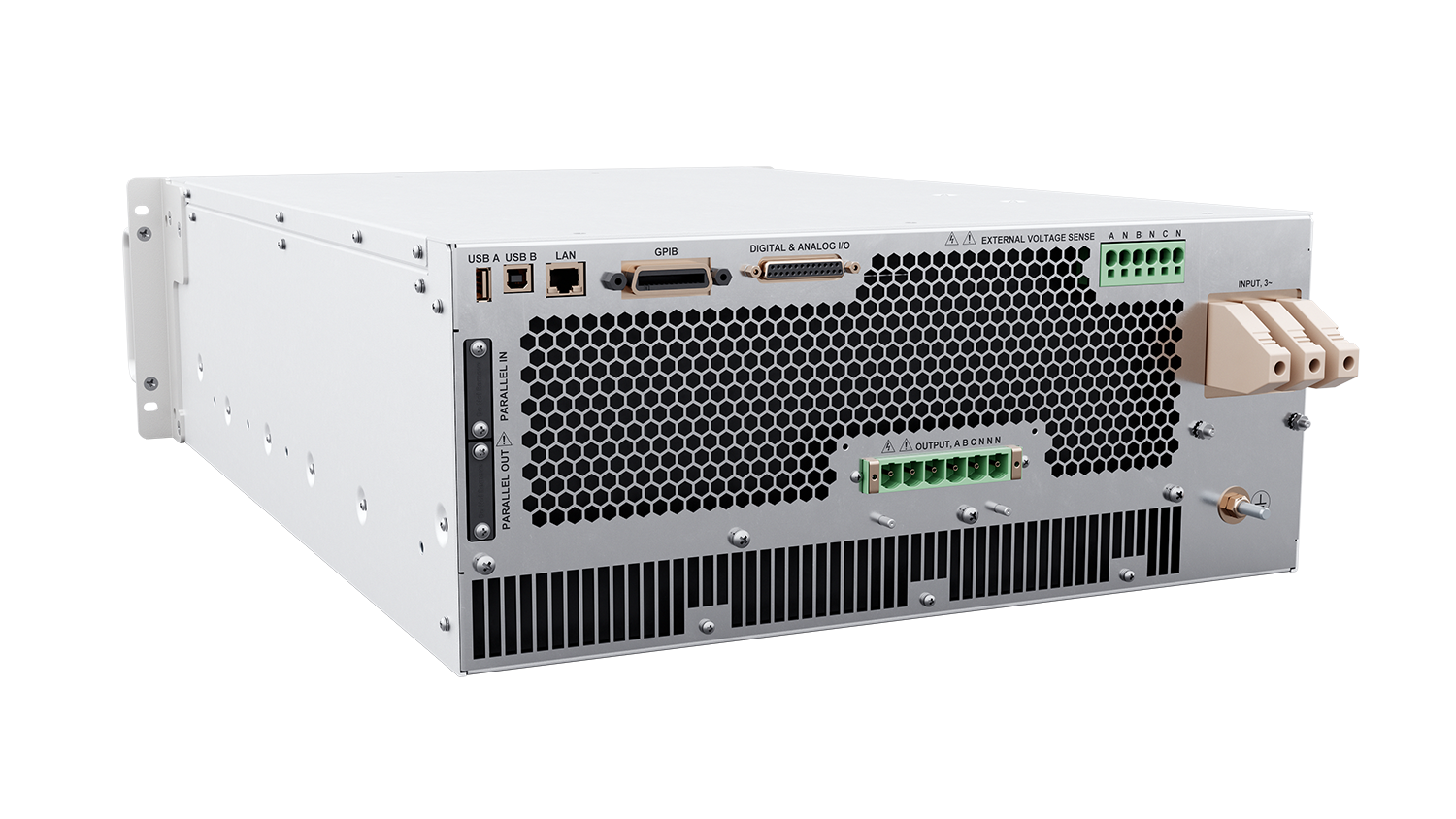

RGS Series Regenerative Grid Simulator

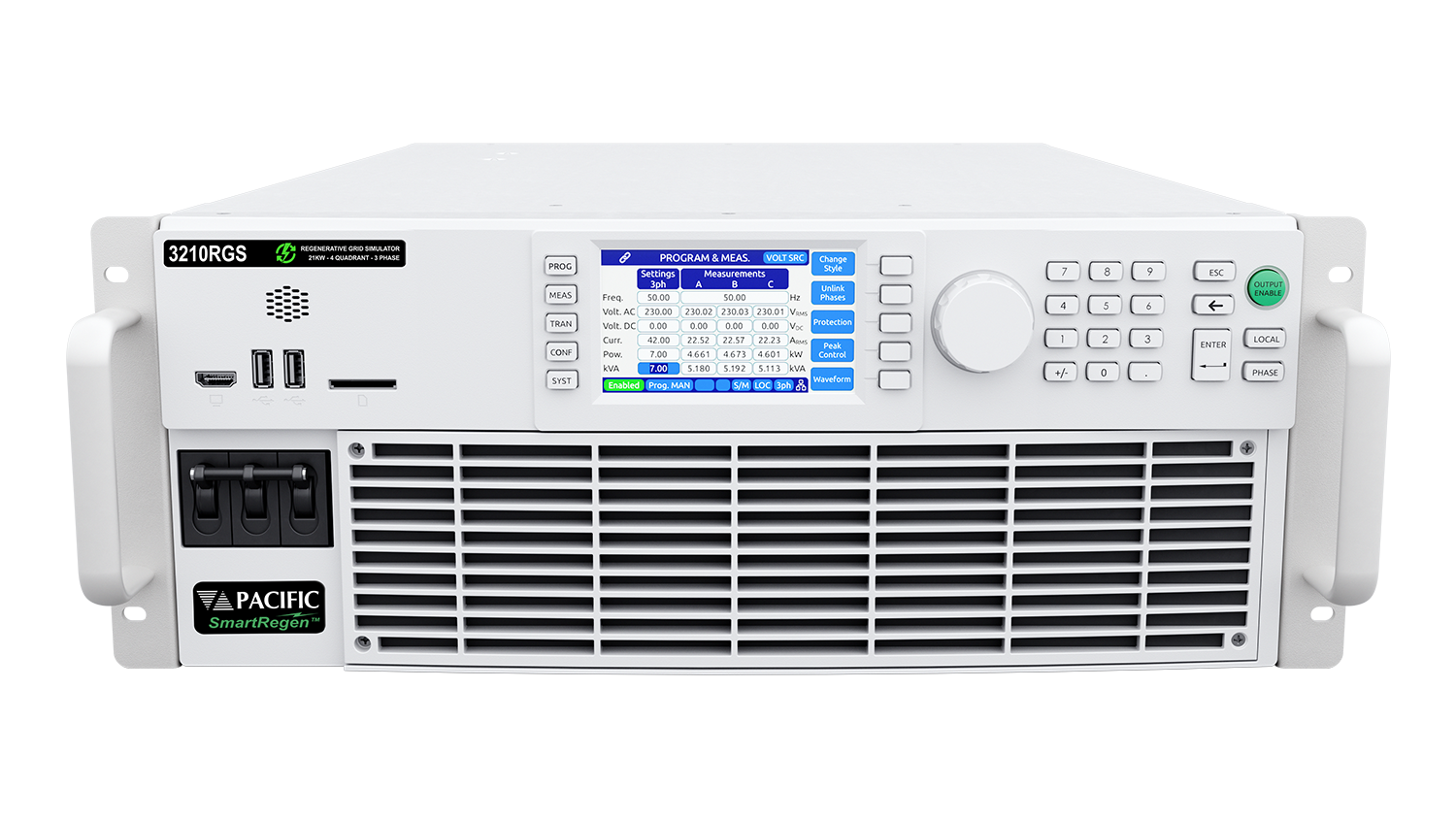

RGS Series Regenerative Grid Simulator - Image 2

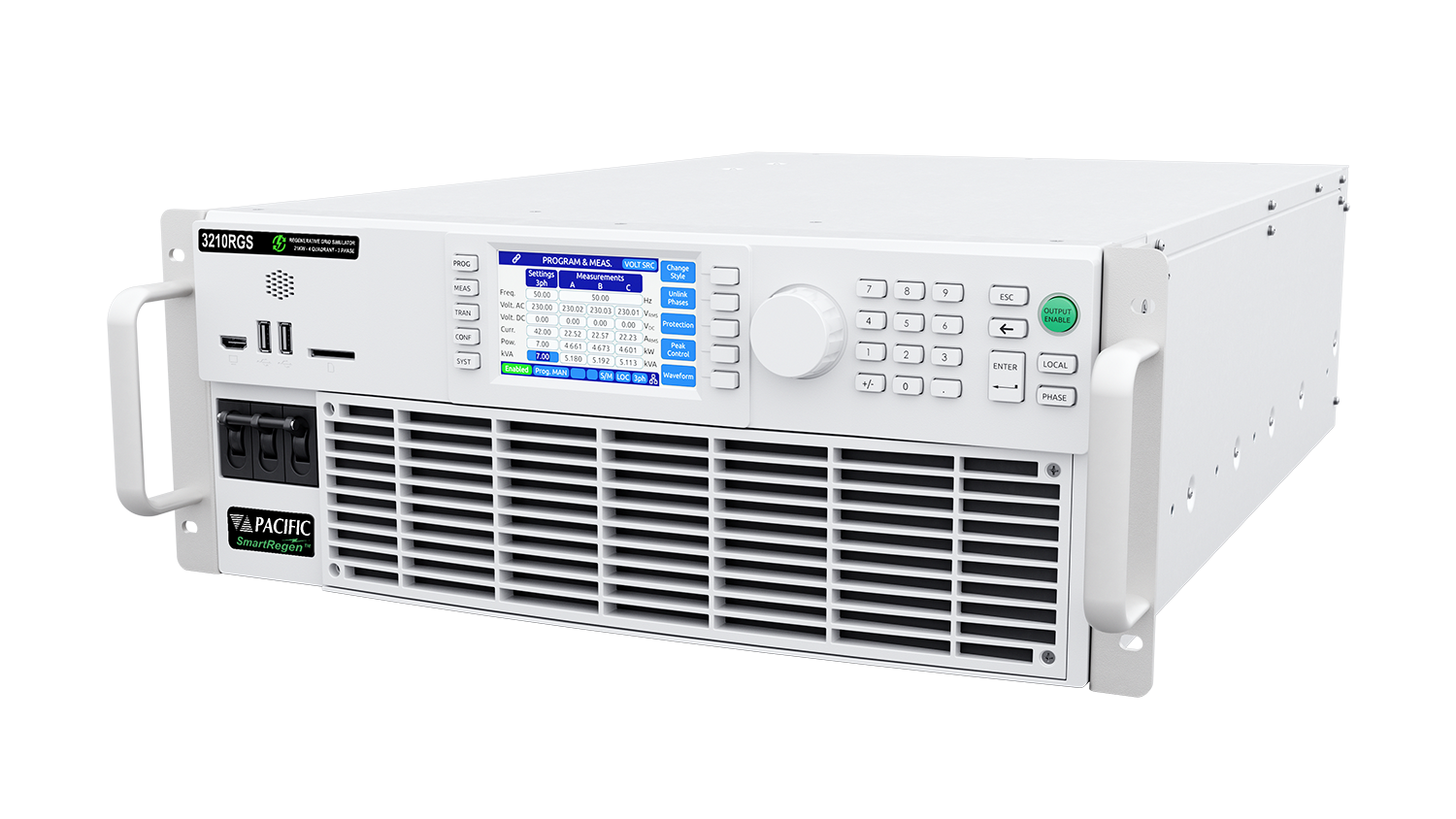

RGS Series Regenerative Grid Simulator - Image 3

RGS Series Regenerative Grid Simulator

Pacific Power Source

The RGS Series Regenerative Grid Simulator is a high-performance AC/DC power source designed to simulate utility grid conditions for testing renewable energy systems. It features a broad power range from 12 kVA to 756 kVA and a market-leading power density of 21 kW per 4U rack unit. This versatile 2-in-1 solution combines grid simulation with an optional regenerative electronic load mode for comprehensive power electronics testing.

Key Specifications & Features

  • Power Range: 12 kVA to 756 kVA
  • Voltage Output: 0–350 Vac L-N / 0–606 Vac L-L; −500 to +500 Vdc
  • Frequency Range: DC, 15–200 Hz
  • Regenerative Capability: >90% efficiency
  • Output Modes: Selectable 1-phase, 2-phase, or 3-phase
  • Power Density: Up to 21 kW per 4U chassis
  • Compliance: Ready for IEC61000-4 standard testing
  • Dual Functionality: Optional AC/DC electronic load mode
Overview & Applications
BrandPacific Power Source
Power12 kVA to 756 kVA
Voltage0–350 Vac L-N / 0–606 Vac L-L; −500 to +500 Vdc
FrequencyDC, 15–200 Hz
Output1-phase, 2-phase, 3-phase

RGS Series Regenerative Grid Simulator

  The RGS Series Regenerative Grid Simulator provides a comprehensive testing environment for grid-tied inverters, EV charging stations, and energy storage systems. With an output range spanning from 12 kVA to 756 kVA, it accommodates a wide variety of industrial and commercial power electronics applications. It supports multiple output configurations, including single-phase, split-phase, and three-phase modes, ensuring compatibility with global utility grid standards. Built with high-efficiency regenerative technology, the RGS Series returns over 90% of energy back to the utility grid, significantly reducing heat dissipation and operational costs. The system achieves a high power density of 21 kW within a compact 4U footprint, allowing for high-capacity testing setups in limited laboratory space. Its advanced design supports frequency ranges from DC up to 200 Hz and voltages up to 606 Vac L-L, making it a robust tool for rigorous R&D and production environments. Beyond standard grid simulation, the series offers an optional AC/DC electronic load function, effectively creating a 2-in-1 test platform for bidirectional power converters. The unit is fully prepared for IEC61000-4 compliance testing, facilitating the verification of voltage dips, short interruptions, and variations. Available in various scalable models, the RGS Series can be customized with specific options to meet the precise requirements of modern renewable energy infrastructure testing.

High Power Density

Delivers up to 21 kW of power in a compact 4U rack-mount chassis for space-efficient installations.

Regenerative Energy Recovery

Recycles over 90% of power back to the grid to reduce heat dissipation and operating costs.

Multi-Phase Versatility

Supports 1-phase, 2-phase, and 3-phase outputs to simulate various global grid configurations.

Compliance Test Ready

Fully equipped for IEC61000-4 standard pre-compliance and certification testing of power products.

View Models & Options

High Efficiency Regenerative Operation

The RGS Series is engineered with a regenerative design that recovers more than 90% of the energy used during testing. This capability not only reduces the overall electricity consumption of the facility but also minimizes the need for extensive cooling infrastructure. By returning power to the grid, the simulator maintains a cool operating environment even during high-power stress tests.

Versatile 2-in-1 Test Functionality

This series serves as both a grid simulator and an optional AC/DC electronic load, providing a flexible solution for testing bidirectional devices like V2G EV chargers. It allows engineers to simulate complex grid disturbances and load profiles within a single integrated system. This dual-mode capability streamlines the testing process and reduces the amount of equipment required in the lab.
