| Brand | RIGOL |
|---|---|
| Channels | 3 fully isolated |
| Total Power | 222 W |
| Ripple & Noise | < 350 µVrms / 2 mVpp |
| High-speed Arb Mode | custom waveform output |

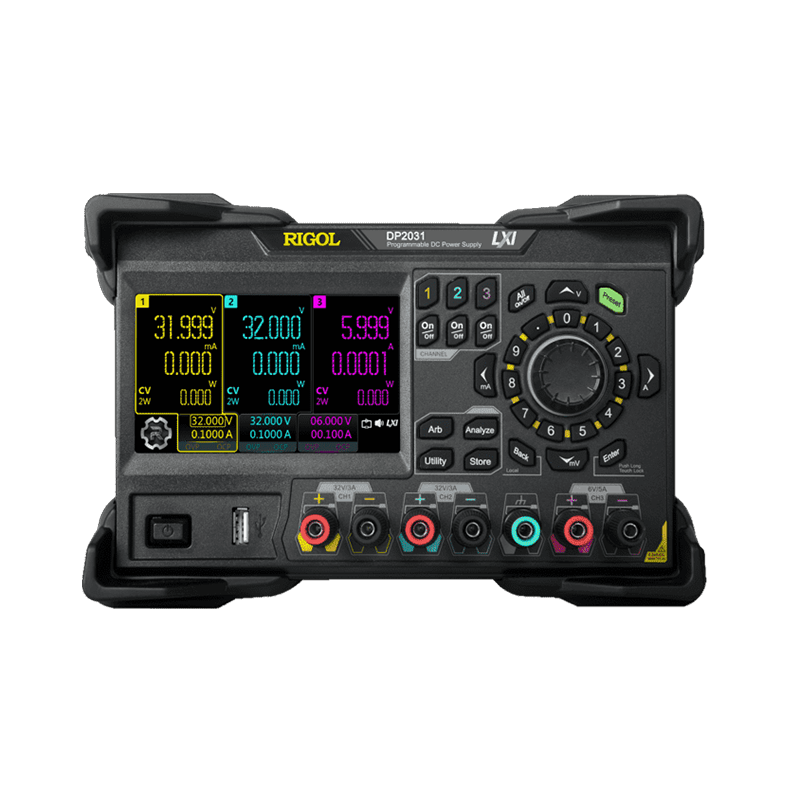

DP2000 Tripple Output Linear DC Power Supply
The Rigol DP2000 Triple Output Linear DC Power Supply is a high-performance programmable power source designed to provide precise, low-noise power for complex electronic testing. Featuring a total power of 222 W and ultra-low ripple of < 350 μVrms, this unit ensures signal integrity for sensitive components. Its versatility is highlighted by three fully isolated channels and high-speed arbitrary waveform capabilities.
Key Specifications & Features
- Total Power: 222 W total output
- Channels: 3 fully isolated outputs
- Resolution: High precision 1mV / 0.1mA
- Low Noise: Ripple and noise < 350 μVrms / 2 mVpp
- Dynamic Testing: High-speed Arb Mode for custom waveform output
- Scalability: Internal auto series/parallel reconfiguration
- Advanced Sampling: Optional 7.5k/s high-speed current sampling
- Connectivity: Standard USB, LAN, RS232, and Digital IO
| DP2000-GPIB | GPIB module option |
| DP2000-HADC | 7.5k/s current option |
| DP2000-10A | Third channel 10A option |
| DP2031 | 222 W, Tripple, 32V/3A, 6V/5A, 1mV/0.1mA |
DP2000 Triple Output Linear DC Power Supply
The Rigol DP2000 series, featuring the DP2031 model, is a sophisticated linear DC power supply engineered for precision laboratory and industrial applications. It delivers a total power output of 222 W across three fully isolated channels, providing the flexibility needed for multi-rail embedded systems and IoT device testing. With a high resolution of 1mV and 0.1mA, it allows for meticulous control and monitoring of voltage and current parameters.
This series excels in maintaining signal purity with ultra-low ripple and noise levels reaching under 350 μVrms. The inclusion of high-speed arbitrary waveform generation enables engineers to simulate complex power environments and dynamic battery cycles through custom waveform outputs. Furthermore, the internal auto series/parallel functions simplify the process of expanding voltage or current ranges without the need for complex external wiring.
The DP2000 series offers significant customization through various hardware options, such as the DP2000-HADC for 7.5k/s high-speed current sampling and the DP2000-10A for an upgraded 10A third channel. Standard communication interfaces include USB, LAN, and RS232, with an optional GPIB module available for seamless integration into automated test setups. These features make it an ideal choice for professional engineers requiring flexible and programmable power delivery.
High Precision Resolution
Features 1mV and 0.1mA resolution for extremely accurate power delivery and granular monitoring.
Triple Isolated Channels
Three independent channels allow for versatile configurations and safe testing of multi-rail systems.
High-Speed Current Sampling
The optional HADC module enables 7.5k/s current sampling for capturing fast transient behaviors in circuits.
Flexible System Integration
Standard USB, LAN, and RS232 interfaces with optional GPIB support any automated test bench setup.
Precision Output and Low Noise
The DP2000 series provides three fully isolated channels to prevent interference between circuits during multi-rail testing. Its linear design ensures ultra-low ripple and noise performance, which is critical for testing sensitive analog components and high-precision electronic devices.
Advanced Dynamic Waveform Simulation
Equipped with a high-speed Arbitrary Mode, this power supply allows users to create and output custom waveforms for dynamic stress testing. This capability is essential for simulating battery discharge cycles, power-up sequencing, and voltage fluctuations in modern embedded systems.
