| Brand | Ametek Programmable Power |
|---|---|
| Output power | Up to 1.7 kW |
| Output Voltage | 40 V to 600 V |
| Output Current | 2.8 A to 42 A |
| Operating Modes | CV, CC, CP |
Asterion DC Half Rack Series

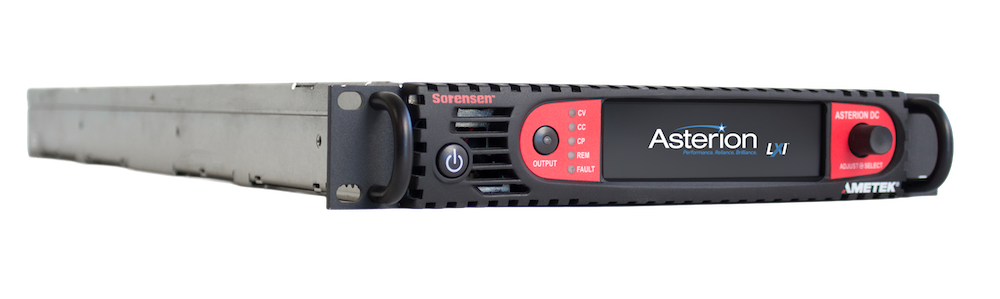

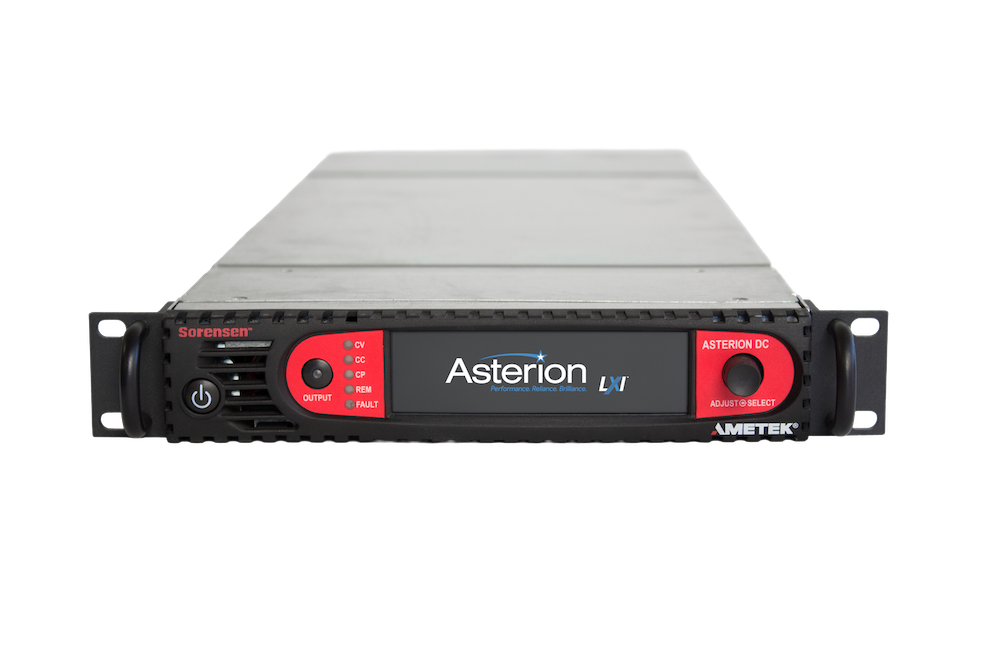

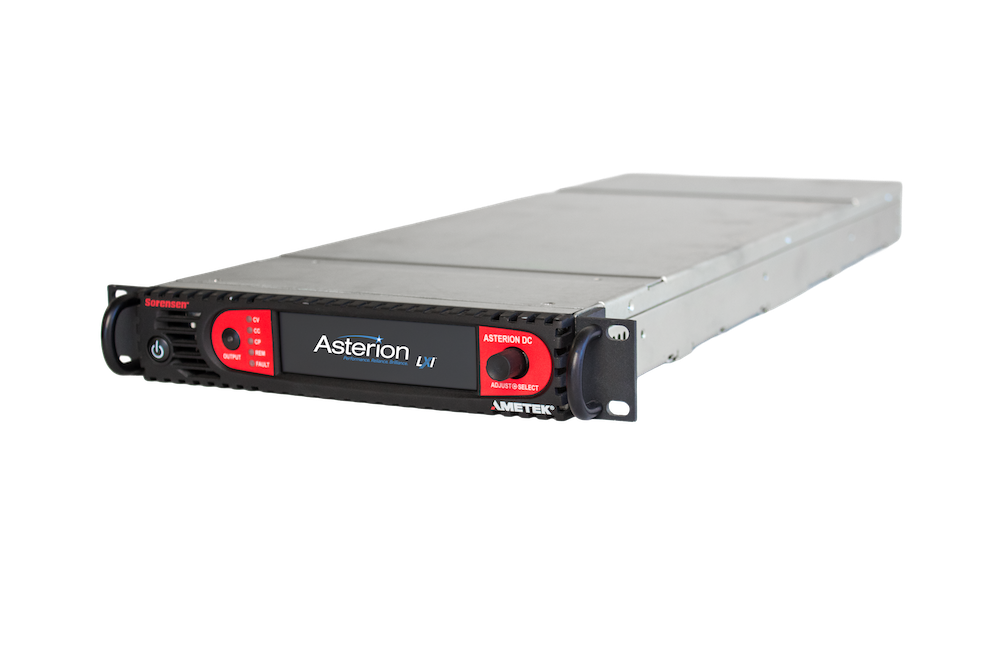

The Sorensen Asterion DC Half Rack (ASH) is a 1.7 kW programmable DC power supply in a 1U half rack chassis. With a voltage range of 40–600 V, single-phase AC input, touchscreen control, and standard LXI LAN/USB/RS-232 interfaces, it delivers full Asterion platform performance at half the rack width.
Advanced Features
• High power density up to 1.7 kW in a 1U half rack chassis
• Fixed or autoranging output models
• Intuitive touch panel control
• Multi-language display for global operation
• Auto paralleling for higher power
• Active power factor correction (PFC)
• Standard LXI LAN, USB, and RS232 interfaces
• Optional EtherCAT and GPIB interface
• Full remote control via Virtual PanelsTM
| Model | Output Voltage | Output Current | Output Power | Type | Form Factor |
|---|---|---|---|---|---|
| ASH 40-42 | 40 V | 42 A | 1,700 W | Fixed | 1U ½ Rack |
| ASH 60-28 | 60 V | 28 A | 1,700 W | Fixed | 1U ½ Rack |
| ASH 80-22 | 80 V | 22 A | 1,700 W | Fixed | 1U ½ Rack |
| ASH 100-17 | 100 V | 17 A | 1,700 W | Fixed | 1U ½ Rack |
| ASH 150-12 | 150 V | 12 A | 1,700 W | Fixed | 1U ½ Rack |
| ASH 200-8.5 | 200 V | 8.5 A | 1,700 W | Fixed | 1U ½ Rack |
| ASH 300-5.6 | 300 V | 5.6 A | 1,700 W | Fixed | 1U ½ Rack |
| ASH 400-4.3 | 400 V | 4.3 A | 1,700 W | Fixed | 1U ½ Rack |
| ASH 600-2.8 | 600 V | 2.8 A | 1,700 W | Fixed | 1U ½ Rack |
| ASH 60-42AR | 60 V | 42 A | 1,700 W | Autoranging | 1U ½ Rack |
| ASH 200-17AR | 200 V | 17 A | 1,700 W | Autoranging | 1U ½ Rack |
| ASH 400-6AR | 400 V | 6 A | 1,700 W | Autoranging | 1U ½ Rack |
Sorensen Asterion DC Half Rack Series – 1.7 kW Programmable DC Power Supply
The Sorensen Asterion DC Half Rack Series (ASH) delivers industry-leading power density in a compact 1U half rack chassis — without compromising the precision and control that engineers rely on. With up to 1.7 kW output across a voltage range of 40 V to 600 V and current from 2.8 A to 42 A, the ASH is built for demanding test environments where rack space is at a premium.
Available in both fixed range and autoranging configurations, the ASH integrates seamlessly into existing Asterion workflows. The autoranging models follow a constant-power curve, providing a wider voltage and current operating range from a single unit — reducing the number of models required across varied test scenarios.

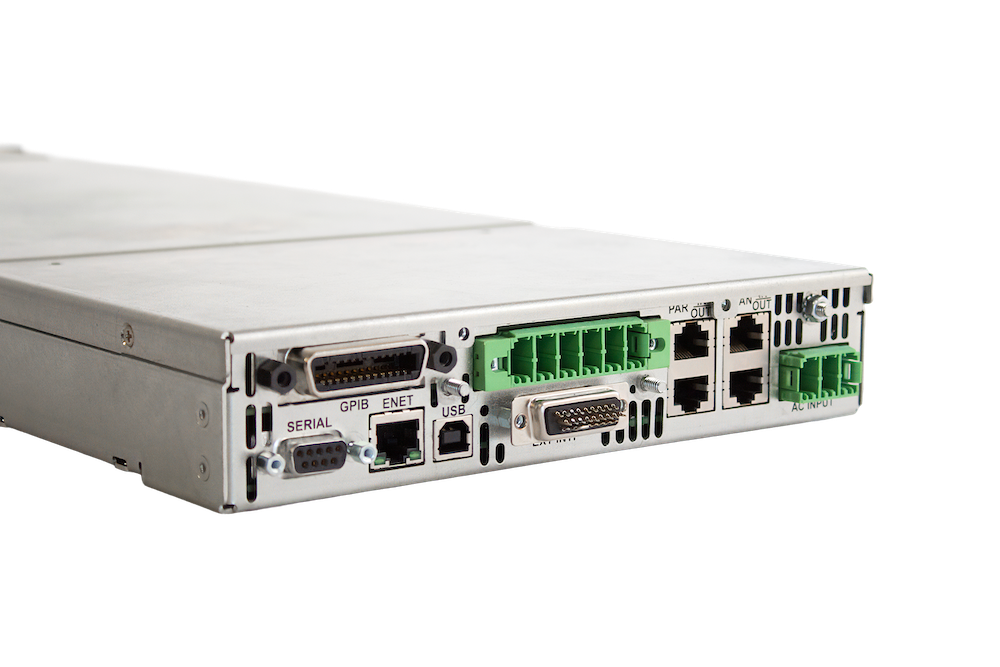

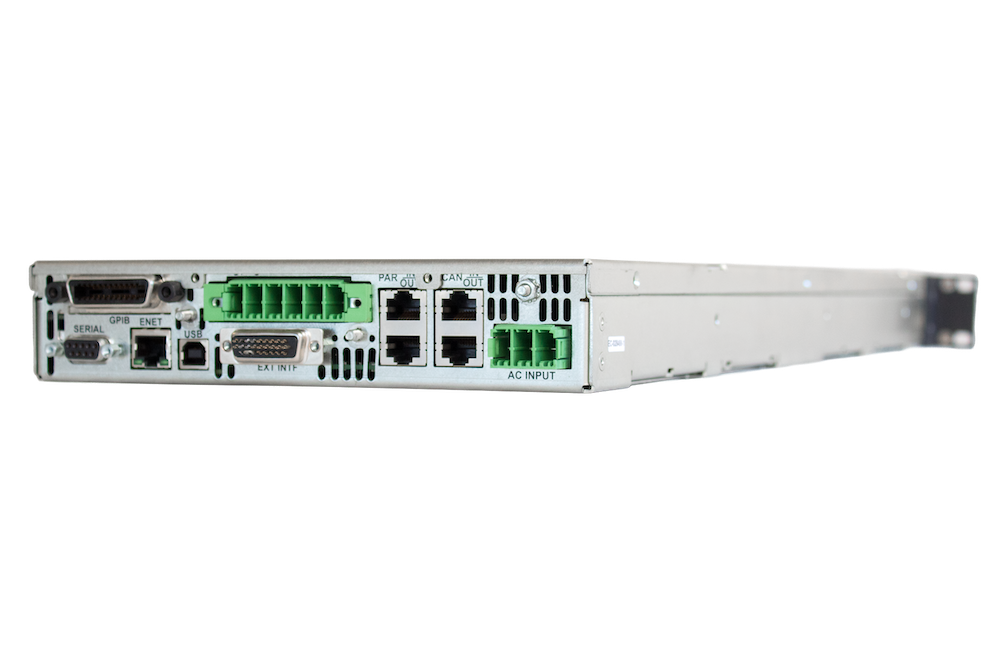

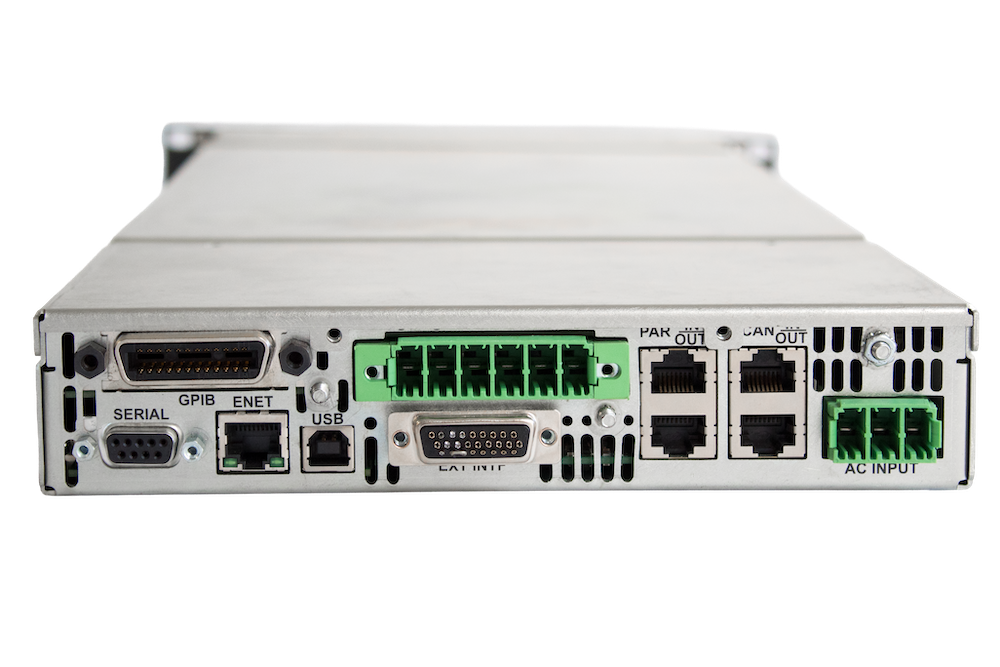

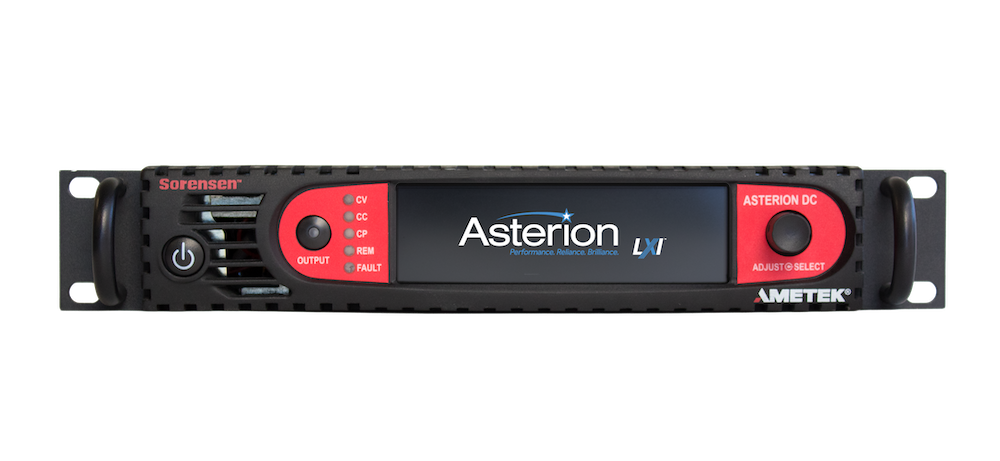

Control & Communication: The unit is DSP-controlled and can be operated via the intuitive front panel touchscreen with rotary encoder, or remotely through standard LXI LAN, USB, and RS-232 interfaces. Optional GPIB and EtherCAT are available for industrial automation and legacy ATE environments. Full remote control is supported through Asterion DC Virtual Panels — a graphical interface that replicates all front panel functions.
Rack Mounting: Two ASH units can be mounted side-by-side in a single 1U rack slot using the optional rackmount kit (5330809-01R), delivering 3.4 kW of independently controllable DC power in one rack unit. No 3-phase infrastructure required — the ASH runs on standard single-phase lab power.
Protection Features:
- Programmable overvoltage protection (OVP) up to 110% of rated voltage
- User-selectable foldback modes (CV/CC/CP)
- Overtemperature protection (OTP)
- AC input undervoltage and transient protection
Compliance: CE (EMC, LVD, RoHS), NRTL (UL/CSA), MIL-PRF-28800F Class 3, RoHS
1.7 kW in a 1U Half Rack
Industry-leading power density. Mount two units side-by-side in a single 1U rack slot for 3.4 kW of independently controlled DC output — no 3-phase wiring needed.
Fixed Range & Autoranging Models
Autoranging models follow a constant-power curve across a wider V/I operating range, reducing the number of units needed to cover varied test requirements.
Full Asterion Ecosystem
Touchscreen front panel, rotary encoder, LXI LAN, USB, RS-232 standard. Optional GPIB and EtherCAT. Full remote control via Virtual Panels GUI — same interface across the entire Asterion platform.
5-Year Warranty & MIL-SPEC Rated
Backed by a 5-year AMETEK warranty. Meets MIL-PRF-28800F Class 3 for vibration and shock. CE marked for EMC, LVD, and RoHS compliance. NRTL certified for US and Canada.
Who Is the Asterion ASH For?
The Half Rack Series is the right choice when you need Asterion-class performance without the footprint of a full-rack unit. It’s well-suited for:
- Automated test equipment (ATE) with space constraints
- High-density multi-channel rack systems
- Benchtop validation and characterization labs
- EV/battery, aerospace, 5G telecom, and semiconductor test applications
- R&D environments needing scalable, modular power
For teams already standardized on the Asterion platform, the ASH adds capacity with zero retraining. For new customers, it’s the most cost-effective entry point into the Asterion ecosystem.
Available Models
The ASH series is available in nine fixed range models (ASH 40-42 through ASH 600-2.8) and three autoranging models (ASH 60-42AR, ASH 200-17AR, ASH 400-6AR), all rated at 1,700 W output.
Accessories include a dual-unit rackmount kit (5330809-01R) and single-unit kit with blanking panel (5330809-02R). Optional certified calibration is available to ANSI Z540 and ISO 17025 standards.
