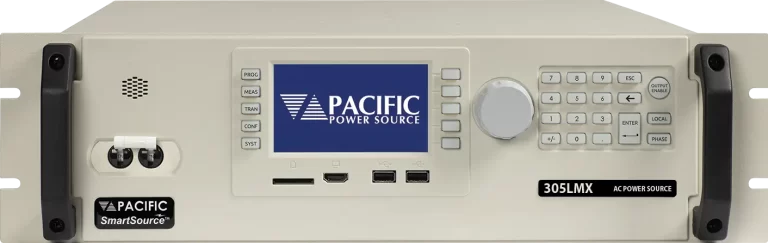

LMX Series Linear AC Power Source
LMX Series Linear AC Power Source - Image 2

LMX Series Linear AC Power Source

Pacific Power Source

Key Features

  • 6:1 peak current capability
  • Low impedance for EN 61000-3-2/-3 testing
  • Programmable output impedance (resistive and inductive), real-time and RMS modes
  • 1-phase/3-phase switch-selectable output
  • Full-power bandwidth 15-5000 Hz
  • USB, LAN (LXI), IEEE-488.2 and RS-232 with SCPI compatibility
Overview & Applications
BrandPacific Power Source
AC Power0.5-6 kVA
Output Frequency15-5000 Hz
Communication InterfacesRS-232, USB, Modbus, TCP, GPIB, SCPI, LAN (LXI)
Output distortion THD (15-450 Hz)<0.1 %
Max. output voltage, direct coupledup to 300 Vrms
Max. output voltage, transformer optionup to 600 Vrms
ModelDescription
105LMX500 VA, single-phase, direct coupled.
108LMX750 VA, single-phase, direct coupled.
112LMX1200 VA, single-phase, direct coupled.
140LMX4000 VA, single-phase, direct coupled.
160LMX6000 VA, single-phase, direct coupled.
305LMX500 VA, three-phase, direct coupled.
308LMX750 VA, three-phase, direct coupled.
312LMX1200 VA, three-phase, direct coupled.
320LMX2000 VA, three-phase, direct coupled.
345LMX4500 VA, three-phase, direct coupled.
360LMX6000 VA, three-phase, direct coupled.
105LMXT500 VA, single-phase, transformer option (up to 600 Vrms).
108LMXT750 VA, single-phase, transformer option.
140LMXT4000 VA, single-phase, transformer option.
160LMXT6000 VA, single-phase, transformer option.
305LMXT500 VA, three-phase, transformer option.
308LMXT750 VA, three-phase, transformer option.
320LMXT2000 VA, three-phase, transformer option.
345LMXT4500 VA, three-phase, transformer option.
360LMXT6000 VA, three-phase, transformer option.
OptionDescription
CInterharmonics generation.
PBParallel Bus Master Controller, for paralleled 8-30 kVA systems.
Parallel Auxiliary UnitAdditional chassis (no controller) for a paralleled LMX system.
Slide railsRack-mounting slide rails, available for all models.
Protective Transit CaseRugged transit case, available for the 3U models (105/108/112/305/308/312LMX) and the 5U 320LMX.

LMX Series Linear AC Power Source

The LMX Series linear AC power source produces low-distortion, high-fidelity output waveforms. Linear amplification reliably reproduces oscillator waveforms with very high small-signal bandwidth and low output distortion. Standard models operate from 15 Hz to 5000 Hz, range in power from 500 VA to 6 kVA (parallelable to 30 kVA), and provide nominal output voltage up to 600 Vrms L-N with the transformer option.

Who Is the LMX For?

Test engineers needing low-power frequency conversion for aerospace compliance, ATE, appliance, medical and UPS applications, where waveform fidelity and low distortion matter more than raw power.

Linear amplification for the cleanest waveform.

The LMX Series' linear-amplifier topology reliably reproduces oscillator waveforms with small-signal bandwidth up to 50 kHz and output distortion as low as 0.1% THD.

Broad frequency and voltage range in one platform.

Standard units cover the full 15 Hz-5000 Hz power bandwidth, with nominal output up to 600 Vrms L-N via the transformer option, for frequency conversion and 1-to-3-phase conversion without changing hardware.

Scalable from 500 VA to 30 kVA.

Stand-alone chassis range from 500 VA to 6 kVA; larger systems can be paralleled into 8-30 kVA multi-unit systems using the Parallel Bus Master Controller option.

Built-in SmartSource Suite remote control.

An embedded web-browser interface reachable over LAN, USB, RS-232 or GPIB/SCPI gives full remote monitoring, control and real-time test-sequence execution, backed by a 200-slot arbitrary waveform library.
