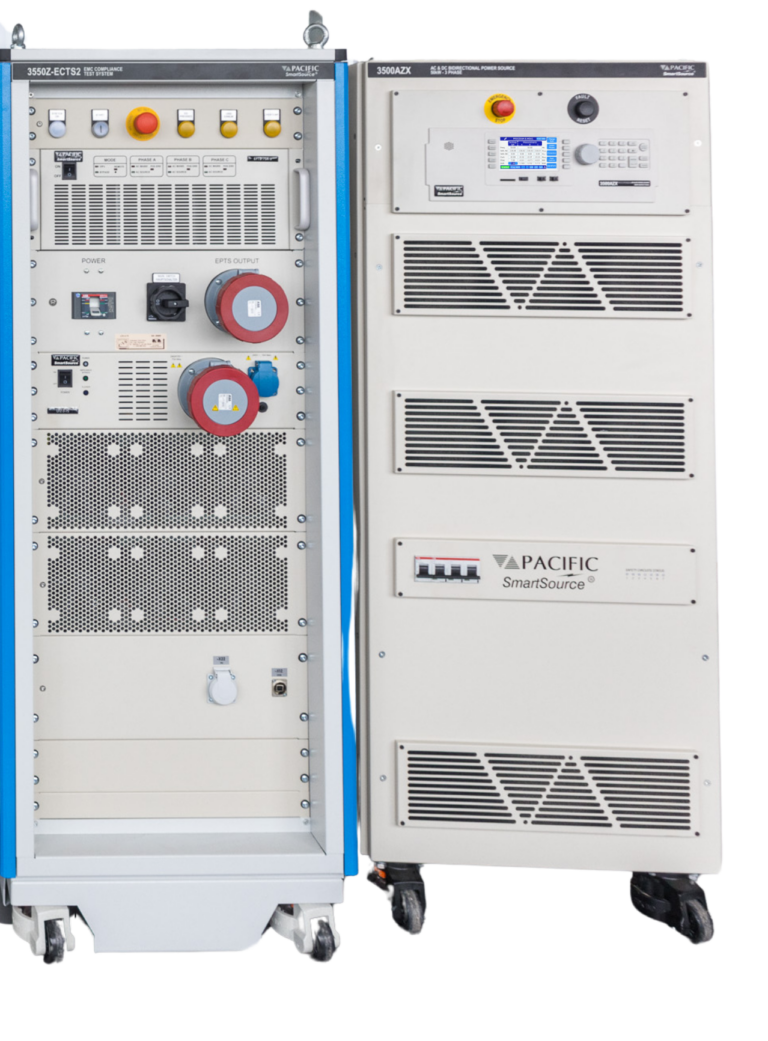

ECTS2 Series Harmonics & Flicker Test System

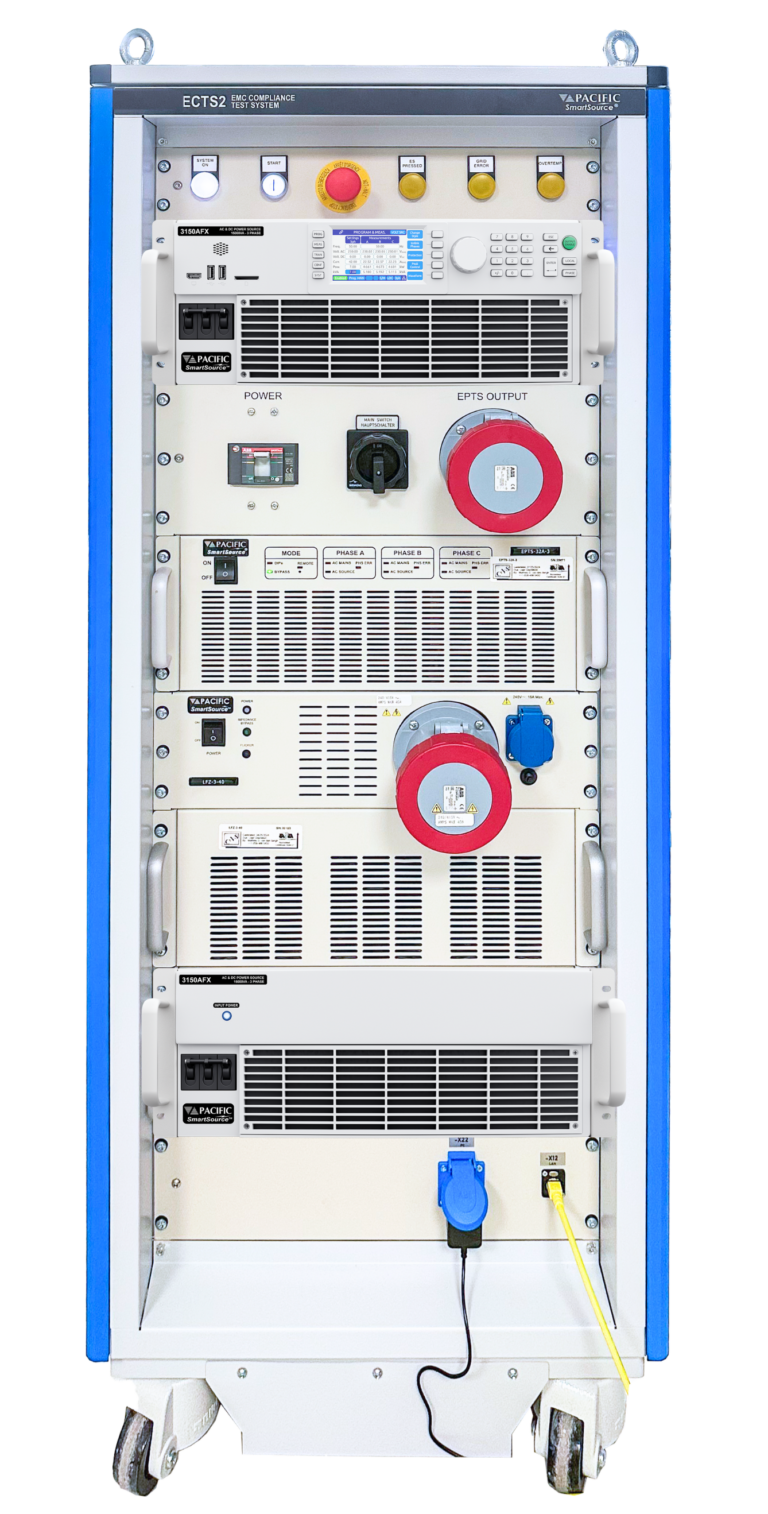

ECTS2 Series Harmonics & Flicker Test System - Image 2

ECTS2 Series Harmonics & Flicker Test System

Pacific Power Source

The ECTS2 Series Harmonics & Flicker Test System is a complete EMC compliance test system designed to evaluate harmonic current emissions and voltage flicker. This high-performance solution offers a wide power range from 750 VA to 110 kVA and supports both 1-phase and 3-phase output configurations. It provides full compliance testing to international standards including IEC 61000-3-2, -3-3, -3-11, and -3-12.

Key Specifications & Features

  • Power Range: 750 VA to 110 kVA
  • Voltage Output: 0–440 Vac L-N / 762 Vac L-L; ±650 Vdc
  • Frequency Range: DC, 15–1000 Hz
  • Phase Support: 1-phase or 3-phase operation
  • Standard Compliance: IEC 61000-3-2, -3-3, -3-11, -3-12
  • Integrated Hardware: Built-in high-precision power analyzer
  • Software: Pre-configured sequences for automated testing
Overview & Applications
BrandPacific Power Source
Power750 VA to 110 kVA
Voltage0–440 Vac L-N / 762 Vac L-L; ±650 Vdc
FrequencyDC, 15–1000 Hz
Output1-phase or 3-phase

ECTS2 Series Harmonics & Flicker Test System

  The ECTS2 Series Harmonics & Flicker Test System is a comprehensive solution for manufacturers and laboratories performing EMC compliance testing. It is specifically engineered to analyze harmonic current emissions and voltage flicker in accordance with global regulatory requirements. This system integrates high-performance power generation with sophisticated measurement capabilities to ensure accurate and repeatable results for a wide variety of electronic products. Built with advanced technology, the system features an integrated power analyzer and dedicated test software that streamlines the certification process. It supports a wide frequency range from DC up to 1000 Hz and handles voltages up to 440 Vac L-N, making it suitable for both commercial and industrial applications. The inclusion of pre-configured test sequences for standards like IEC 61000-3-2 and IEC 61000-3-12 significantly reduces setup time and minimizes the risk of user error during complex testing procedures. The series is highly scalable, offering a range of models starting from 750 VA for small devices up to 110 kVA for heavy industrial equipment. Users can select between 1-phase or 3-phase configurations to match their specific testing environment and Equipment Under Test (EUT) requirements. This flexibility, combined with its broad voltage and frequency capabilities, ensures that the ECTS2 Series remains a versatile and future-proof investment for any professional testing facility.

Wide Power Range Capacity

Supports testing from 750 VA up to 110 kVA to accommodate diverse equipment types and sizes.

Versatile Voltage Output

Provides flexible voltage options including 0–440 Vac L-N and ±650 Vdc for various global requirements.

Multi-Phase Testing Support

Configurable for both 1-phase and 3-phase output to handle a broad range of Equipment Under Test.

Automated Test Software

Includes pre-configured sequences for rapid IEC 61000-3 series harmonics and flicker compliance testing.

View Models & Options

Comprehensive Standards Compliance

The ECTS2 Series is designed to meet the rigorous demands of international EMC standards, including IEC 61000-3-2 for harmonics and IEC 61000-3-3 for flicker. By providing pre-configured sequences for both low and high current equipment, the system simplifies the path to product certification and regulatory approval.

Advanced Power Analysis Integration

Each system comes equipped with an integrated power analyzer that captures precise data across a broad frequency spectrum from 15 to 1000 Hz. This eliminates the need for external measurement hardware and ensures seamless communication between the power source and the analysis software for more efficient testing workflows.
