| Brand | MTS Systemtechnik |
|---|---|
| Frequency Range | DC-6000 MHz, model-dependent |
| Connector Type | SMA, BNC |
SWX Series Coax Relays & Semiconductor Switches
Key Features
- Electromechanical coax relays: SPDT and 2x SPDT configurations, DC to 6 GHz
- RF/video relay families (TVR, MVR, UVS) with BNC connectors, and the RU2 series of SPDT coaxial relays
- Semiconductor switches from SPDT up to SP8T, 0.1-6 GHz, for fast contact-free switching
- SMA connectors on the semiconductor switches, BNC on the RF/video relay families
| Model | Description |
|---|---|

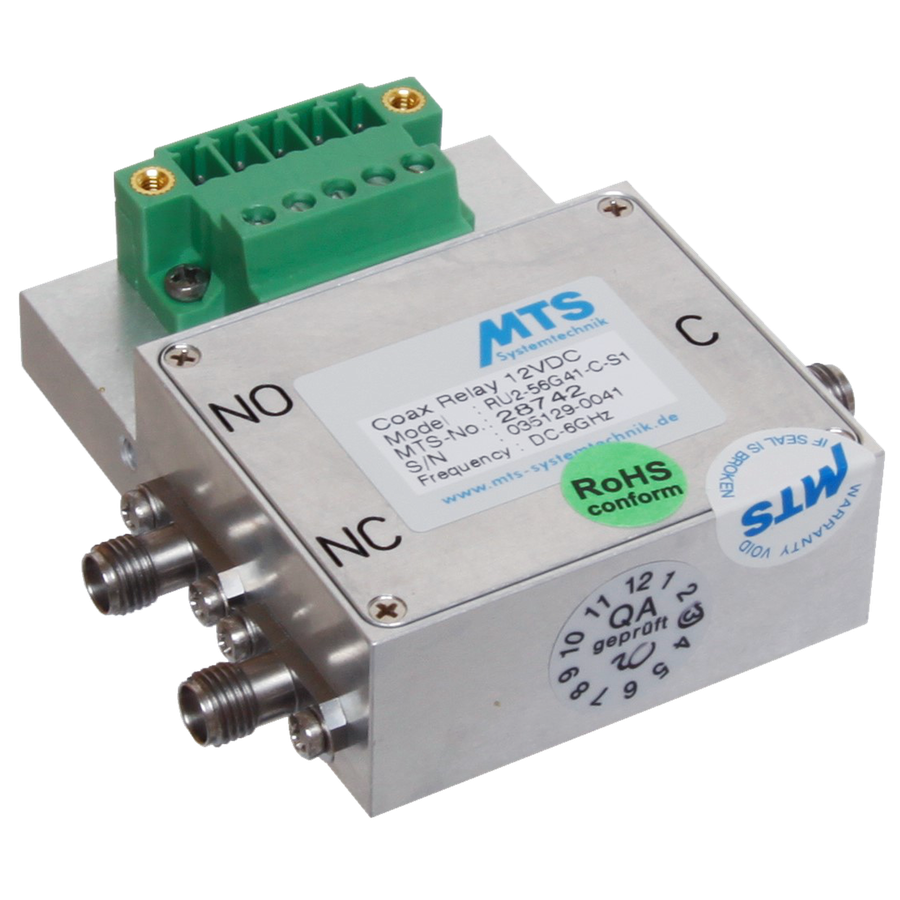

| SWX-28742 | Coax relay, 2x SPDT, DC-6 GHz – SMA. |

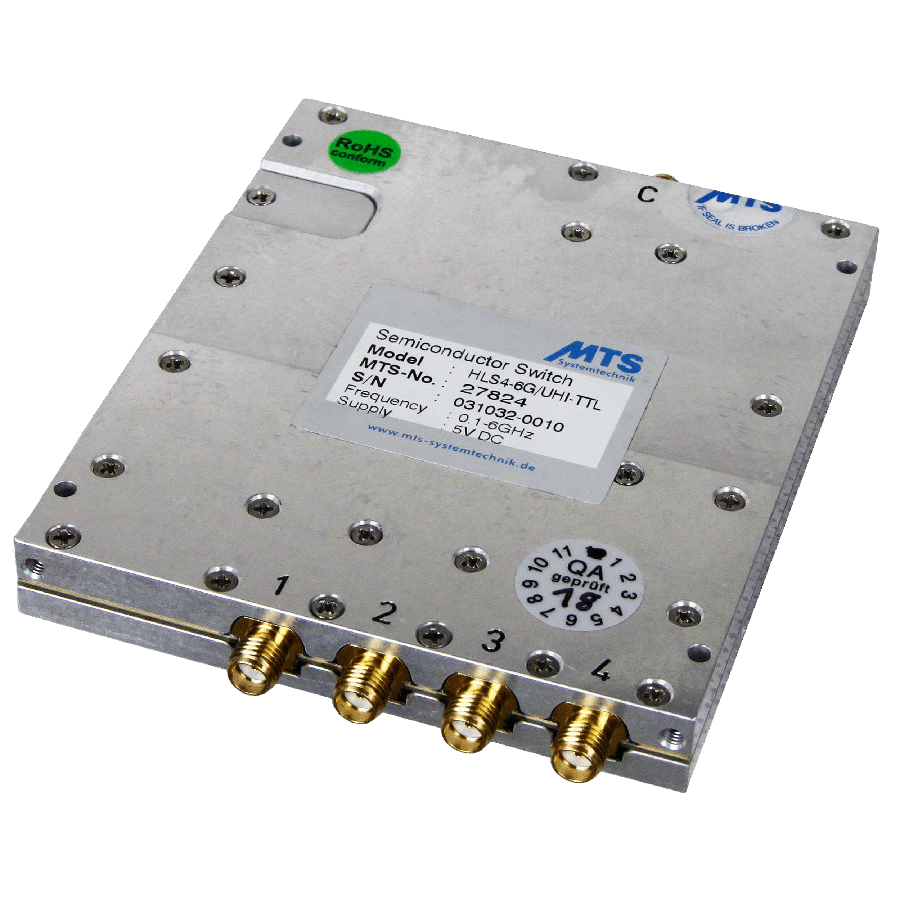

| SWX-27824-01 | Semiconductor switch, SP4T, 0.1-6 GHz – SMA. |
| SWX-27540-01 | Semiconductor switch, 0.1-6 GHz – SMA. |

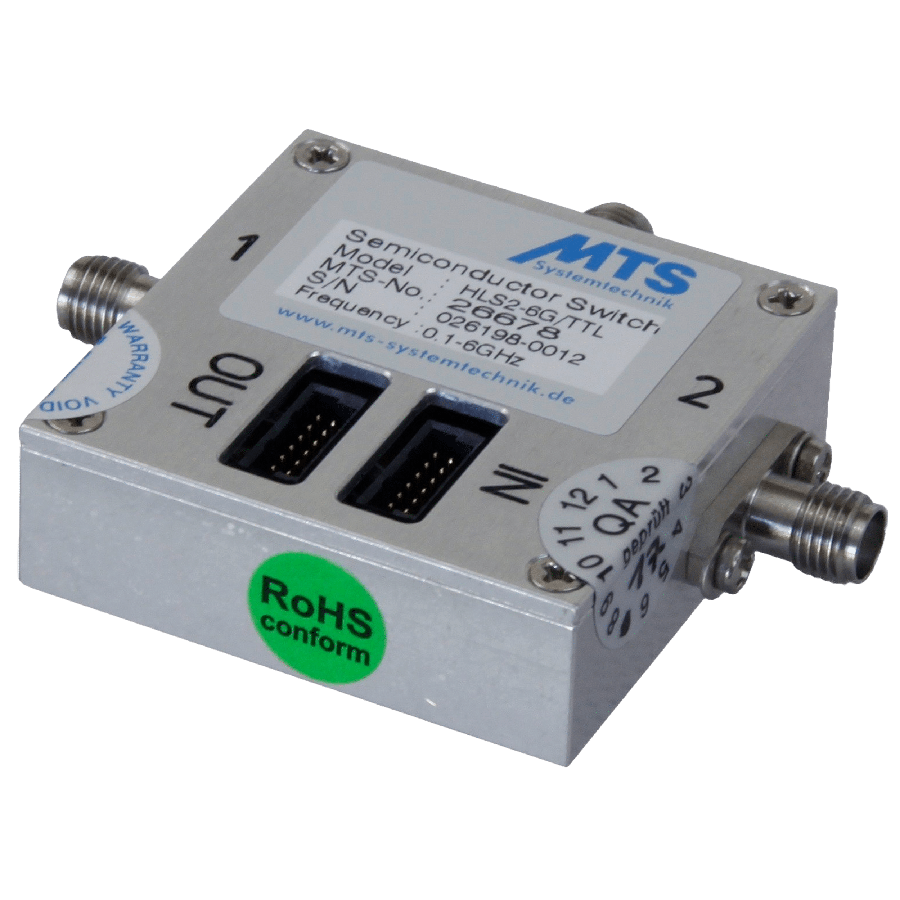

| SWX-26678 | Semiconductor switch, SPDT, 0.1-6 GHz – SMA. |

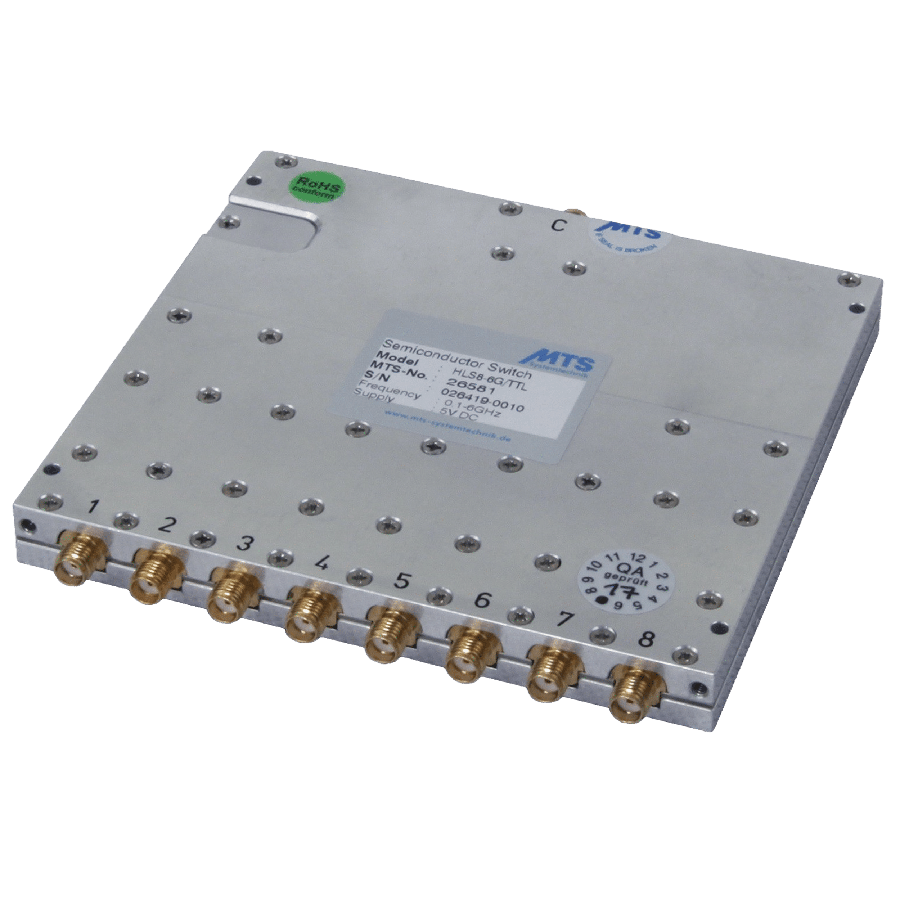

| SWX-26581 | Semiconductor switch, SP8T, 0.1-6 GHz – SMA. |

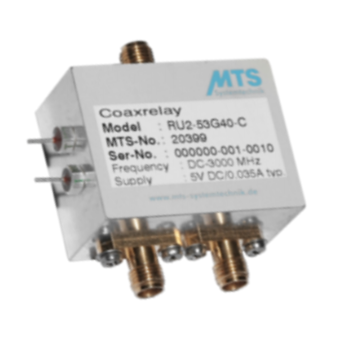

| SWX-20399 | Coax relay, SPDT, DC-3 GHz – SMA. |

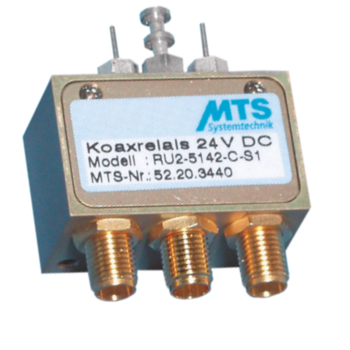

| SWX-00000-70 | RU2 series, SPDT coaxial relays. |

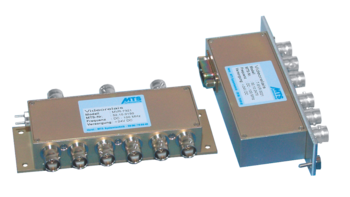

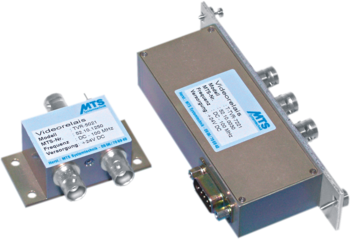

| SWX-00000-52 | RF/video relay, TVR/T-TVR series. |
| SWX-00000-51 | RF/video relay, MVR/T-MVR series. |
| SWX-00000-50 | RF/video relay, UVS/T-UVS series. |
SWX Series Coax Relays & Semiconductor Switches
MTS coax relays and semiconductor switches route RF signals between multiple paths under electrical or computer control: electromechanical coax relays (including the RF/video relay families) for high power handling and low insertion loss, and semiconductor switches (SPDT up to SP8T) for fast, contact-free switching up to 6 GHz.Who Is the SWX Series For?
Test engineers who need to route RF or video signals between multiple paths under remote or computer control, whether for fast contact-free switching or for higher power handling.Available Models & Accessories
The range covers SPDT and 2x SPDT coax relays, the RU2 SPDT coaxial relay series, the TVR/MVR/UVS RF-video relay families, and semiconductor switches from SPDT to SP8T, all DC/0.1 GHz to 6 GHz.Semiconductor switches up to SP8T.
Contact-free switching from SPDT to SP8T configurations, 0.1-6 GHz, avoids the mechanical wear and switching-cycle limits of relay-based designs.
Electromechanical coax relays for higher power handling.
SPDT and 2x SPDT coax relays, DC to 6 GHz, suit applications where a semiconductor switch's power handling is insufficient.
Dedicated RF/video relay families.
The TVR, MVR and UVS relay series, plus the RU2 SPDT coaxial relay range, cover BNC-based video and RF switching applications specifically.
Same range spans DC to 6 GHz.
Both switching technologies are available across overlapping frequency coverage, so the choice between semiconductor and electromechanical can be made on power handling and switching-cycle requirements rather than bandwidth.
