| Brand | MTS Systemtechnik |
|---|---|
| Frequency Range | 0.001-3000 MHz, model-dependent |
| Connector Type | SMA, N |

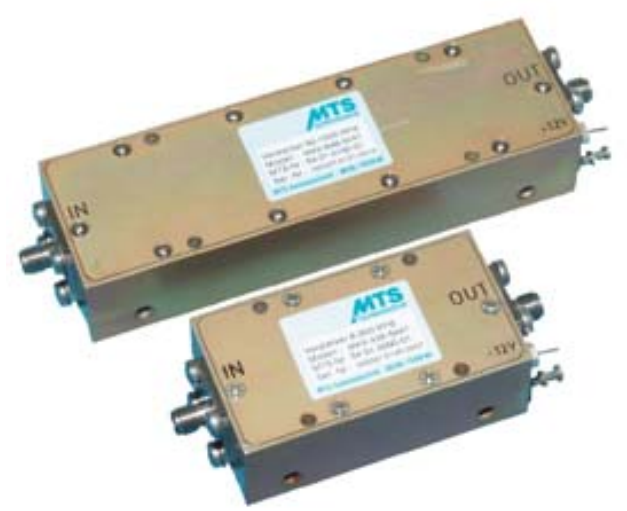

AMP Series RF Amplifiers
Key Features
- Power amplifiers for signal boosting ahead of an antenna or DUT, sub-bands from 1-500 MHz and 0.001-1 GHz
- Small-signal amplifiers for linear gain on weak signals, sub-bands from 0.001-1 GHz up to 0.05-2.2 GHz
- Antenna preamplifier (0.03-3 GHz) to compensate cable loss ahead of a receiver
- SMA connectors on power/small-signal amplifiers, N on the preamplifier
| Model | Description |
|---|---|
| AMP-18024 | Power amplifier 1-500 MHz – SMA. |
| AMP-18006 | Power amplifier 0.001-1 GHz – SMA. |
| AMP-17574 | Power amplifier 1-500 MHz – SMA. |
| AMP-14476 | Small signal amplifier 0.1-2 GHz – SMA. |
| AMP-14475 | Small signal amplifier 0.001-1 GHz – SMA. |
| AMP-00000-40 | Small signal amplifier 0.05-2.2 GHz – SMA. |
| AMP-16944 | Antenna preamplifier 0.03-3 GHz – N. |
AMP Series RF Amplifiers
MTS RF amplifiers boost signal level in a test or measurement chain: power amplifiers raise signal level ahead of an antenna or DUT, small-signal amplifiers provide linear gain for weak signals, and the antenna preamplifier compensates for cable loss ahead of a receiver, covering ranges from a few kHz up to 3 GHz depending on model.Who Is the AMP Series For?
Test engineers who need to boost signal level ahead of an antenna or DUT, amplify a weak received signal, or compensate for cable loss between an antenna and a receiver.Available Models & Accessories
The range covers two power amplifiers, three small-signal amplifiers and one antenna preamplifier, spanning sub-bands from a few kHz up to 3 GHz.Power amplifiers from kHz-range up to 500 MHz.
Two power amplifier models raise signal level for driving an antenna or DUT across sub-1 GHz frequency ranges.
Small-signal amplifiers for weak-signal gain.
Linear gain blocks cover sub-bands from 1 kHz up to 2.2 GHz, for boosting low-level signals without introducing significant distortion.
Dedicated antenna preamplifier.
The 0.03-3 GHz preamplifier compensates for cable loss between an antenna and a receiver, recovering sensitivity lost over long cable runs.
SMA throughout the amplifier range, N on the preamplifier.
Connector choice matches typical bench-test (SMA) and antenna-feed (N) usage.
