| Brand | MTS Systemtechnik |
|---|---|
| Frequency Range | DC-11000 MHz, model-dependent |
| Attenuation Range | 0-95 dB or 0-122 dB (stepped models) |
| Connector Type | N, SMA, BNC, TNC |
ATN Series RF Attenuators
Key Features
- Fixed-value attenuator pads (DGL and DGL18 series) for permanent level reduction
- Computer-controlled step attenuators, 0-95 dB or 0-122 dB in 1 dB steps, TTL/GPIB/LAN control, DC to 11 GHz depending on model
- 8-way attenuator unit for multi-channel level setting from one enclosure
- N, SMA, BNC and TNC connector variants across the range
| Model | Description |
|---|---|

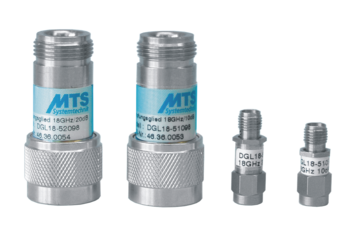

| ATN-00000-55 | Fixed value attenuator, DGL18 series. |
| ATN-00000-02 | Fixed value attenuator, DGL series. |

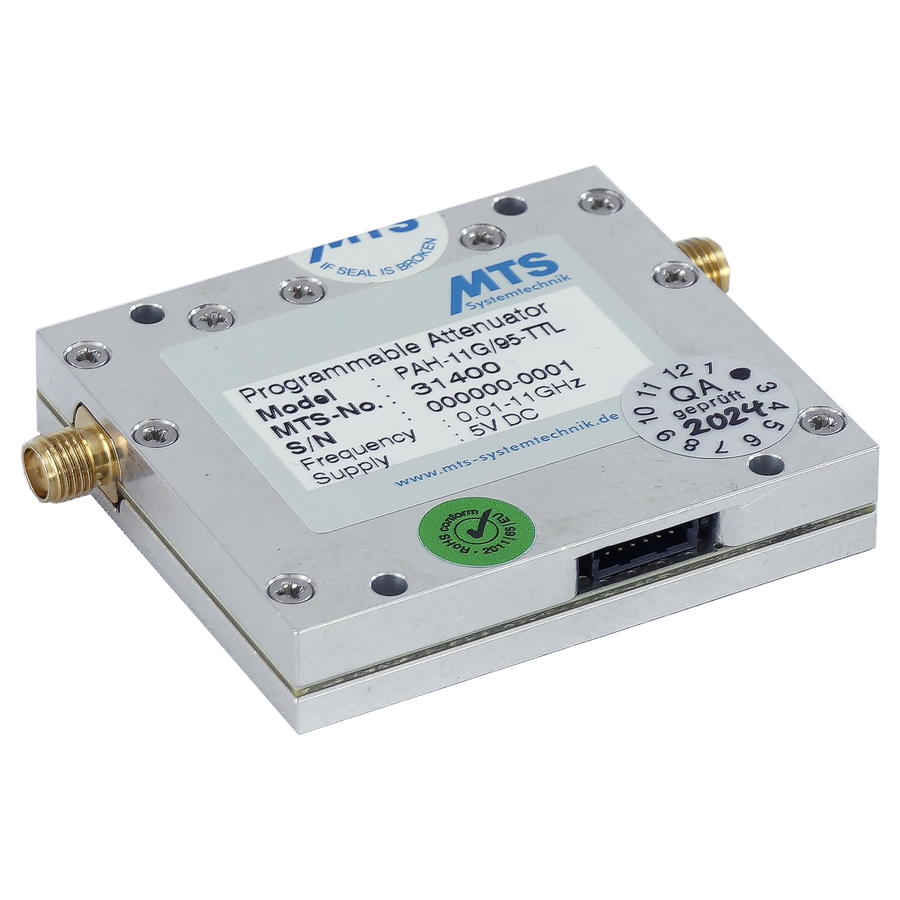

| ATN-31400 | Programmable attenuator 0.01-11 GHz, 95dB – SMA. |

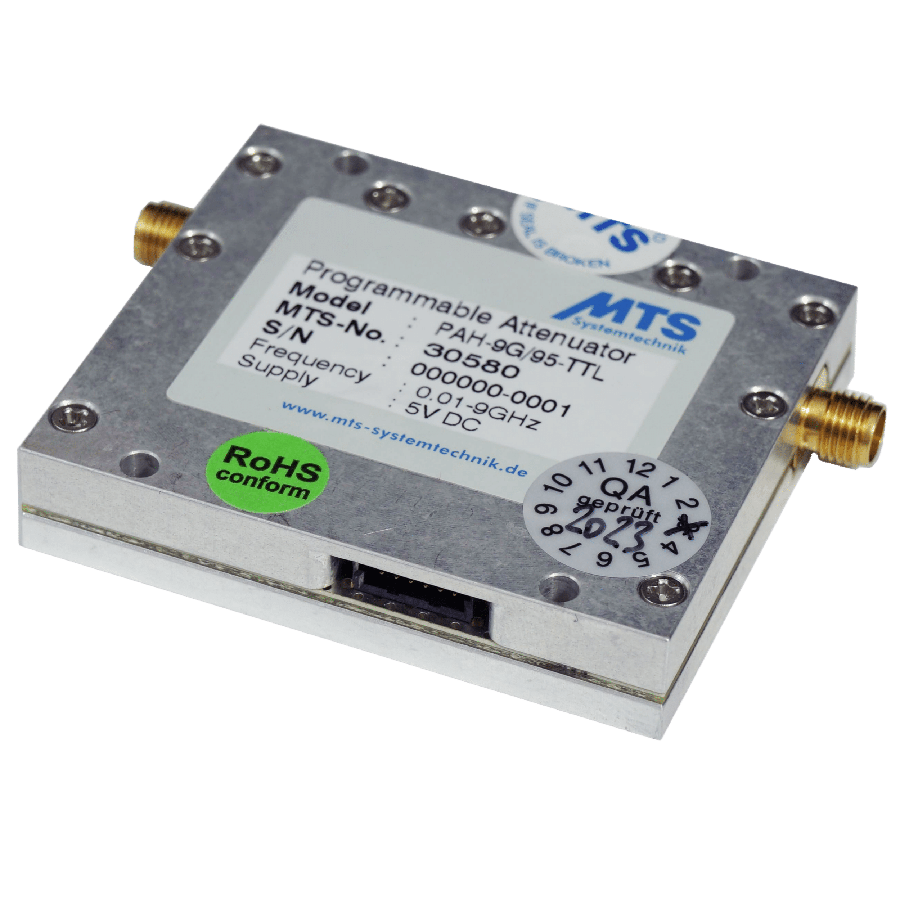

| ATN-30580 | Programmable attenuator 0.01-9 GHz, 95dB – SMA. |

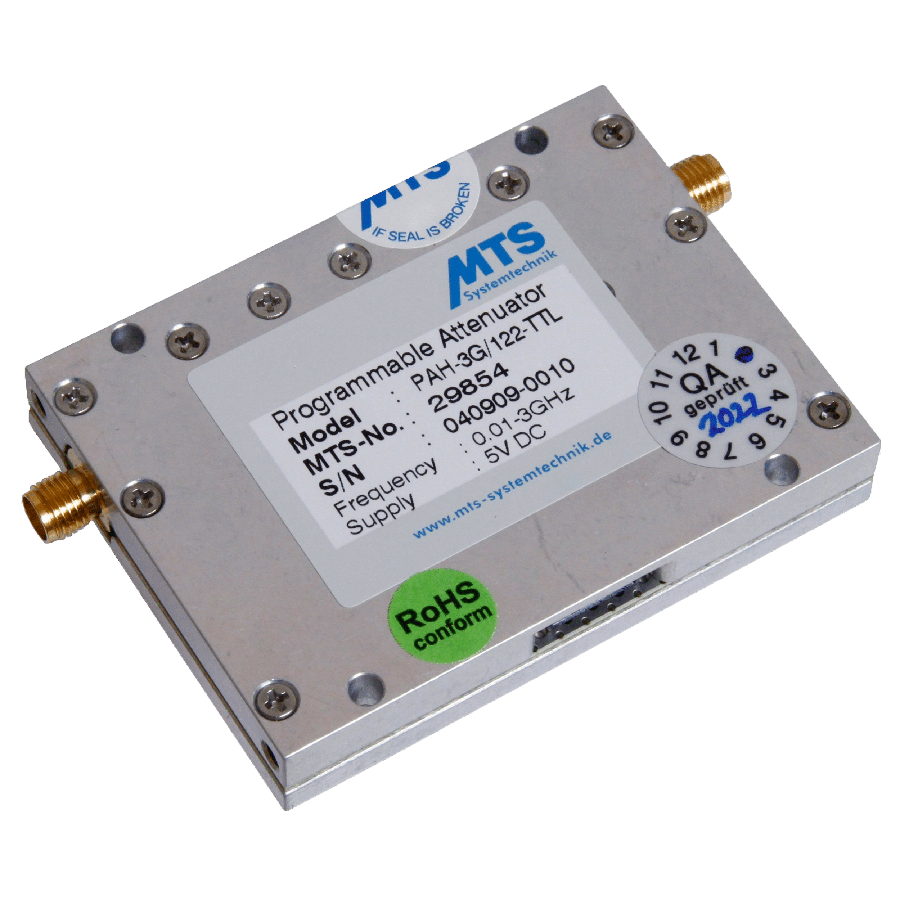

| ATN-29854 | Programmable attenuator 0.01-3 GHz, 122dB – SMA. |

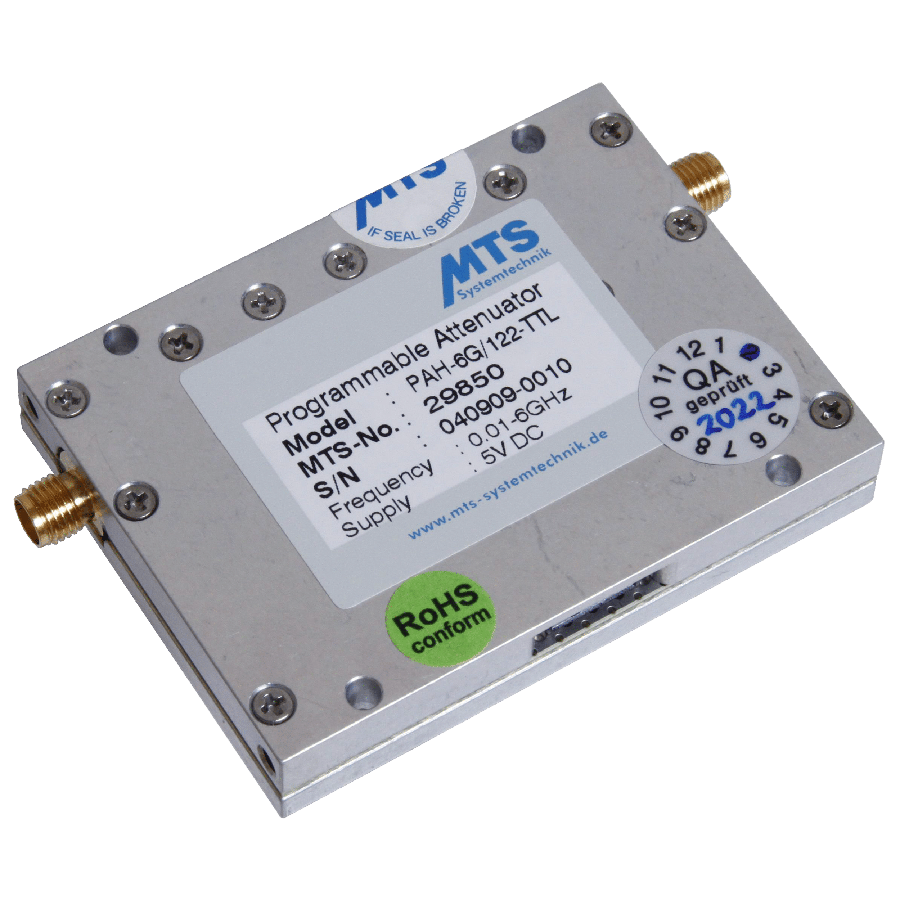

| ATN-29850 | Programmable attenuator 0.01-6 GHz, 122dB – SMA. |

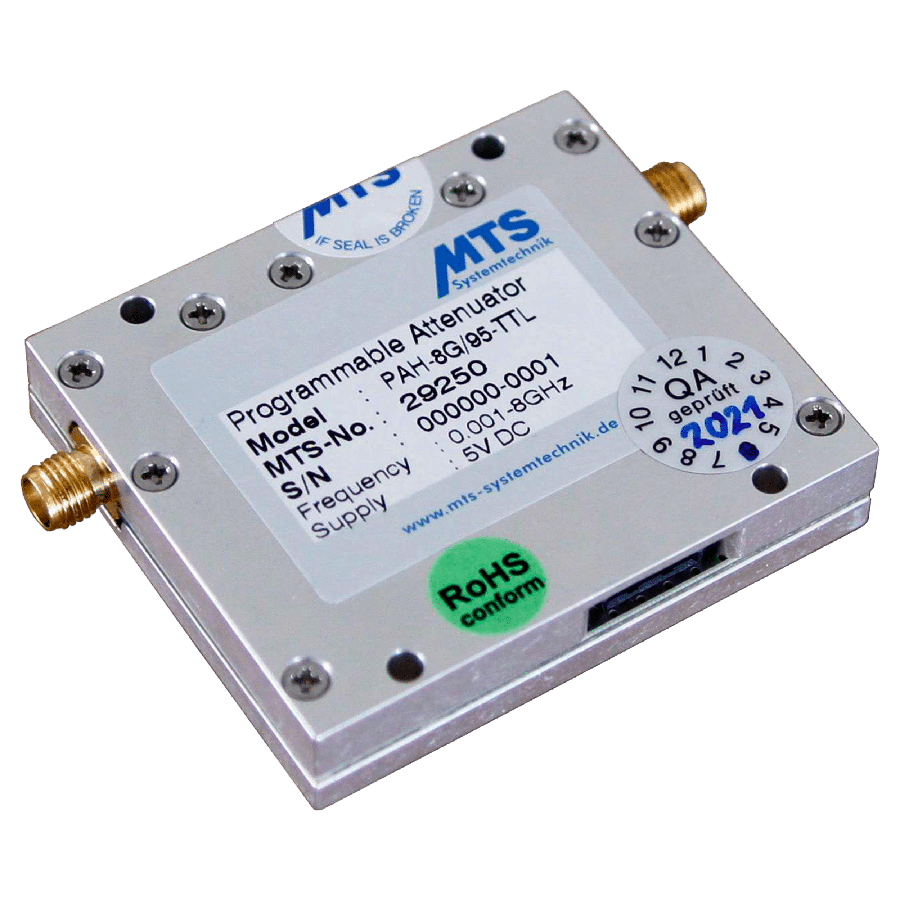

| ATN-29250 | Programmable attenuator 0.01-8 GHz, 95dB – SMA. |

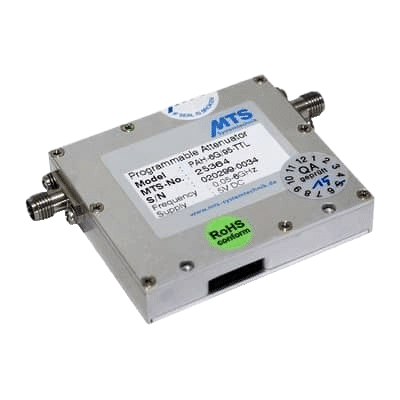

| ATN-25364 | Programmable attenuator 0.05-6 GHz – SMA. |
| ATN-23909-01 | Programmable attenuator, PAH-4G/95-TTL. |

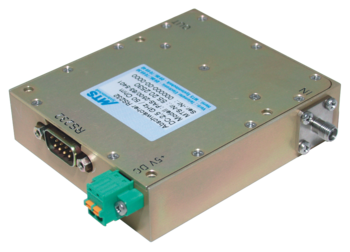

| ATN-00000-56 | Programmable attenuator, PAS/T-PAS series. |

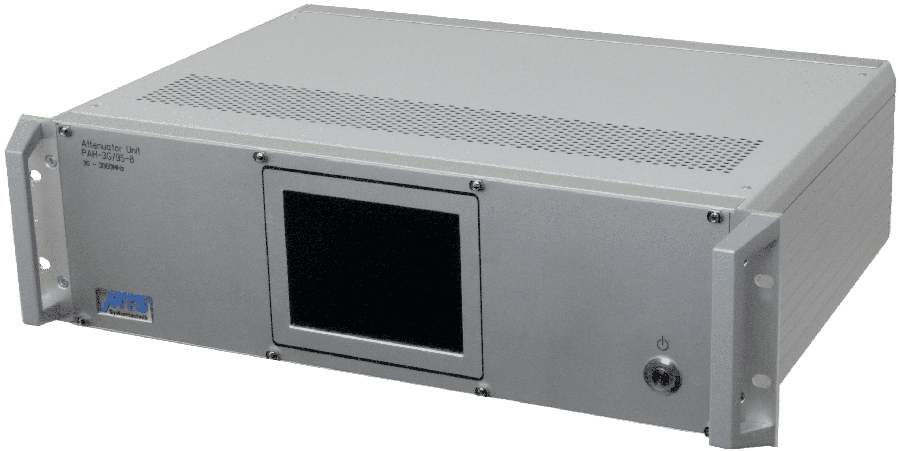

| ATN-30117 | Attenuator unit, 8-way, 0.03-3 GHz – SMA. |
ATN Series RF Attenuators
MTS RF attenuators reduce signal level by a fixed or programmable amount while preserving impedance match, for level control in test setups and protection of sensitive receiver inputs. The range spans fixed-value pads, computer-controlled step attenuators (TTL/GPIB/LAN control, up to 122 dB in 1 dB steps) and multi-channel attenuator units, covering DC to 11 GHz.Who Is the ATN Series For?
Test engineers who need repeatable, remotely programmable RF level control for automated test sequences, or a simple fixed pad for permanent level reduction.Available Models & Accessories
The range spans fixed-value pads (DGL, DGL18), computer-controlled step attenuators from 0.01 GHz up to 11 GHz with 95 or 122 dB range, and an 8-way attenuator unit, in N, SMA, BNC and TNC variants.Step attenuators up to 122 dB in 1 dB steps.
Computer-controlled models (TTL, GPIB or LAN) give repeatable, remotely programmable level control for automated test sequences.
Coverage up to 11 GHz.
The widest-band step attenuator in the range covers 0.01-11 GHz in a single unit, avoiding the need to swap attenuators between sub-bands.
8-way attenuator unit for multi-channel setups.
One enclosure sets attenuation on 8 independent RF paths, for test benches that would otherwise need 8 separate attenuators.
Fixed pads for permanent level reduction.
The DGL and DGL18 fixed-value series provide a simple, no-power-required alternative where the attenuation value never needs to change.
