| Brand | RIGOL |
|---|---|
| Frequency Range | 5 kHz – 26.5 GHz |
| Noise floor* (DANL) | -163 dBm |
| Real Time Bandwidth | 200 MHz |
| Phase Noise @10 kHz offset | -108dBc/Hz@10kHz |

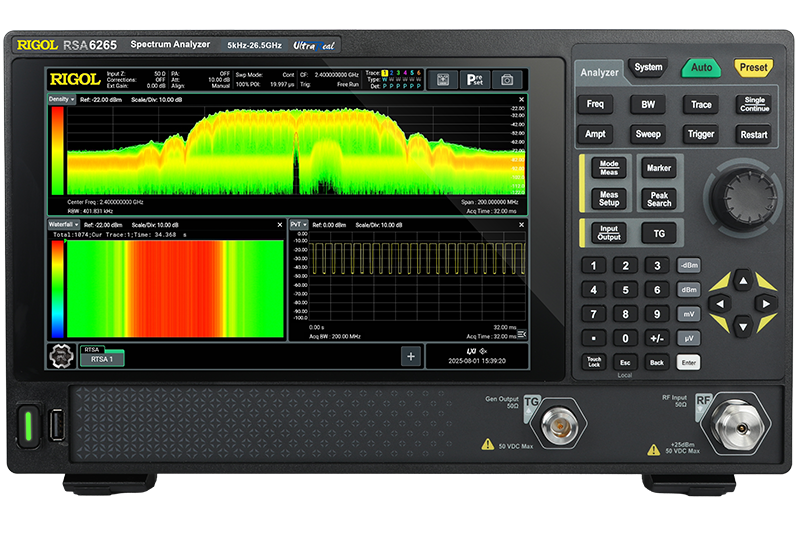

RSA6000 Real Time Spectrum Analyzer
The Rigol RSA6000 Real Time Spectrum Analyzer is a compact and lightweight spectrum analyzer series designed to provide premium performance for modern RF signal analysis. It features a frequency range up to 26.5 GHz and a 100% Probability of Intercept (POI) as low as 3.83 µs to ensure no transient signal is missed. This series is ideal for engineers tackling complex challenges like frequency hopping and spectrum interference in WiFi and Bluetooth integration.
Key Specifications & Features
- Frequency Range: 5 kHz to 8.5 GHz, 14 GHz, or 26.5 GHz
- Real-Time Bandwidth: 80 MHz standard (up to 200 MHz optional)
- Display: 10.1-inch capacitive touchscreen
- Sensitivity: Displayed Average Noise Level as low as -163 dBm
- Resolution Bandwidth (RBW): 1 Hz minimum for precise signal separation
- Sweep Speed: 1 ms full span sweep speed
- Triggering: Frequency-Mask, IF-Power-Level, and external trigger modes
- EMI Testing: Standard EMI RBW and Detector (200 Hz, 5 kHz, 120 kHz, 1 MHz)
| Models | |
| RSA6085 | Real-time Spectrum Analyzer, 5 kHz – 8.5 GHz |
| RSA6140 | Real-time Spectrum Analyzer, 5 kHz – 14 GHz |
| RSA6265 | Real-time Spectrum Analyzer, 5 kHz – 26.5 GHz |
| Options & Accessories | |
| RSA6000-ADM | Analog Demodulation Application Software |
| RSA6000-AMK | Advanced Measurement Kit |
| RSA6000-B200 | 200 MHz Analysis Bandwidth |
| RSA6000-EMI | EMI Measurement Application Software |
| RSA6000-P08 | Preamplifier (PA), 8.5 GHz |
| RSA6000-P14 | Preamplifier (PA), 14 GHz |
| RSA6000-P26 | Preamplifier (PA), 26.5 GHz |
| RSA6000-RB200 | 200 MHz Real-time Bandwidth |
| RSA6000-T08 | 8.5 GHz Tracking Generator Output |
| RSA6000-VSA | Vector Signal Analysis Application Software |
| NFP-3 | Near Field Probe, Frequency range: 30 MHz – 3 GHz |
| RM6041 | Rack Mount Kit |
| Ultra Spectrum | DSA PC Software |
| VB1032 | VSWR Bridge, 1 MHz – 3.2 GHz |
| VB1080 | VSWR Bridge, 2 GHz – 8 GHz |
| DSA Utility Kit | Includes: N-SMA Cable, BNC-BNC Cable, N-BNC Adapter, N-SMA Adapter, 75 Ω to 50 Ω Adapter, 900 MHz/1.8 GHz Antenna (2 pcs), 2.4 GHz Antenna (2 pcs) |
| CK106A | VNA Calibration Kit, DC – 6.5 GHz |
| CK106E | VNA Calibration Kit, DC – 1.5 GHz |
RSA6000 Real Time Spectrum Analyzer
The Rigol RSA6000 series is a high-performance spectrum analysis solution that combines standard sweep capabilities with advanced real-time analysis. Covering a frequency range from 5 kHz up to 26.5 GHz across three models, it is engineered to capture fast-moving signals such as those found in modern wireless communications. With a 100% Probability of Intercept (POI) as low as 3.83 µs and a minimum resolution bandwidth of 1 Hz, it provides the accuracy required for deep spectral troubleshooting. Constructed with a 10.1-inch capacitive touchscreen, the RSA6000 offers an intuitive interface for navigating its seven distinct real-time visualization modes. The instrument supports high-speed operations with a 1 ms full span sweep speed and a standard real-time analysis bandwidth of 80 MHz. Advanced triggering options, including Frequency-Mask and IF-Power-Level triggers, allow users to isolate specific signal events within dense RF environments effectively. The series includes the RSA6085, RSA6140, and RSA6265 models, which can be further customized with options like the RSA6000-B200 for 200 MHz bandwidth or the RSA6000-AMK advanced measurement kit. Standard EMI filters and detectors are included to support pre-compliance testing, while optional tracking generators and VSWR measurements expand its utility for component characterization. This versatility makes it an essential tool for engineers working on WiFi, Bluetooth, and other frequency-hopping technologies.High Frequency Performance
Offers a wide frequency range up to 26.5 GHz for diverse RF and microwave applications.
Rapid Sweep Capabilities
Features a 1 ms full span sweep speed for efficient spectral monitoring and signal detection.
Precise Signal Separation
Achieves a minimum 1 Hz resolution bandwidth for detailed analysis of closely spaced low-level signals.
EMI Pre-Compliance Ready
Includes standard EMI RBW and detectors to streamline electromagnetic interference testing and troubleshooting.
Real-Time Signal Capture and Analysis
The RSA6000 series utilizes a real-time analysis bandwidth of up to 200 MHz to capture transient and fast-hopping signals that traditional analyzers might miss. With a 100% Probability of Intercept (POI) of 3.83 µs, engineers can confidently detect intermittent interference and complex signals in modern wireless applications.
Advanced Triggering and Visualization
This series offers seven unique real-time visualization modes and sophisticated triggering capabilities, including Frequency-Mask and IF-Power-Level triggers. These tools allow for precise isolation of signals based on specific spectral events while the large capacitive touchscreen ensures easy navigation through complex data sets.
