| Brand | Anritsu |
|---|---|
| Ports | 2 or 4 ports |
| Frequency Range | 10 MHz – 43.5 GHz |
| Dynamic range | 147 dB (above 2 GHz) |
| mmWave Capability | 54–220 GHz native, up to 1.1 THz (waveguide) |
MS466xxA High Performance Network Analyzers
Anritsu Tensor™ is an AI-enabled Vector Network Analyzer with true source-per-port architecture, dynamic range exceeding 140 dB above 2 GHz, and mmWave capability from 54 GHz to 220 GHz (expandable to 1.1 THz via waveguide). Available in 2-port and 4-port configurations covering 10 MHz to 43.5 GHz.
Key Features
- True source-per-port architecture — dedicated source for each port, enabling simultaneous multi-component measurements
- Dynamic range exceeding 140 dB above 2 GHz
- Native mmWave capability 54–220 GHz, expandable up to 1.1 THz via third-party waveguide components
- Anritsu Integrated AI (AAI) — interprets natural language, automates workflows, reduces setup complexity
- Ultra-fast sweep speeds and high data throughput
- Advanced active device support — amplifiers, mixers, multi-stage frequency converters, opto-electronics
- Built-in bias tees, high-linearity receivers, and precision attenuators
- Large touchscreen with intuitive, responsive GUI
| MS46622A | 2-port, 10 MHz to 26.5 GHz |
| MS46624A | 4-port, 10 MHz to 26.5 GHz |
| MS46642A | 2-port, 10 MHz to 43.5 GHz |
| MS46644A | 4-port, 10 MHz to 43.5 GHz |
| MS466xxA-0002 | Time Domain |
| MS466xxA-0007 | Frequency Offset |
| MS466xxA-0021 | Universal Fixture Extraction |
| MS466xxA-0044 | IMDView™ |
| MS466xxA-0050 | Direct Access Loops, without Bias-T |
| MS466xxA-0053 | External ALC |

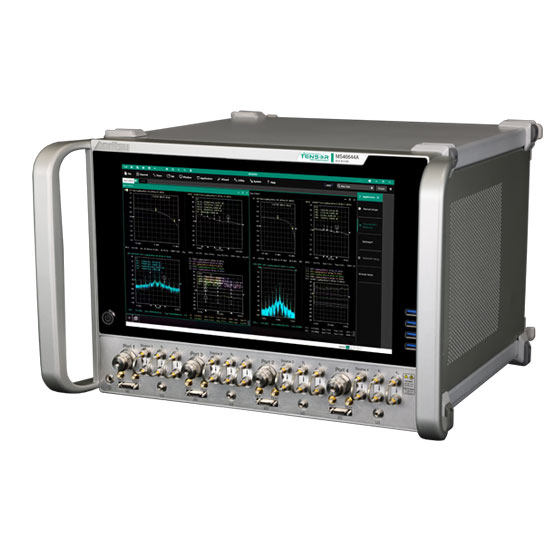

Anritsu Tensor™ AI-Enabled Vector Network Analyzer (VNA)
The new Anritsu Tensor™ Vector Network Analyzer (VNA) sets a new standard in RF and microwave test and measurement. Designed for engineers working in aerospace, defense, telecommunications, semiconductor development, and advanced R&D, Tensor combines the industry's first source-per-port architecture with integrated AI-assisted measurement workflows. This innovative VNA simplifies the characterization of amplifiers, filters, mixers, frequency converters, mmWave devices, and other complex RF components. With ultrafast sweep speeds, outstanding dynamic range, high power handling, and a scalable future-ready platform, the Anritsu Tensor™ VNA delivers faster test validation, improved productivity, and highly accurate measurement results for demanding RF and microwave applications."Source-per-port architecture
Dedicated source for each port — exceptional output power and input handling for active device testing.
147 dB dynamic range
Industry-leading dynamic range above 2 GHz for highly accurate measurements of demanding RF components.
Anritsu Integrated AI
AI-assisted measurement workflows reduce setup complexity and accelerate test automation.
Native mmWave up to 1.1 THz
Direct mmWave measurements without external hardware — scalable platform ready for future test needs.
Scalable platform for future-ready testing
The Anritsu Tensor™ VNA is built on a modular, upgradeable architecture — protecting your investment as test requirements evolve. Optional software licenses unlock advanced capabilities including Time Domain analysis, Frequency Offset measurements, Universal Fixture Extraction, and IMDView™ intermodulation distortion analysis.
Designed for the most demanding applications
From semiconductor wafer-level characterization to aerospace and defense system validation, the Tensor™ VNA handles it all. Built-in bias tees, precision attenuators, and high-linearity receivers eliminate the need for external components, simplifying test setups and improving measurement repeatability.
