| Brand | RIGOL |
|---|---|
| Frequency Range | 5 kHz-8.5/14/20/26.5 GHz |
| Ports | 2 or 4 ports |
| Form factor | Benchtop |

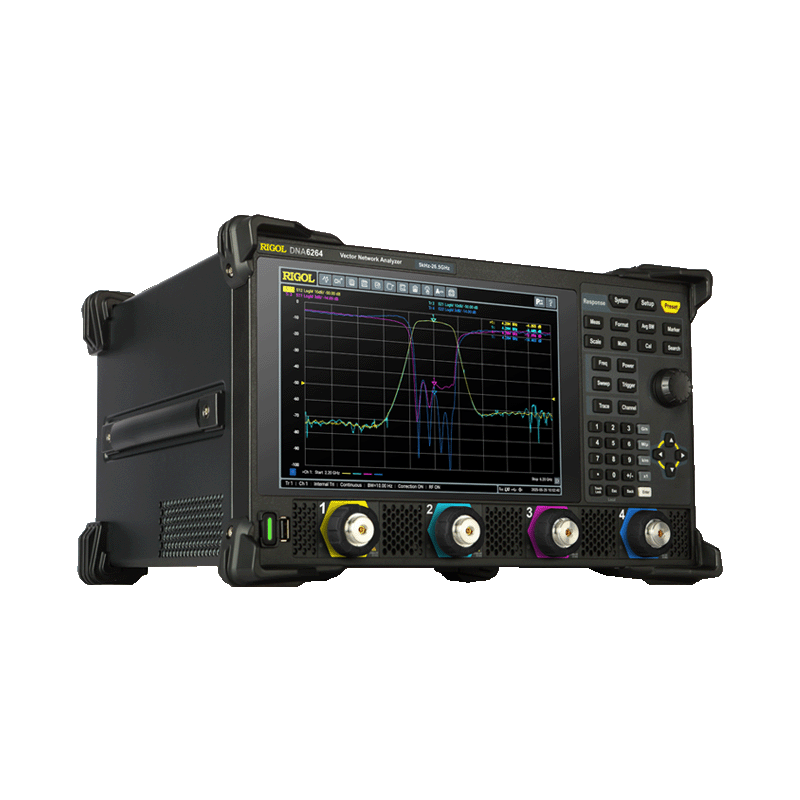

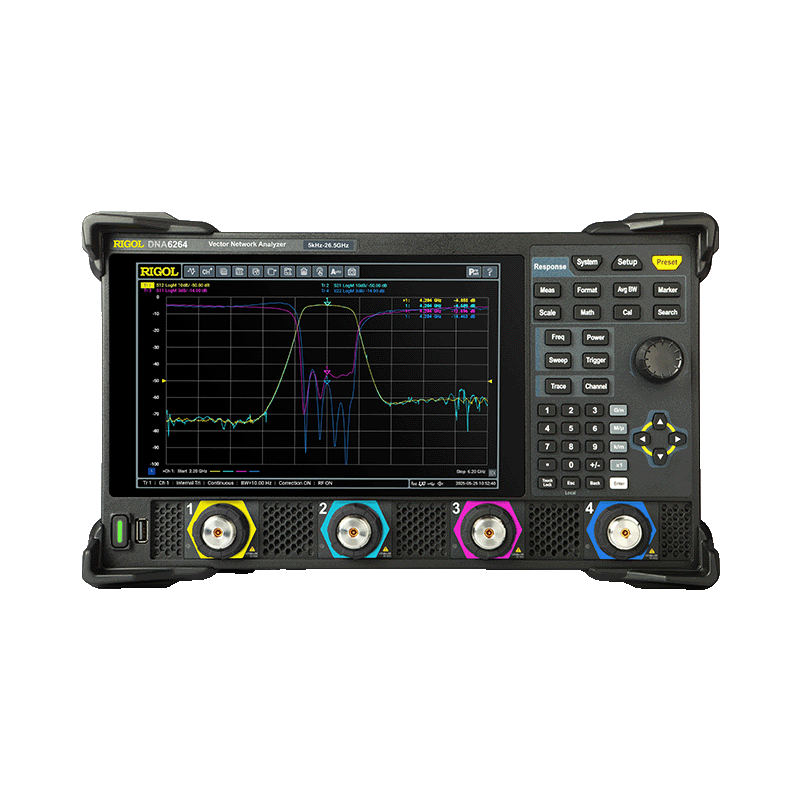

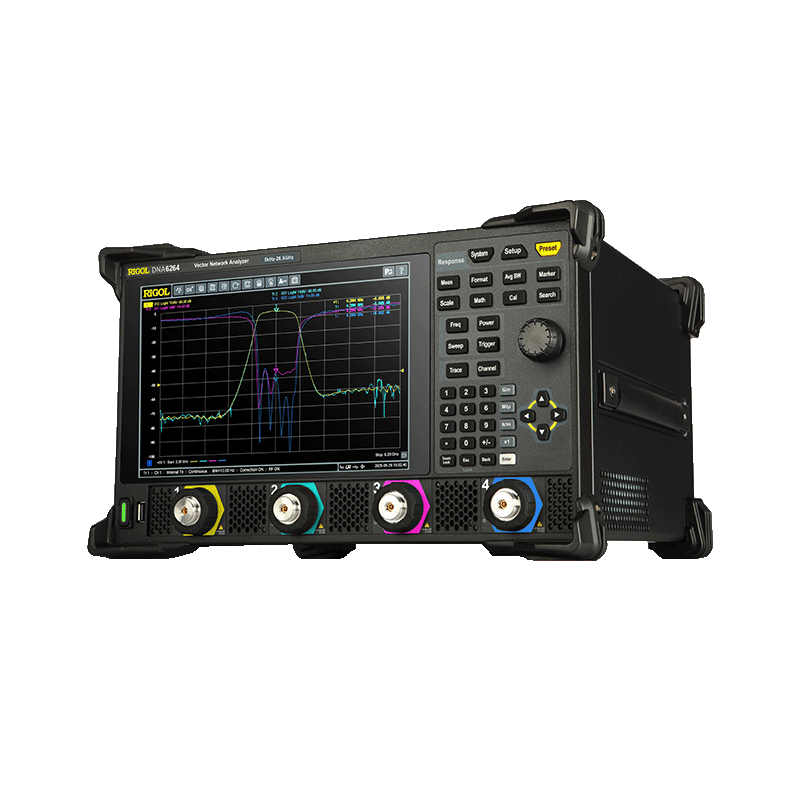

DNA6000 2/4-Port Advanced VNA
The DNA6000 Series is an advanced Vector Network Analyzer platform designed for sophisticated RF and microwave applications, offering both 2-port and 4-port configurations. Built in a solid benchtop form factor, it provides the stability and reliability required for long-duration R&D tasks and repetitive production line testing. With a frequency range extending up to 26.5 GHz, a high dynamic range of 127 dB, and exceptionally low trace noise of 0.003 dB, the DNA6000 is the ideal solution for characterizing complex multi-port devices, high-performance amplifiers, and precision microwave modules.
Key Specifications & Features
- Frequency Range: 5 kHz to 8.5 / 14 / 20 / 26.5 GHz
- Port Configurations: 2-port and 4-port models available
- Dynamic Range: up to 127 dB (typ.)
- Trace Noise: ultra-low 0.003 dB (typ.)
- Frequency Resolution: 1 Hz
- Output Power: up to +10 dBm
- Calibration: Full support for Mechanical kits and ECal (2 and 4-port)
- Connectivity: LAN, USB, HDMI, GPIB, and Application I/O
- Remote Operation: Web Control and SCPI support
| Model | Description | Bandwidth | Number of Ports |
| DNA6082 | Vector Network Analyzer, 5 kHz ~ 8.5 GHz, 2 ports | 8.5 GHz | 2 |
| DNA6084 | Vector Network Analyzer, 5 kHz ~ 8.5 GHz, 4 ports | 8.5 GHz | 4 |
| DNA6142 | Vector Network Analyzer, 5 kHz ~ 14 GHz, 2 ports | 14 GHz | 2 |
| DNA6144 | Vector Network Analyzer, 5 kHz ~ 14 GHz, 4 ports | 14 GHz | 4 |
| DNA6202 | Vector Network Analyzer, 5 kHz ~ 20 GHz, 2 ports | 20 GHz | 2 |
| DNA6204 | Vector Network Analyzer, 5 kHz ~ 20 GHz, 4 ports | 20 GHz | 4 |
| DNA6262 | Vector Network Analyzer, 5 kHz ~ 26.5 GHz, 2 ports | 26.5 GHz | 2 |
| DNA6264 | Vector Network Analyzer, 5 kHz ~ 26.5 GHz, 4 ports | 26.5 GHz | 4 |
| Options | |||
| DNA-TDA10 | Time Domain Analysis | ||
| DNA-DTF10 | Distance to Fault | ||
| MCAL104-NM1 | Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (m), 50 Ω | ||
| MCAL104-NF1 | Mechanical Calibration Kit, DC ~ 4.5 GHz, Type-N (f), 50 Ω | ||
| MCAL109-NM1 | Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m), 50 Ω | ||
| MCAL109-NF1 | Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (f), 50 Ω | ||
| MCAL109-NK1 | Mechanical Calibration Kit, DC ~ 9 GHz, Type-N (m & f), 50 Ω | ||
| MCAL104-SM1 | Mechanical Calibration Kit, DC ~ 4.5 GHz, 3.5 mm (m) | ||
| MCAL104-SF1 | Mechanical Calibration Kit, DC ~ 4.5 GHz, 3.5 mm (f) | ||
| MCAL109-SM1 | Mechanical Calibration Kit, DC ~ 9 GHz, 3.5 mm (m) | ||
| MCAL109-SF1 | Mechanical Calibration Kit, DC ~ 9 GHz, 3.5 mm (f) | ||
| MCAL109-SK1 | Mechanical Calibration Kit, DC ~ 9 GHz, 3.5 mm (m & f) | ||
| MCAL126-35K1 | Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (m & f) | ||
| MCAL226-35F5 | 4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (f) | ||
| ECAL109-NF2 | Electronic Calibration Module, 100 kHz ~ 9 GHz, Type-N (f), 50 Ω, 2 ports | ||
| ECAL114-NF2 | Electronic Calibration Module, 100 kHz ~ 14 GHz, Type-N (f), 50 Ω, 2 ports | ||
| ECAL126-35F2 | Electronic Calibration Module, 100 kHz ~ 26.5 GHz, 3.5 mm (f), 2 ports | ||
| CB-3.5M-3.5M-100-L-26G | RF Cable, DC ~ 26.5 GHz, 3.5 mm (m) – 3.5 mm (m), 100 cm | ||
| CB-SMAM-SMAM-100-L-18G | RF Cable, DC ~ 18 GHz, SMA (m) – SMA (m), 100 cm | ||
| CB-NM-NM-100-L-18G | RF Cable, DC ~ 18 GHz, N (m) – N (m), 100 cm | ||
| CB-NM-SMAM-100-L-18G | RF Cable, DC ~ 18 GHz, N (m) – SMA (m), 100 cm | ||
| CB-NM-3.5M-100-L-18G | RF Cable, DC ~ 18 GHz, N (m) – 3.5mm (m), 100 cm | ||
| CB-NMD3.5F-3.5F-63-L-26G | VNA RF Cable, DC ~ 26.5 GHz, NMD 3.5mm (f) – 3.5mm (f), 63.5 cm | ||
| AD-NF-NF-L-18G | Adapter, N (f) – N (f), DC ~ 18GHz | ||
| AD-NM-NM-L-18G | Adapter, N (m) – N(m), DC ~ 18GHz | ||
| AD-SMAF-SMAF-L-18G | Adapter, SMA (f) – SMA (f), DC ~ 18GHz | ||
| AD-SMAM-SMAM-L-18G | Adapter, SMA (m) – SMA (m), DC ~ 18GHz | ||
| AD-3.5F-3.5F-L-26G | Adapter, 3.5mm (f) – 3.5mm (f), DC ~ 26.5GHz | ||
| AD-3.5M-3.5M-L-26G | Adapter, 3.5mm (m) – 3.5mm (m), DC ~ 26.5GHz | ||
| AD-NM-BNCF-L-4G | Adapter, N (m) – BNC (f), DC ~ 4GHz | ||
| AD-SMAM-NM-L-18G | Adapter, SMA (m) – N (m), DC ~ 18GHz | ||
| AD-SMAF-NM-L-18G | Adapter, SMA (f) – N (m), DC ~ 18GHz | ||
| AD-SMAF-BNCM-L-4G | Adapter, SMA (f) – BNC (m), DC ~ 4GHz | ||
| AD-3.5M-2.92F-L-26G | Adapter, 3.5mm (m) – 2.92 (f), DC ~ 26.5GHz | ||
| AD-3.5F-2.92M-L-26G | Adapter, 3.5mm (f) – 2.92 (m), DC ~ 26.5GHz | ||
| TW8-8 | Torque Wrench, 8 in-lb, 8.1 mm-open end, for SMA 3.5mm connectors | ||
| TW12-19 | Torque Wrench, 12 in-lb, 19.1 mm-open end, for N-type connectors |
DNA6000 2/4-Port Advanced VNA
The DNA6000 Series targets the most demanding microwave environments, providing a dependable partner for both research labs and automated production lines. Its benchtop architecture is optimized for stability, ensuring accurate characterization of filters, amplifiers, and high-speed cables over long testing cycles. The availability of 4-port models allows for complex multi-port measurements, such as differential S-parameters and crosstalk analysis, which are essential for modern high-speed interconnects and microwave modules.
To ensure laboratory-grade precision, the DNA6000 ecosystem includes comprehensive calibration support. This encompasses the MCAL series of mechanical calibration kits (Type-N and 3.5 mm) and high-performance ECal modules capable of automating the calibration process for both 2-port and 4-port systems up to 26.5 GHz. The series is further supported by a professional array of phase-stable RF cables and adapters, ensuring that signal integrity is maintained from the instrument ports to the device under test.
Beyond standard measurements, the platform offers advanced analysis capabilities through optional modules like DNA-TDA10 for Time Domain Analysis and DNA-DTF10 for Distance-to-Fault diagnostics. With extended connectivity options including GPIB and Application I/O, the DNA6000 integrates seamlessly into sophisticated system racks and automated test sequences controlled via SCPI or Web Control.
Up to 4-Port Testing
Available in 2 and 4-port configurations for advanced multi-port and differential signal analysis.
0.003 dB Trace Noise
Ultra-low noise floor for high-precision measurements of sensitive RF and microwave components.
GPIB & Industrial I/O
Enhanced connectivity for seamless integration into automated test systems and production racks.

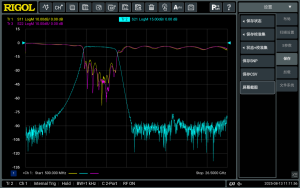

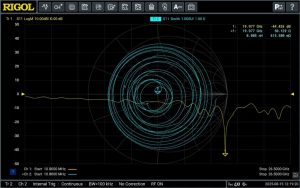

26.5 GHz Performance
High-frequency coverage and 127 dB dynamic range tailored for microwave module characterization.
Advanced Multi-Port Architecture
The DNA6000 series stands out with its true 4-port capability, enabling engineers to perform complex measurements on multi-port devices without the need for external switches. This architecture significantly reduces test time and improves accuracy for differential measurements and system integration tasks across the entire 5 kHz to 26.5 GHz spectrum.
Precision Production Verification
Designed for the rigors of the production line, the DNA6000 features a solid form factor and high-speed data acquisition. Its ultra-low trace noise of 0.003 dB ensures that even the smallest signal fluctuations are detected, while the integrated GPIB and HDMI interfaces simplify the creation of automated quality control stations.
