| Brand | RIGOL |
|---|---|
| Resolution Bandwidth (RBW) | 1Hz~3MHz(10MHz opt.) |
| Phase Noise | -102dBc/Hz@10kHz |
| Displayed Average Noise Level (DANL) | -161dBm |

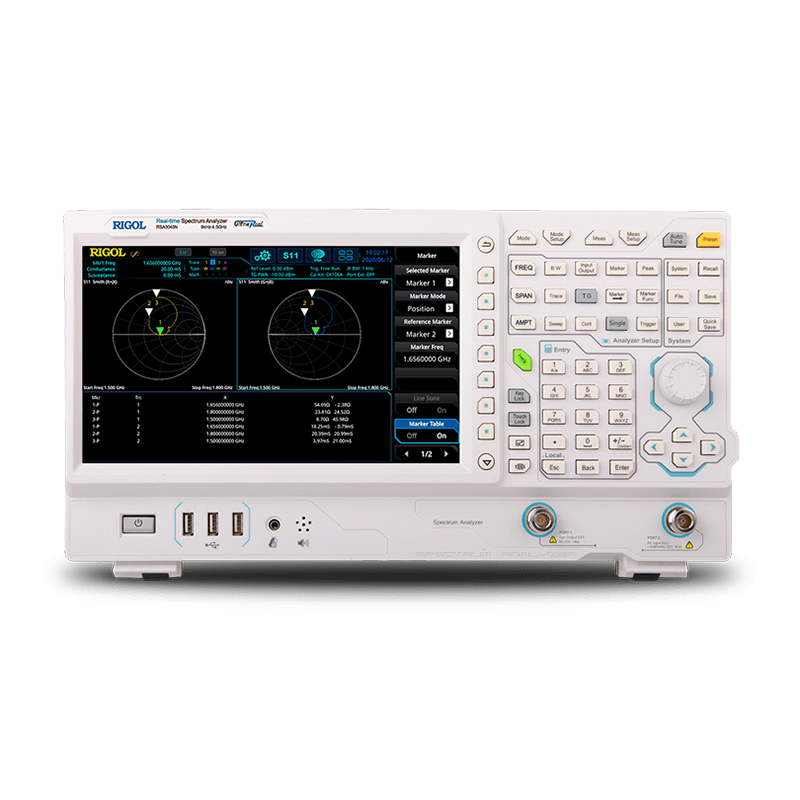

RSA3000 Real Time Spectrum Analyzers
The RSA3000 Real Time Spectrum Analyzer is a high-performance instrument designed for seamless signal analysis and EMI pre-compliance. It features a frequency range up to 4.5GHz and a displayed average noise level as low as -161dBm. This versatile series integrates real-time analysis, sweep capabilities, and optional vector network analysis for comprehensive RF testing.
Key Specifications & Features
- Frequency Range: 9kHz to 4.5GHz
- Resolution Bandwidth (RBW): 1Hz to 3MHz (10MHz optional)
- Phase Noise: -102dBc/Hz @ 10kHz (typical)
- Displayed Average Noise Level (DANL): -161dBm (with optional preamp)
- Analysis Modes: RTSA, EMI, and VNA (N-models)
- Triggering: FMT (Frequency Mask Trigger) for sporadic anomalies
- Tracking Generator: Available on -TG models
- VNA Measurements: S11, S21, and DTF (N-models)
| Models | |||||
| Model | Frequency Range | Resolution Bandwidth | Phase Noise (typ) | DANL | Real Time Bandwidth |
| RSA3015N | 9 kHz – 1.5 GHz | 1 Hz – 3 MHz (10 MHz optional) | -102 dBc/Hz @ 10 kHz | -161 dBm | 10 MHz (25 or 40 MHz optional) |
| RSA3030N | 10 kHz – 3 GHz | 2 Hz – 3 MHz (10 MHz optional) | -102 dBc/Hz @ 10 kHz | -161 dBm | 10 MHz (25 or 40 MHz optional) |
| RSA3045N | 11 kHz – 4.5 GHz | 3 Hz – 3 MHz (10 MHz optional) | -102 dBc/Hz @ 10 kHz | -161 dBm | 10 MHz (25 or 40 MHz optional) |
| Options & Accessories | |||||
| RSA3000-AMK | Advanced Measurement Kit | ||||
| RSA3000-B25 | Realtime Analysis Bandwidth 25 MHz | ||||
| RSA3000-B40 | Realtime Analysis Bandwidth 40 MHz | ||||
| RSA3000-BW1 | RBW 1 Hz to 10 MHz | ||||
| RSA3000-EMC | EMI Filter and Detector | ||||
| RSA3000-EMI | EMI Measurement Application | ||||
| RSA3000-PA | Pre-amplifier | ||||
| NFP-3 | Near Field Probe, Frequency range: 30 MHz – 3 GHz | ||||
| RM6041 | Rack Mount Kit | ||||
| Ultra Spectrum | DSA PC Software | ||||
| VB1032 | VSWR Bridge, 1 MHz – 3.2 GHz | ||||
| DSA Utility Kit | Includes: N-SMA Cable, BNC-BNC Cable, N-BNC Adapter, N-SMA Adapter, 75 Ω to 50 Ω Adapter, 900 MHz/1.8 GHz Antenna (2 pcs), 2.4 GHz Antenna (2 pcs) | ||||
| CK106A | VNA Calibration Kit, DC – 6.5 GHz | ||||
| CK106E | VNA Calibration Kit, DC – 1.5 GHz | ||||
RSA3000 Real Time Spectrum Analyzers
The RSA3000 series offers a powerful combination of real-time spectrum analysis and traditional sweep analysis, making it ideal for enterprise R&D, factory production, and educational environments. With frequency coverage up to 4.5GHz, these analyzers provide the precision needed for modern RF design and troubleshooting. The inclusion of optional EMI measurement software allows for efficient pre-compliance testing of conduction and radiation.
Built with advanced FMT (Frequency Mask Trigger) technology, the RSA3000 allows users to quickly build templates to accurately locate and trigger on sporadic signal anomalies. The instrument features a remarkably low DANL of -161dBm and an RBW as low as 1Hz, ensuring that even low-powered harmonics and adjacent signals are clearly visible. Its real-time capabilities ensure that no transient signals are missed during complex monitoring tasks.
Available in multiple configurations, including models with built-in tracking generators (-TG) and Vector Network Analysis (-N models), the RSA3000 is highly customizable. The VNA mode supports S11, S21, and Distance-to-Fault (DTF) measurements, providing detailed network characteristics in Smith and Polar chart formats. Multiple interfaces are also included to improve the connectivity and integration of the instrument into various test setups.
Precise Signal Resolution
Resolution bandwidth as low as 1Hz allows for the verification of RF devices by resolving signals with very similar frequencies.
Advanced Frequency Mask Trigger
The unique FMT mode enables users to accurately locate and trigger on sporadic anomalies within a monitored range.
Low Power Signal Detection
A DANL as low as -161dBm with an optional preamp makes it easy to troubleshoot low-powered harmonics and interference.
Integrated Tracking Generator
Available -TG models provide a built-in tracking source to support a wider range of RF testing and production applications.
Built-in Vector Network Analysis Mode
In the specialized VNA mode, users can perform critical S11, S21, and DTF measurements for components and circuit networks. This allows for the accurate demonstration of network characteristics through Smith charts and Polar charts, specifically available on N-model versions.
EMI Pre-compliance and Testing Software
The RSA3000 features built-in EMI application software combined with CISPR-compliant filters to facilitate conduction and radiation pre-testing. This capability helps identify and improve disturbance sources early in the design cycle, significantly accelerating the time-to-market for new products.
