FFT Field Receiver
The PMM FR4003 is a professional FFT field receiver designed to improve electric field measurements by surpassing traditional rod antennas. It features a frequency range of 9 kHz to 30 MHz and functions as a fully compliant CISPR 16-1-1 receiver. This versatile system ensures undisturbed measurements through a scattering-free design and high-speed fiber optic connectivity.
Key Specifications & Features
- Frequency Range: 9 kHz to 30 MHz
- Compliance: CISPR 12, 16, 25, MIL-STD, and DO-160
- Measurement Modes: Traditional swept and high-speed gapless FFT
- Integrated Components: Internal preselectors, attenuators, and preamplifiers
- Connectivity: Fiber optic serial link to PC or 9010F series receivers
- Power Source: Rechargeable Li-ion battery for several hours of operation
- Diagnostic Tools: On-board tracking generator and capacitance meter
- Calibration: Automatic diagnostic and self-calibration capability
| FR-4003 | FFT field CISPR 16-1-1 receiver and ROD antenna, 9 kHz – 30 MHz, CISPR 16-1-1 receiver |
No downloads available.
FFT Field Receiver

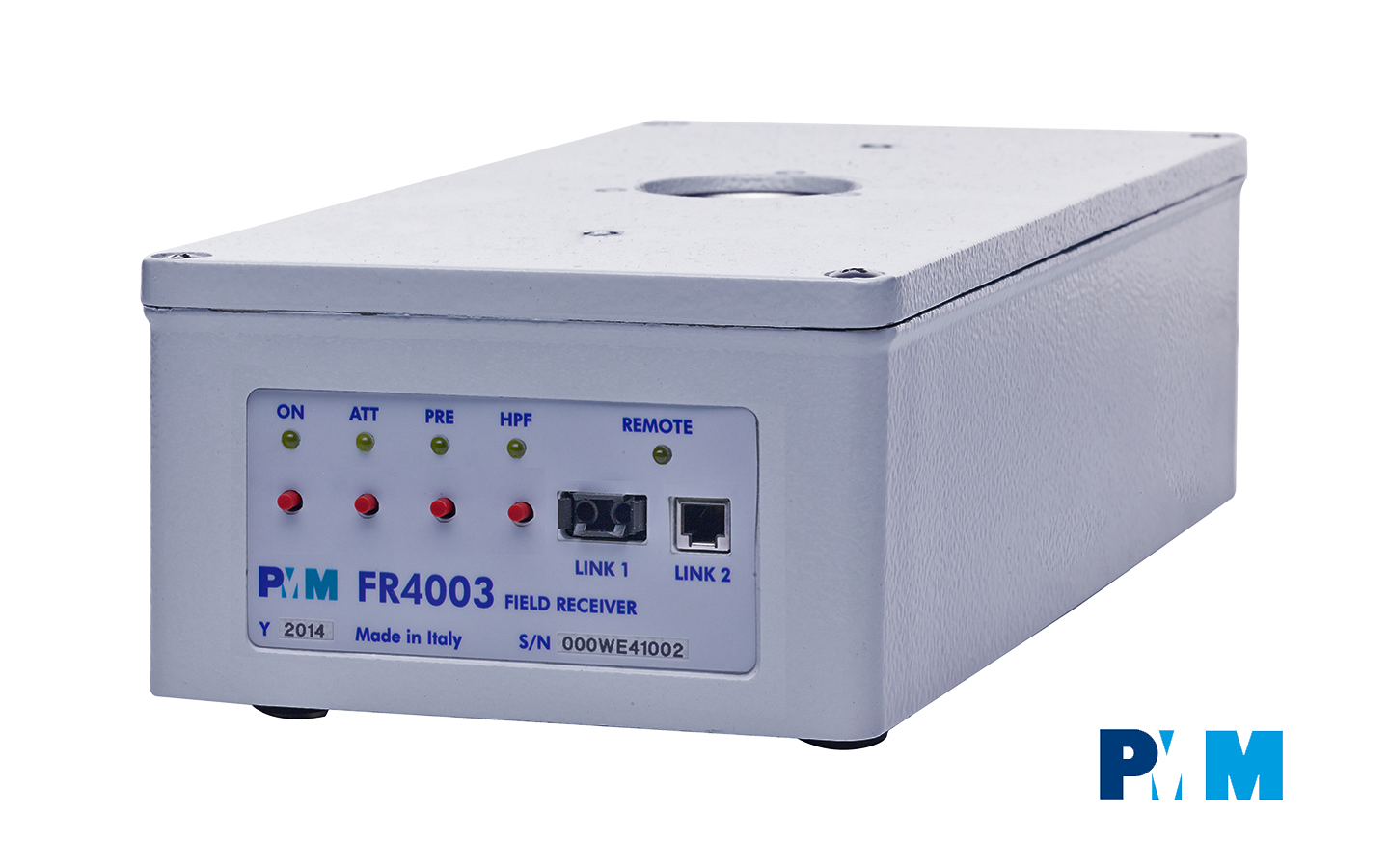

The FR4003 FFT Field Receiver is a sophisticated measurement solution that integrates a full CISPR 16-1-1 receiver directly into a rod antenna structure. Designed for precision electric field analysis, it operates across a 9 kHz to 30 MHz frequency range and supports both swept and gapless FFT measurement modes. This dual-mode capability allows engineers to achieve extremely fast measuring times while maintaining full compliance with international standards such as MIL-STD and DO-160.
Construction of the FR4003 focuses on signal purity, utilizing a scattering-free design to ensure measurements are taken in an undisturbed field. The internal receiver architecture includes embedded preselectors, attenuators, and preamplifiers to optimize the signal-to-noise ratio. Furthermore, the unit features a fiber optic serial link that allows for remote control via PC or integration with the 9010F series, effectively isolating the measurement equipment from the monitoring station.
The system is highly versatile, doubling as a field generator through its on-board tracking generator which can broadcast internally generated signals. It also includes an automatic diagnostic system and a capacitance meter to verify grounding effectiveness and ensure accurate calibration. The FR-4003 model comes as a complete package with controlling PC software and a plug-in rechargeable Li-ion battery, providing the portability required for extended field operations without external power.
Full Standard Compliance
Meets CISPR 12, 16, 25, MIL-STD, and DO-160 requirements for professional electromagnetic testing.
Gapless FFT Mode
Enables extremely fast measuring times and high-efficiency analysis of electric field emissions.
Fiber Optic Isolation
Uses a fiber optic link to prevent signal scattering and ensure completely undisturbed field measurements.
Portable Battery Operation
Includes a plug-in rechargeable Li-ion battery providing several hours of uninterrupted operation in the field.
Advanced FFT Measurement Technology
The FR4003 utilizes high-speed gapless FFT modes to provide rapid data acquisition across the entire frequency spectrum. This technology allows for the capture of transient signals and complex emissions that traditional swept receivers might overlook, ensuring full CISPR 16-1-1 compliance for rigorous EMC testing.
Integrated Self-Diagnostic Suite
This receiver is equipped with an on-board tracking generator and a capacitance meter to facilitate automated self-calibration and grounding verification. These built-in tools allow the user to confirm the system’s accuracy and grounding effectiveness before beginning critical electric field measurements.
