| Brand | Schlöder GmbH |
|---|---|
| Standards | IEC 61000-4-6, IEC 60601-1-2 Ed. 4.1, ISO 11452-4, MIL-STD-461 CS114 |
| Frequency Range | 4 kHz – 400 MHz (up to 1200 MHz CDG 7000-E) |
| Max Output Power | 200 W |
| BCI | Up to 500 mA closed-loop |
| Interfaces | USB, LAN, optional GPIB |
| Software | HELIA 7 |
| Warranty | 3 years |
CDG Conducted Immunity Testers

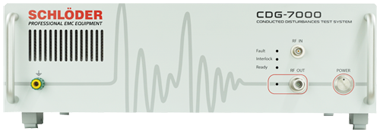

The CDG 7000 combines an RF signal generator, RF power amplifier, 3-channel RF voltmeter, and directional coupler in one versatile device for conducted immunity and BCI testing. Compliant with IEC 61000-4-6, IEC 60601-1-2 Ed. 4.1, ISO 11452-4, and MIL-STD-461 CS114, it is available in multiple power/frequency variants up to 200 W and 400 MHz. With intuitive HELIA 7 software, SCPI integration, and a 3-year warranty, it is a proven solution for industrial, medical, and military EMC labs.
Key Features
- Compliant with IEC 61000-4-6, ISO 11452-4, MIL-STD-461 CS114
- Combined signal generator, amplifier, RF voltmeter & coupler
- Multiple power variants: 25 W, 75 W, 200 W
- Frequency range from 4 kHz up to 400 MHz (up to 1200 MHz for CDG 7000-E)
- BCI testing up to 500 mA closed-loop
- Intuitive HELIA 7 software with SCPI integration
- USB, LAN, optional GPIB interfaces
- 3-year manufacturer warranty
Typical Applications
- CE/EMC compliance testing (IEC 61000-4-6)
- Medical device immunity testing (IEC 60601-1-2)
- Automotive BCI testing (ISO 11452-4)
- Military & aerospace EMC qualification (MIL-STD-461)
- In-house pre-compliance & R&D testing
| Model | Description |
|---|---|
| CDG 7000-25 | Conducted RF generator, acc. IEC 61000-4-6, Ed.5.0, 100 kHz – 250 MHz, amplifier 25W, Maximum test level: 10 V (15 V) with 80% AM (without 6 dB), Built-in directional coupler, with software HELIA 7 – Basic, USB, LAN |
| CDG 7000-75 | Conducted RF generator, acc. IEC 61000-4-6, Ed.5.0, 100 kHz – 400 MHz, amplifier 75W, Maximum test level: 30 V (40 V) with 80% AM (without 6 dB), Built-in directional coupler with Software HELIA 7 – Basic, USB, LAN |
| CDG 7000-75-10 | Conducted RF generator, acc. IEC 61000-4-6, Ed.5.0, 100 kHz – 4000 MHz, amplifier 200W, Maximum test level: 30 V (40 V) at 80% AM (without 6 dB), BCI Tests up to 500 mA closed loop, Built-in directional coupler with Software HELIA 7 – Basic, USB, LAN |
| CDG 7000-E | Conducted RF generator, acc. IEC 61000-4-6, Ed.5.0, 10kHz – 1000 MHz, no internal Amplifier, interface fo 2 external Amplifiers, Built-in directional coupler up to 200W (10kHz-1000MHz), with Software HELIA 7 – Basic, USB, LAN |
| Option | Description |
| PREAMP for CS114 | Preamplifier in its own housing, for tests according to MIL STD-462 CS 114 |
| HELIA 7 – BCI | Software extension necessary for BCI ISO/MIL tests, requires HELIA 7 – Basic |
| CDG 7 GPIB | GPIB interface for CDG 7000 series, NI’s GPIB interface delivers performance, reliability and productivity in measurement technology |
| CDG 7006-20W | 6 dB Attenuator, 20W, for test level max. 20V, N-f/ N-f |
| CDG 7006A-100W | Attenuator 6 dB, 100 W, N-f/ N-f, DC-6 GHz, Imp. 50 Ohm, |
| CDG 7020-20W | 20 dB Attenuator, 20 W, N-f/ N-f |
The Schlöder CDG 7000 is a multi-function conducted immunity test system that integrates an RF signal generator, RF power amplifier, 3-channel RF voltmeter, and directional coupler in a single instrument. Designed to simplify the test setup for IEC 61000-4-6 conducted immunity and ISO 11452-4 / MIL-STD-461 CS114 BCI testing, the CDG 7000 eliminates the need for separate rack components while providing the measurement accuracy demanded by accredited test laboratories. Available in four power/frequency configurations — 25 W (100 kHz–250 MHz), 75 W (100 kHz–400 MHz), 200 W (100 kHz–400 MHz with BCI), and the CDG 7000-E external-amplifier variant (10 kHz–1000 MHz) — the series addresses a wide range of conducted immunity and BCI applications. Closed-loop BCI testing up to 500 mA is supported with the appropriate software option, making the CDG 7000 suitable for automotive and military harness testing. HELIA 7 control software provides a structured, standards-guided workflow with SCPI integration for automated test systems. A 3-year manufacturer warranty and comprehensive accessory range — including CDNs, EM coupling clamps, current probes, and attenuators — complete the package.
All-in-one RF system
Generator, amplifier, RF voltmeter and directional coupler combined in a single instrument.
Up to 200 W / 400 MHz
Multiple power and frequency variants covering IEC 61000-4-6, ISO 11452-4 and MIL-STD-461 CS114.
BCI up to 500 mA
Closed-loop BCI testing for automotive and military cable harness immunity qualification.
HELIA 7 software
Intuitive HELIA 7 control software with SCPI integration and 3-year manufacturer warranty.
