| Brand | Schlöder GmbH |
|---|---|
| Standards | IEC 61000-4-6 |
| Frequency Range | 100 kHz – 1000 MHz (extendable to 10 kHz with NW_10) |
| Max Cable Diameter | 35 mm |
| Calibration | Supplied with calibration set and traceable calibration data |
EMCL Coupling Clamps / ABCL Decoupling Clamps
Schlöder EMCL coupling clamps and ABCL decoupling clamps are essential accessories for conducted RF immunity testing per IEC 61000-4-6, enabling clamp injection without direct cable connection. The EMCL clamps couple RF disturbance onto cables up to 20 mm (EMCL-20) or 35 mm (EMCL-35) diameter, while the ABCL clamps decouple auxiliary equipment from the test signal. Compact, robust, and easy to integrate into any CDG 7000 or CDN-based test setup.
Key Features
- For IEC 61000-4-6 conducted immunity testing
- EMCL: EM coupling clamp, cable diameter up to 20 mm or 35 mm
- ABCL: decoupling clamp, cable diameter up to 20 mm or 35 mm
- Low insertion loss: 10 V test level achievable with approx. 15 W RF amplifier power
- Supplied with calibration set and individual calibration data
- Simple clamp-on design, no cable modification needed
- Frequency range extendable to 10 kHz with EMCL-NW_10 matching network
- Compatible with CDG 7000 series and other Schlöder CDNs
Typical Applications
- CE/EMC compliance testing
- Testing cables/harnesses too large for standard CDNs
- Auxiliary equipment decoupling during immunity tests
- Industrial & automotive cable immunity testing
| Model | Description |
|---|---|
| CDN ABCL-20 | Decoupling clamp for immunity, acc. IEC 61000-4-6, 100 kHz – 1000 MHz, cable diameter max. 20mm. |
| CDN ABCL-35 | Decoupling clamp for immunity, acc. IEC 61000-4-6, 100 kHz – 1000 MHz, cable diameter max. 35mm. |
| CDN EMCL-20 | EM clamp acc. to /EC/EN 61000-4-6 incl. calibration kit and factory calibration, traceable, cable diameter max. 20 mm |
| CDN EMCL-35 | EM clamp acc. to /EC/EN 61000-4-6 incl. calibration kit and factory calibration, traceable, cable diameter max. 35 mm |
| Option | Description |

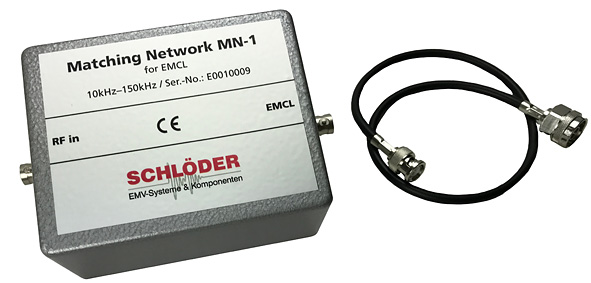

| CDN-EMCL-NW_10 | Matching network 10kHz – 150kHz, for using EMCL 20 and BCI-P1 from 10kHz to 150kHz/1 MHz |
| KAL SET EMCL | Calibration set for EMCL, acc. IEC 61000-4-6 |
Schlöder EMCL EM coupling clamps and ABCL decoupling clamps provide a practical solution for conducted RF immunity testing on cables and harnesses where a direct CDN connection is not possible. Compliant with IEC 61000-4-6, the EMCL clamps couple the RF disturbance signal onto cables without requiring any modification to the cable or its connectors — the clamp simply closes around the cable bundle. Two cable diameter versions are available for each clamp type: up to 20 mm (EMCL-20 / CDN ABCL-20) and up to 35 mm (EMCL-35 / CDN ABCL-35). The low insertion loss of the EMCL design means the standard 10 V test level can be achieved with approximately 15 W of RF amplifier power. Each unit is supplied with a calibration set and individual calibration data traceable to national standards. For applications requiring coverage below 100 kHz, the optional EMCL-NW_10 matching network extends the frequency range down to 10 kHz, allowing use with the BCI-P1 probe for combined low- and high-frequency conducted immunity testing.
Clamp-on RF coupling
Couple RF disturbances onto cables up to 35 mm diameter without any cable modification.
Low insertion loss
10 V test level achievable with only ~15 W amplifier power — efficient and cost-effective.
Traceable calibration
Supplied with calibration set and individual calibration data traceable to national standards.
Extendable to 10 kHz
Optional EMCL-NW_10 matching network extends frequency coverage down to 10 kHz.
