9010 Series (Full-Compliant)

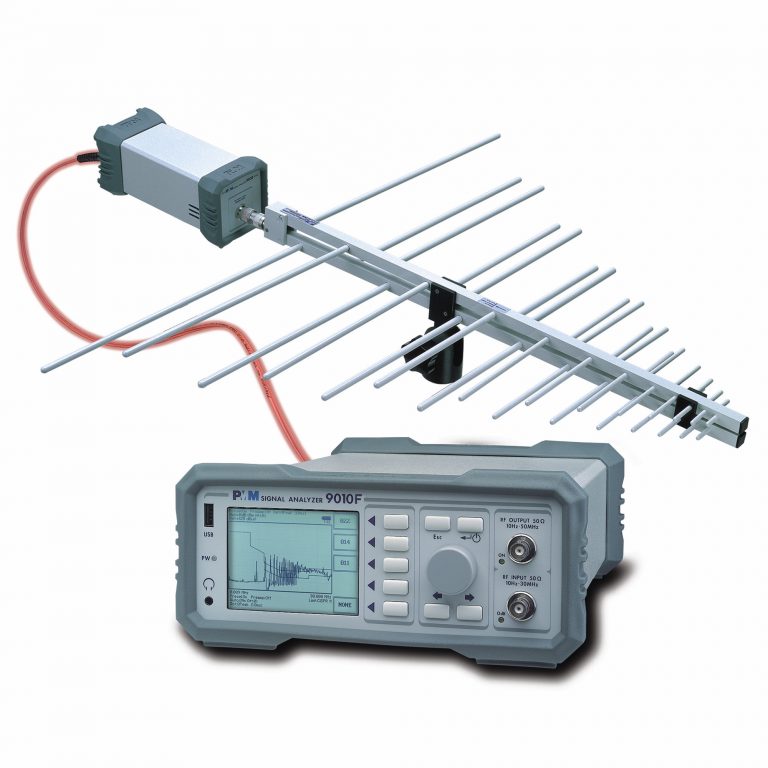

The 9010 Series (Full-Compliant) is a powerful EMI Receiver and Analyzer designed to measure conducted and radiated disturbances with maximum speed. It offers a base frequency range of 10 Hz to 30 MHz, extendable up to 18 GHz when matched with 9030, 9060, or 9180 extension units. This series reduces test times from hours to seconds using state-of-the-art digital technology and FFT time domain analysis.
Key Specifications & Features
- Frequency Range: 10 Hz to 30 MHz (extendable to 3, 6, or 18 GHz)
- Compliance: Fully compliant with CISPR 16-1-1 and MIL-STD-461
- Noise Floor: < -24 dBµV in Band A and < -7 dBµV in Band B
- Detectors: All CISPR detectors operating simultaneously
- Digital Filters: CISPR RBW 200 Hz and 9 kHz (120 kHz and 1 MHz with extensions)
- 6 dB RBW Filters: 1, 3, 10, 30, and 100 kHz
- Fast Analysis: FFT Time domain EMI receiver (9010F model)
- Expansion: Modular support for 9030, 9060, and 9180 units
| 9030 | Extension unit 30 MHz – 3 GHz for model 9010 and 9010F CISPR 16-1-1 full compliance, MIL-STD full compliance (option) |
| 9060 | Extension unit 30 MHz – 6 GHz for model 9010 and 9010F CISPR 16-1-1 full compliance, MIL-STD full compliance (option) |
| AMK-01 | Antenna Mounting Kit for PMM BC-01, LP-02, LP-03, LP-04 and other antennas with Ø 22 mm tail, for direct connection with HF Receiver Modules 9030 and 9060 |
| AMK-02 | Antenna Mounting Kit specific for BL-01, for direct connection with HF Receiver Modules 9030 and 9060 |
| 9010/CLICK | 1-Channel Click Analyzer function for 9010 and 9010F, fully compliant to CISPR 14-1 and CISPR 16-1-1 |
| 9010/RAV | CISPR 16-1-1 RMS-Average Detector |
| 9010F | FFT Time domain EMI receiver, CISPR 16-1-1 full compliance 9 kHz – 30 MHz, MIL-STD full compliance 10 Hz – 30 MHz (option) |
No downloads available.
9010 Series (Full-Compliant)
The 9010 Series represents a breakthrough in EMI testing, providing a fully compliant solution for CISPR 16-1-1 and MIL-STD-461 standards. Designed for both conducted and radiated disturbance measurements, the series covers a standard range of 10 Hz to 30 MHz. By utilizing the 9010F model, users can leverage FFT Time domain technology to reduce total test time from several hours down to just seconds.
This series is built on state-of-the-art digital technology to ensure high precision and an ultra-low noise floor of less than -24 dBµV in Band A. It features a comprehensive suite of CISPR and 6 dB RBW filters, ranging from 200 Hz to 100 kHz, with further expansions available through external modules. All CISPR detectors function simultaneously, allowing for exhaustive analysis of electromagnetic interference in a single pass.
To meet evolving testing requirements, the 9010 Series is easily extendable to 3 GHz, 6 GHz, or 18 GHz using the 9030, 9060, and 9180 extension units respectively. Optional features like the 9010/CLICK analyzer and the 9010/RAV RMS-Average detector provide specialized functionality for CISPR 14-1 compliance. Additionally, antenna mounting kits such as the AMK-01 and AMK-02 allow for direct connection with HF receiver modules for streamlined setups.
Full Regulatory Standard Compliance
Certified for CISPR 16-1-1 and MIL-STD-461 requirements for conducted and radiated disturbances.
Ultra-Low System Noise Floor
Achieve superior sensitivity with a noise floor below -24 dBµV in Band A and -7 dBµV in Band B.
Simultaneous Digital Detector Processing
Analyze signals using all CISPR detectors at once to maximize data collection efficiency.
Flexible High-Frequency Modular Extensions
Extend frequency coverage up to 18 GHz using plug-and-play modules like the 9030 and 9060.
High-Speed FFT Time Domain Analysis
The 9010F model incorporates advanced FFT Time domain capabilities to drastically accelerate EMI measurements. This technology allows for the rapid capture of disturbances across the 9 kHz to 30 MHz range, maintaining full CISPR 16-1-1 compliance while finishing tests in a fraction of the time required by traditional receivers.
Seamless Frequency Extension Modules
The modular design of the 9010 Series allows it to grow alongside your testing needs through external extension units. By integrating the 9030, 9060, or 9180 units, the system achieves full compliance for radiated measurements up to 18 GHz, providing a flexible and cost-effective path for high-frequency EMI analysis.
