| Brand | Eurofins E&E |
|---|---|
| Frequency Range | 100 MHz to 18 GHz |
| Signal Type | Broadband reference comb source |
| Output connector | Precision SMA |
| Conducted operation | Direct 50 Ω connection |
CGE

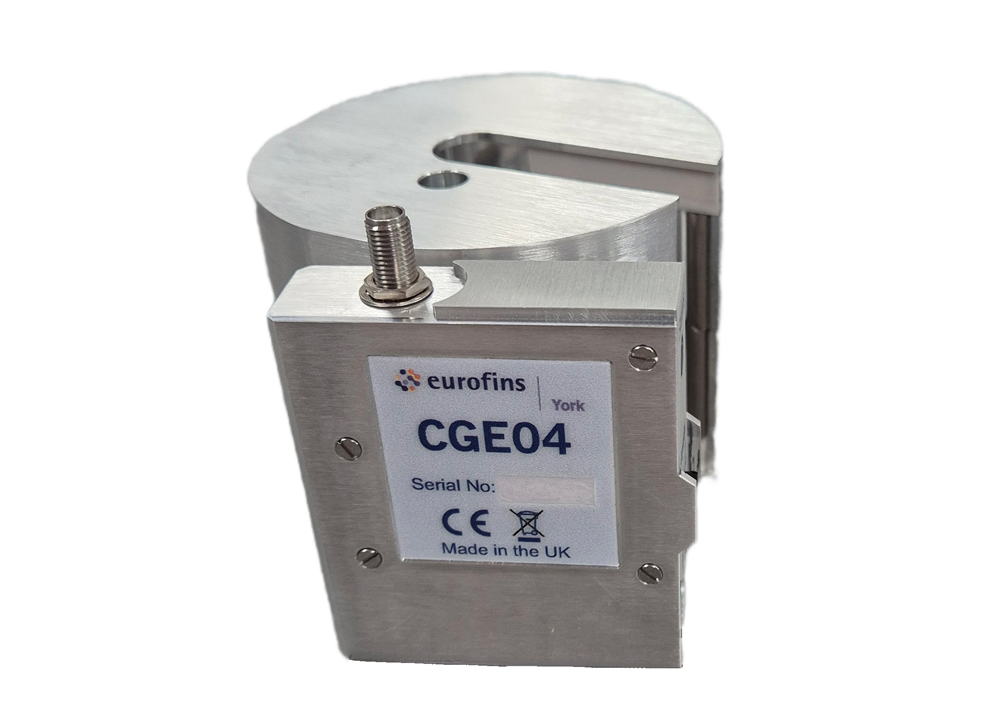

The CGE series is a broadband reference comb source designed for verification and characterisation of radiated and conducted EMC measurement environments. These emitters offer high-frequency coverage up to 40 GHz with stable and repeatable reference signals. The compact metal enclosure and battery operation ensure minimal interference for precise test site comparisons.
Key Specifications & Features
- Frequency Range: 100 MHz to 40 GHz (model dependent)
- Signal Stability: Stable and repeatable output for reliable measurements
- Application: Radiated and conducted EMC verification
- Power Options: Internal battery or external power operation
- Enclosure: Compact metal housing for ground plane mounting
- Flexibility: Selectable comb frequencies for various test requirements
- Antenna Options: Compatible with MCN02 and MCN05 monocone antennas
- Compatibility: Ideal for anechoic and semi-anechoic chamber evaluation
- CGE04KIT01 Comb Generator Emitter 100 MHz to 18 GHz, Standard reference source kit CGE04KIT02 Comb Generator Emitter 100 MHz to 18 GHz, Kit Including MCN02-SMA Antenna CGE06KIT01 Comb Generator Emitter 915 MHz to 40 GHz, Standard reference source kit CGE06KIT02 Comb Generator Emitter 915 MHz to 40 GHz, Kit Including MCN02-K Antenna CGE06KIT03 Comb Generator Emitter 915 MHz to 40 GHz, Kit Including MCN02-K and MCN05 Antenna MCN02-SMA 50 mm diameter monocone antenna, SMA connector ((1 GHz to 18 GHz optimum operation with CGE04) MCN02-K 50 mm diameter monocone antenna, K-connector (1 GHz to 26 GHz optimum) MCN05 Monocone antenna, K-connector (26 to 40 GHz optimum) Broadband reference comb source for EMC environments
- Frequency coverage from 100 MHz to 18 GHz
- Stable and repeatable output for reliable measurements
- Selectable comb frequencies for flexible applications
- Supports radiated and conducted measurements
CGE
The CGE series broadband reference comb sources are essential tools for the characterisation of EMC measurement environments. They provide a stable, repeatable signal across a wide frequency spectrum, making them ideal for verifying anechoic chambers and evaluating site-to-site variation. Whether used for radiated or conducted tests, these generators ensure that measurement setups remain consistent over time.
Constructed with a rugged metal enclosure, the CGE is designed to be mounted directly to a ground plane to simulate realistic test conditions. The unit can be powered by an internal battery or an external source, a feature specifically designed to minimize the influence of power cables on the radiated field. This attention to detail ensures high-quality reference signals for dynamic range evaluation and system checks.
The series includes the CGE04, covering 100 MHz to 18 GHz, and the CGE06, which extends performance from 915 MHz up to 40 GHz. Various kit options are available, including specialized monocone antennas like the MCN02-SMA, MCN02-K, and MCN05 to optimize performance across specific frequency bands. Users can select from several comb frequencies to tailor the output to their specific testing and calibration needs.
High Frequency Coverage
Models available covering the spectrum from 100 MHz up to 40 GHz.
Stable Reference Signals
Provides highly repeatable output for consistent EMC site characterisation and comparison.
Dual Power Modes
Supports battery or external power operation to minimize cable-related measurement errors.
Robust Shielded Design
Features a compact metal enclosure suitable for direct ground plane mounting.
Versatile EMC Environment Verification
The CGE series provides a reliable reference for both radiated and conducted EMC measurement environments, ensuring consistency in test results. It is specifically engineered for characterizing anechoic chambers, semi-anechoic chambers, and open area test sites to detect potential setup errors.
Optimized Power and Connectivity
To maintain signal integrity, the CGE can operate on internal battery power, which eliminates the parasitic effects of external cabling during sensitive measurements. The inclusion of high-performance monocone antennas like the MCN05 ensures optimum operation even at millimeter-wave frequencies up to 40 GHz.
