| Brand | Tekbox |
|---|
Horn Antennas

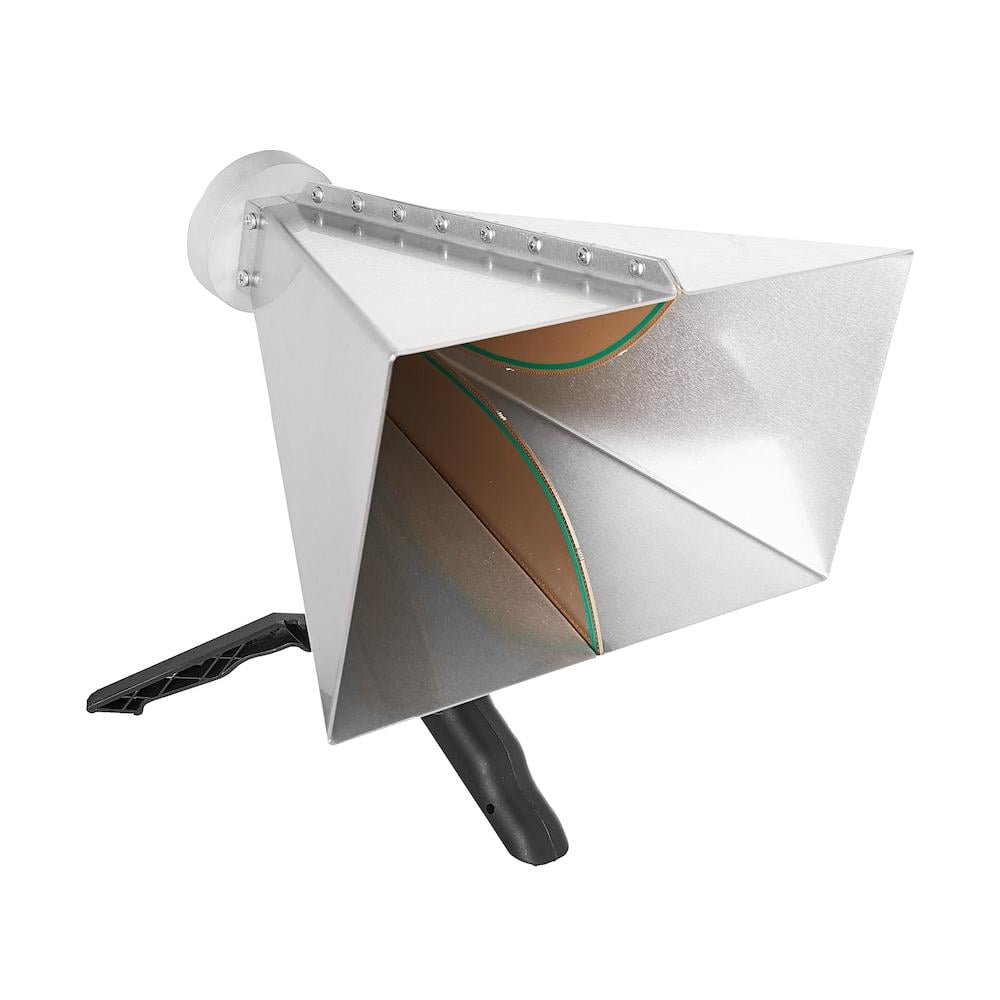

The TBMA4 Horn Antenna is a high-frequency antenna designed to support electromagnetic compatibility (EMC) and RF testing. It delivers a highly directional radiation pattern across a frequency range of 1000 MHz to 8000 MHz. This series provides the stability and defined polarization required for precise immunity testing and laboratory calibration.
Key Specifications & Features
- Frequency Range: 1000 MHz to 8000 MHz
- Power Handling: 100W
- Antenna Factor: 24 to 34 dB/m
- Radiation Pattern: Directional
- Polarization: Defined characteristics
- Application: RF immunity testing
- Design: Optimized for higher RF frequencies
- Usage: Calibration and test setups
| Model | Frequency Range | Output Power | Gain |
|---|---|---|---|
| TBMA4 | 1000..8000 MHz | 100 W | 24..34 dB/m |
Horn Antennas
The TBMA4 series Horn antenna is engineered for professional-grade performance in high-frequency RF environments. Operating from 1000 MHz to 8000 MHz, it serves as a critical component for electromagnetic compatibility (EMC) assessments and signal monitoring. Its directional nature ensures focused energy and high gain for both emissions testing and immunity evaluations. Constructed to provide defined polarization characteristics, this antenna offers the reliable repeatability essential for complex test setups. With a maximum power handling capability of 100W, it is robust enough for demanding laboratory conditions and rigorous testing cycles. The design minimizes measurement uncertainty by maintaining a stable antenna factor ranging from 24 to 34 dB/m across its bandwidth. This product series is ideal for users requiring precise calibration and standardized test configurations in the gigahertz range. The TBMA4 model supports a wide bandwidth, which significantly reduces the need for multiple antenna swaps during broad frequency sweeps. Tailored solutions and specific configurations are available to ensure seamless integration into various professional test and measurement stands.Wide Frequency Coverage
Operates across a broad 1000 MHz to 8000 MHz range for versatile high-frequency RF testing.
High Power Capacity
Supports up to 100W of power for rigorous immunity and susceptibility testing applications.
Directional Radiation Pattern
Features focused radiation characteristics to ensure precise measurement and signal targeting during tests.
Defined Polarization Control
Provides stable and predictable polarization for consistent calibration and EMC setup results.
Precision RF Testing
The TBMA4 Horn antenna is optimized for high-frequency applications requiring a highly directional radiation pattern. It provides the necessary gain and focus to perform accurate RF immunity testing and detailed calibration tasks within professional laboratory environments.
Robust Power Handling
Designed to handle up to 100W of power, this antenna series is suitable for intensive electromagnetic compatibility evaluations. Its stable antenna factor across the 1000-8000 MHz range ensures consistent and repeatable results for standardized test setups.
