| Brand | AE Techron |
|---|---|
| Bandwidth | DC to 250 kHz |
| Voltage | 0 to 250 VRMS; 0 to 350 VDC |
| Slew rate | Up to 300 V/µs |
| Current | Up to 60 to 360 ARMS* |
Switch-Mode Amplifier 8700
The AE Techron Switch-Mode Amplifier 8700 is a high-power amplifier series designed for DC and low-frequency applications up to 250 kHz. It combines switch-mode efficiency with low noise, controlled distortion, and a high slew rate for precision testing. This series is uniquely capable of driving both resistive and reactive loads with no loss of rated output power.
Key Specifications & Features
- Frequency Range: DC to 250 kHz
- Operation: Four-quadrant (source and sink)
- Output Current: Up to 180A RMS (Model 8712)
- Load Stability: Stable with resistive, inductive, and capacitive loads
- Operating Modes: Field-selectable controlled-voltage or controlled-current
- Input Options: Single-phase and three-phase power configurations
- Slew Rate: Very high slew rate for fast transient waveforms
- Scalability: Units range from bench-top to high-power cabinet systems
| 8712 | 180A RMS, Three-phase, 208V ±10%, 30A, 50/60 Hz; 400V ±10%, 30A version available |

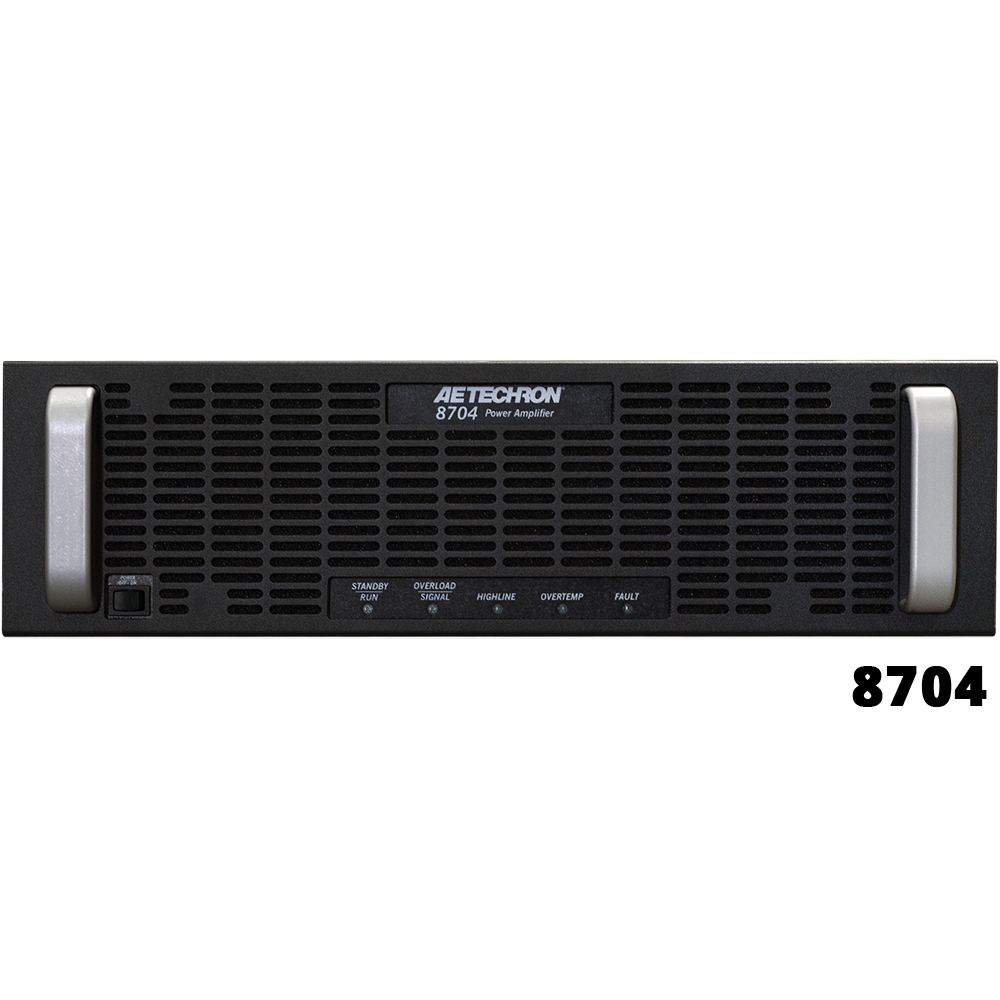

| 8704 | 60A RMS, Single-phase, 208V ±10% 30A, 50/60 Hz, 230/240V ±10%, 30A version available |
| 8708 | 120A RMS, Three-phase, 208V ±10%, 30A, 50/60 Hz; 400V ±10%, 30A version available |
Switch-Mode Amplifier 8700
The AE Techron 8700 Series consists of high-power switch-mode amplifiers optimized for demanding laboratory, industrial, and EMC conducted immunity applications. These units excel in DC and low-frequency operations, providing a wide bandwidth that reaches up to 250 kHz. Their architecture is specifically designed to provide high efficiency without compromising the precision required for dynamic testing environments. Constructed with a four-quadrant operation design, these amplifiers can both source and sink power, ensuring they remain stable when driving complex inductive or capacitive loads. The series features field-selectable controlled-voltage or controlled-current modes, allowing operators to tailor the amplifier's performance to the specific requirements of the test load. This versatility is supported by a high slew rate, making the 8700 Series ideal for generating the fast transient waveforms necessary for modern immunity standards. The 8700 Series is highly scalable, offering models that range from compact bench-top units to large-scale high-power cabinet systems. Available models include the 8704, which provides 60A RMS on single-phase power, as well as the 8708 and 8712, which provide 120A and 180A RMS respectively on three-phase power. With multiple voltage input options including 208V and 400V configurations, these amplifiers can be integrated into a wide variety of global power environments.Wide Frequency Range
Provides precise operation from DC up to 250 kHz for diverse testing requirements.
High Current Capacity
Delivers up to 180A RMS with the 8712 model for high-power industrial applications.
Reactive Load Stability
Maintains full rated output power while driving inductive and capacitive loads without instability.
Flexible Power Inputs
Available in single-phase and three-phase configurations to suit different laboratory power standards.
Four-Quadrant Source and Sink
The 8700 Series features a sophisticated four-quadrant architecture that allows the amplifier to act as both a power source and a power sink. This capability is essential for maintaining stability and precision when driving reactive loads, such as large inductors or capacitors, without the loss of rated output power.
Field-Selectable Operating Modes
Users can easily switch between controlled-voltage and controlled-current operation modes to match the specific needs of their application. This flexibility, combined with a wide 250 kHz bandwidth, ensures the amplifier can handle everything from standard industrial tasks to high-speed EMC conducted immunity testing.
