| Brand | AE Techron |
|---|---|
| Bandwidth | DC to 50 kHz |
| Voltage | 0 to 260 VRMS; 0 to 400 VDC |
| Slew rate | Up to 80 V/µs |
| Current | Up to 80 ARMS* |
Switch-Mode Amplifier 8600

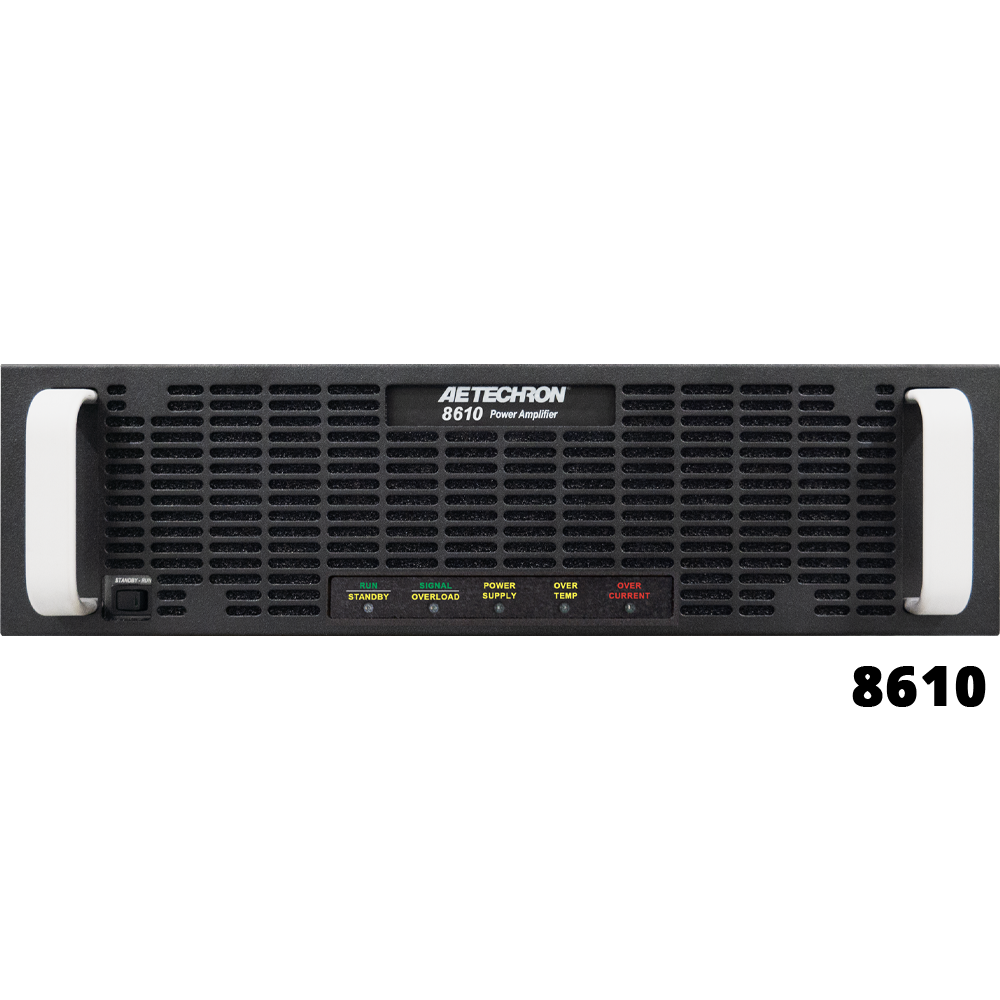

The AE Techron 8600 Series is a high-power switch-mode amplifier designed for DC and low-frequency applications up to 50 kHz. It combines high efficiency with a high slew rate and low noise floor, making it ideal for demanding EMC conducted immunity testing. This series is uniquely capable of driving both resistive and reactive loads with no loss of rated output power.
Key Specifications & Features
- Frequency Range: DC to 50 kHz
- Maximum Current: Up to 240A RMS (Model 8630)
- Operation Modes: Field-selectable controlled-voltage or controlled-current
- Load Compatibility: Stable with resistive, inductive, and capacitive loads
- Power Architecture: Four-quadrant operation (source and sink)
- System Scalability: Available from bench-top units to high-power cabinet systems
- Input Options: Three-phase 208V or 400V AC power configurations
- Performance: Low noise floor and low distortion for precise signal reproduction
| 8610 | 80A RMS, Three-phase, 208V ±10% 30A, 50/60 Hz, 400VAC ±10%, |
| 8620 | 160A RMS, Three-phase, 208V ±10% 60A, 50/60 Hz, 400VAC ±10%, |
| 8630 | 240A RMS, Three-phase, 208V ±10% 90A, 50/60 Hz, 400VAC ±10%, |
Switch-Mode Amplifier 8600
The AE Techron 8600 Series represents a significant advancement in high-power switch-mode amplifier technology, specifically engineered for DC and low-frequency applications. These amplifiers are optimized for laboratories and industrial environments that require precise control over transient waveforms. With a frequency response extending up to 50 kHz, the 8600 Series provides the power and bandwidth necessary for complex EMC conducted immunity testing. Built on a robust four-quadrant architecture, these units can both source and sink power, ensuring stability when driving highly reactive inductive or capacitive loads. The series features a high slew rate and a low noise floor, which are critical for maintaining signal integrity during high-speed transitions. Additionally, users can easily switch between controlled-voltage and controlled-current operation modes in the field to suit specific test requirements. The 8600 Series offers a scalable range of models, including the 8610 (80A), 8620 (160A), and 8630 (240A), to accommodate various power demands. These systems are available in three-phase power configurations of 208V or 400V AC, supporting both 50 Hz and 60 Hz environments. Whether used as a standalone bench-top unit or integrated into a high-power cabinet system, the 8600 Series delivers consistent, efficient performance for the most demanding applications.High Current Output
The series provides up to 240A RMS current for demanding high-power testing.
Wide Frequency Range
Supports precise DC and low-frequency operations from DC up to 50 kHz.
Flexible Power Input
Models support three-phase 208V or 400V AC inputs at 50/60 Hz.
Optimized for EMC
High slew rate and low distortion make it ideal for conducted immunity applications.
Four-Quadrant Operation and Load Stability
The 8600 Series features a sophisticated four-quadrant architecture that allows the amplifier to act as both a source and a sink. This capability ensures the system remains stable and maintains rated output power even when driving challenging resistive, inductive, or capacitive loads.
Versatile Control and High Efficiency
These amplifiers utilize a high-efficiency switch-mode design that minimizes heat dissipation while providing high power density. Users benefit from field-selectable operation modes, allowing for seamless transitions between controlled-voltage and controlled-current configurations based on application needs.
