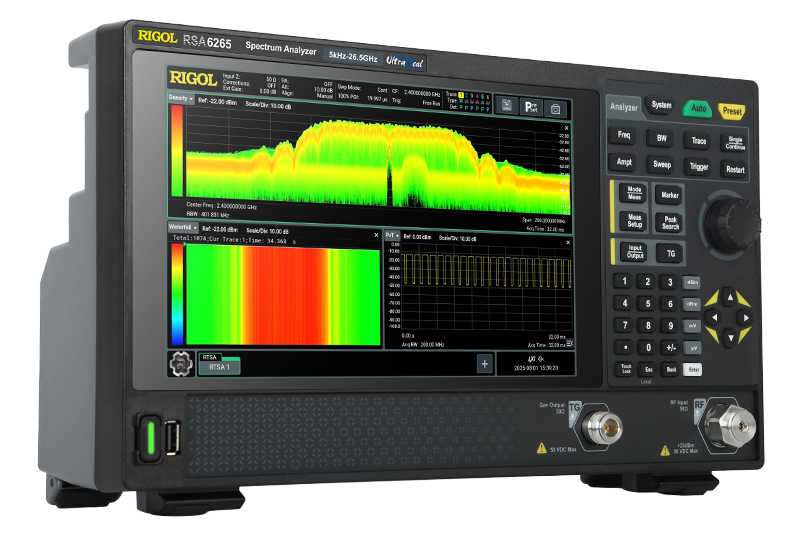

RSA6000 Series Real Time Spectrum Analyzer
The ultimate tool for engineers breaking boundaries in spectrum analysis with next-level performance and real-time transient capture.
- 5 kHz to 26.5 GHz frequency range for everything from low-frequency comms to microwave radar
- 200 MHz real-time bandwidth with 4 THz/s sweep speed for precise transient signal capture
- All-in-one platform with five modes in one device: GPSA, RTSA, VSA, EMI, ADM
- Built-in preamp and tracking generator for maximum flexibility
- Compact and portable design with touch + key operation and remote web control
- USB, LAN, HDMI interfaces with SCPI compatibility for easy integrationDeploy anywhere, anytime for R&D, validation, and compliance.
Features
- Frequency Range : 5 kHz – 26.5 GHz
- Sweep Speed 4 THz/s
- Phase Noise (1 GHz, 10 kHZ) -108 dBc/Hz (typ)
- Real Time / Analysis Bandwidth : 200 MHz
- DANL (1 Ghz) : -163 dBm (typ.)
- Amplitude Accuracy : +/- 0.7 dB
More information
Visit the RSA6000 page for more information
