| Brand | RIGOL |
|---|---|
| Frequency Range | 5 kHz ~ 14 GHz |
| Ports | 2-Port |
| Frequency resolution | 1 Hz |

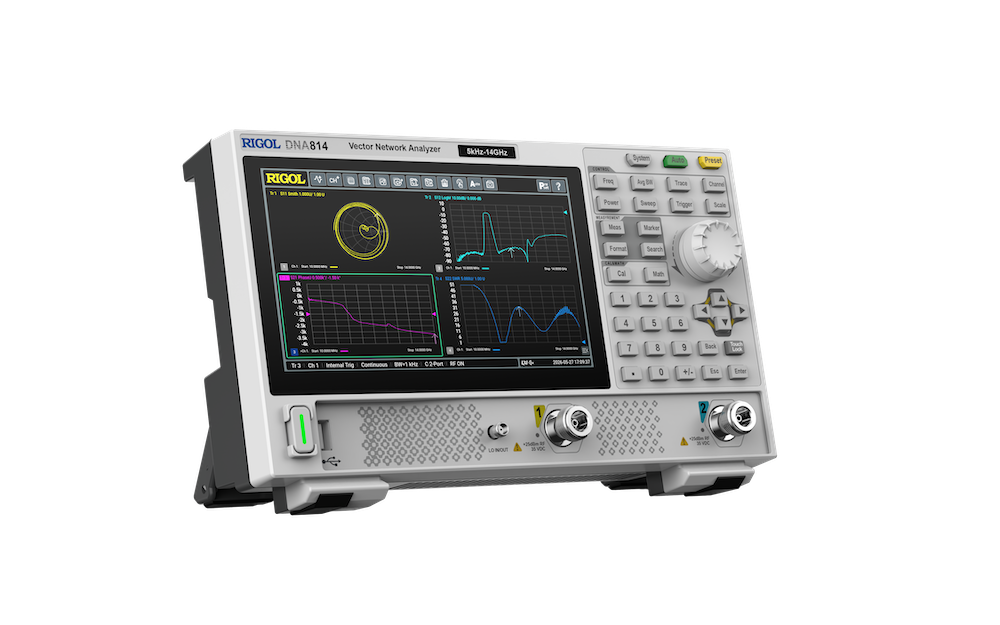

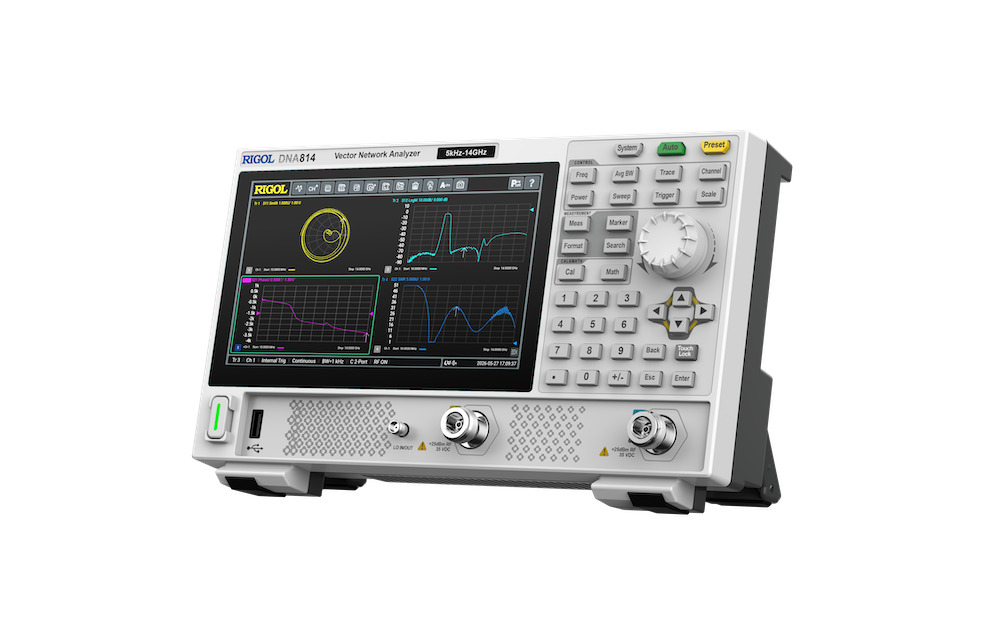

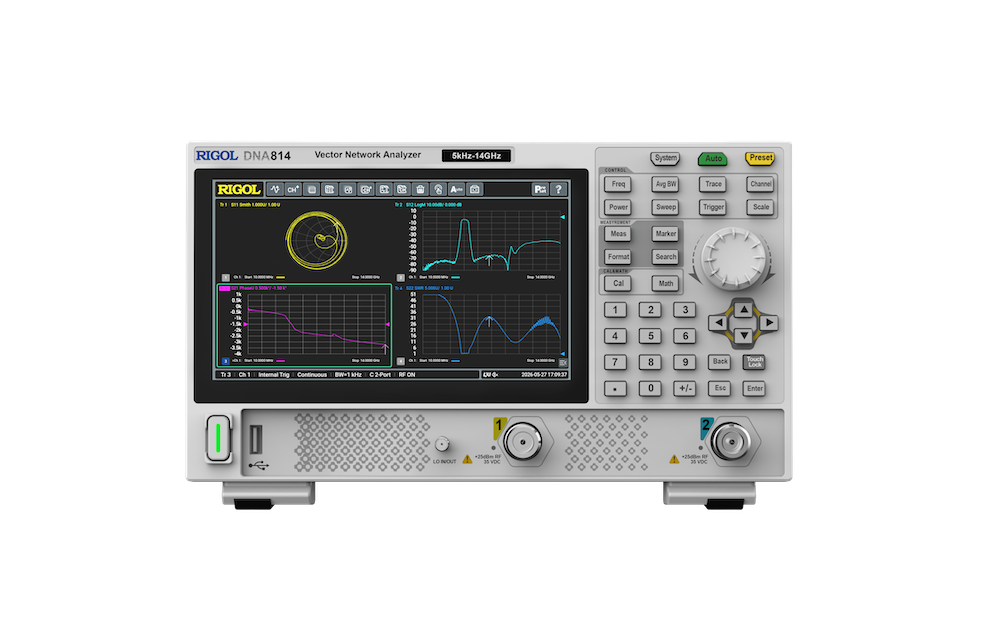

DNA800 2-Port Compact VNA
The DNA800 is a compact 2-port VNA covering 5 kHz to 14 GHz with 125 dB dynamic range, 1 Hz frequency resolution, and a 7-inch HD touchscreen — in a 1.9 kg portable package. Three frequency variants available: 4.5 GHz, 8.5 GHz, and 14 GHz.
Key Features
- Frequency range from 5 kHz to 4.5 / 8.5 / 14 GHz
- High dynamic range up to 125 dB typical
- Trace noise as low as 0.005 dB
- Frequency resolution 1 Hz, IF bandwidth 1 Hz to 3 MHz
- Max. output power 10 dBm
- S-parameters, impedance, VSWR, TDA, fixture embedding/de-embedding, antenna test
- 7-inch 1024×600 HD touchscreen display
- Compact size (265 × 162 × 77 mm), weight 1.9 kg

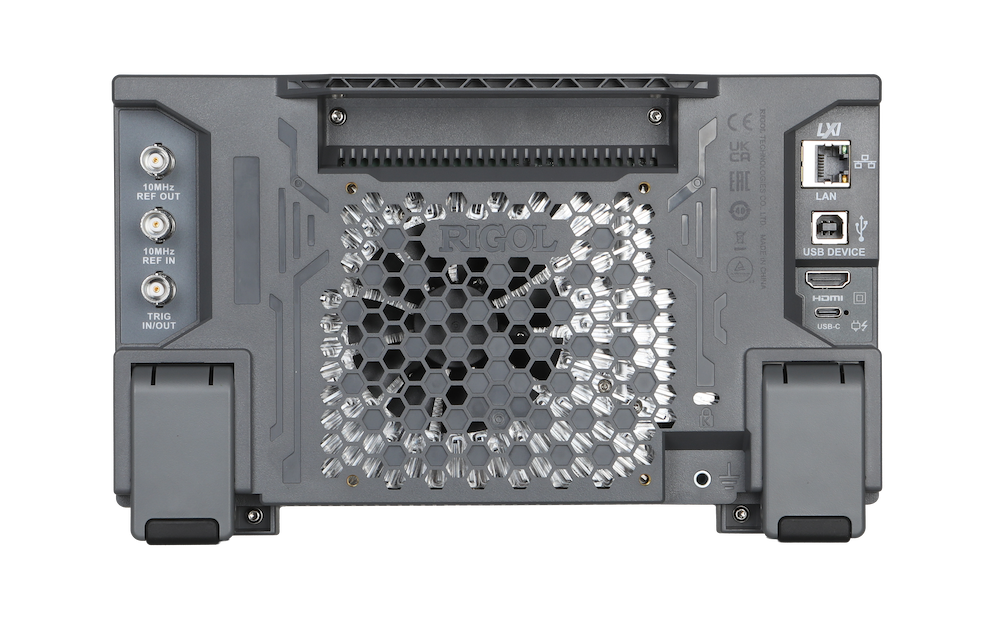

- LAN, USB Device, USB Host, HDMI interfaces
- SCPI command support and Web Control for remote operation
- Compatible with mechanical and ECal electronic calibration kits
- Optional rack mount kit, Time-Domain Analysis, and Distance-to-Fault
| Model | Ports | Frequency range |
|---|---|---|
| DNA804 | 2-port | 5 kHz – 4.5 GHz |
| DNA808 | 2-port | 5 kHz – 8.5 GHz |
| DNA814 | 2-port | 5 kHz – 14 GHz |
| Option | Description | |
| RM5041 | Ultra-Portable Platform Rack Mount Kit | |
| DNA-TDA10 | TDA — Time-Domain Analysis | |
| DNA-DTF10 | DTF — Distance to Fault | |
DNA800 2-Port Compact VNA
The DNA800 Series is a compact 2-port Vector Network Analyzer platform offering frequency coverage from 5 kHz up to 14 GHz in a lightweight, portable form factor. Weighing just 1.9 kg and featuring a 7-inch HD touchscreen, the DNA800 is designed for engineers and technicians who need reliable VNA performance without the size and cost of a full bench-top instrument. The platform delivers high dynamic range up to 125 dB typical, trace noise as low as 0.005 dB, and 1 Hz frequency resolution with IF bandwidth from 1 Hz to 3 MHz. Measurement capabilities include S-parameters, impedance, VSWR, time-domain analysis, fixture embedding and de-embedding, and antenna testing — covering the full range of passive RF component characterization workflows. With LAN, USB, and HDMI interfaces, SCPI command support, and Web Control for remote operation, the DNA800 integrates easily into lab automation environments. Support for both mechanical and ECal electronic calibration kits ensures measurement accuracy across all supported frequency ranges.Compact & portable
265 × 162 × 77 mm, 1.9 kg — full VNA capability in a truly portable package for lab and field use.
125 dB dynamic range
High dynamic range up to 125 dB typical with trace noise as low as 0.005 dB for precise measurements.
All-in-one measurement
S-parameters, impedance, VSWR, TDA, antenna test, and fixture embedding — all in one instrument.
7" HD touchscreen
1024×600 HD touch display with LAN, USB, HDMI and Web Control for intuitive local and remote operation.
Versatile measurement platform for every environment
The DNA800 supports a comprehensive set of display formats including log magnitude, linear magnitude, SWR, phase, group delay, Smith chart, and polar chart — giving engineers a complete picture of RF network behavior. Whether characterizing filters, antennas, cables, or impedance matching networks, the DNA800 provides the measurement depth typically found in larger, more expensive instruments.
Ready for education and professional use
With its intuitive touchscreen interface, lightweight design, and optional rack mount kit, the DNA800 is equally at home in university RF laboratories, IoT development environments, automotive electronics testing, and field maintenance workflows. The optional TDA Time-Domain Analysis and DTF Distance-to-Fault functions add advanced diagnostic capability for cable and antenna characterization directly in the field.
