| Brand | RIGOL |
|---|---|
| Frequency Range | 5 kHz – 26.5 GHz |
| Ports | 2 or 4 ports |
| Form factor | 1U rack-mount |
| Dynamic range | Up to 127 dB typical |
DNA6000-R 2/4 Port Rack Mount VNA
The DNA6000-R is a compact 1U rack-mount VNA covering 5 kHz to 26.5 GHz with up to 127 dB dynamic range and trace noise as low as 0.003 dB. Available in 2-port and 4-port configurations across four frequency bands, with full remote control and optional time-domain analysis.
Key Features
- Frequency range from 5 kHz to 26.5 GHz
- Available in 2-port and 4-port configurations
- Models covering 8.5 GHz, 14 GHz, 20 GHz, and 26.5 GHz
- High dynamic range up to 127 dB typical
- Trace noise as low as 0.003 dB rms
- Frequency resolution of 1 Hz, IF bandwidth from 1 Hz to 10 MHz
- Compact 1U rack-mount form factor (432 × 43.9 × 440 mm)

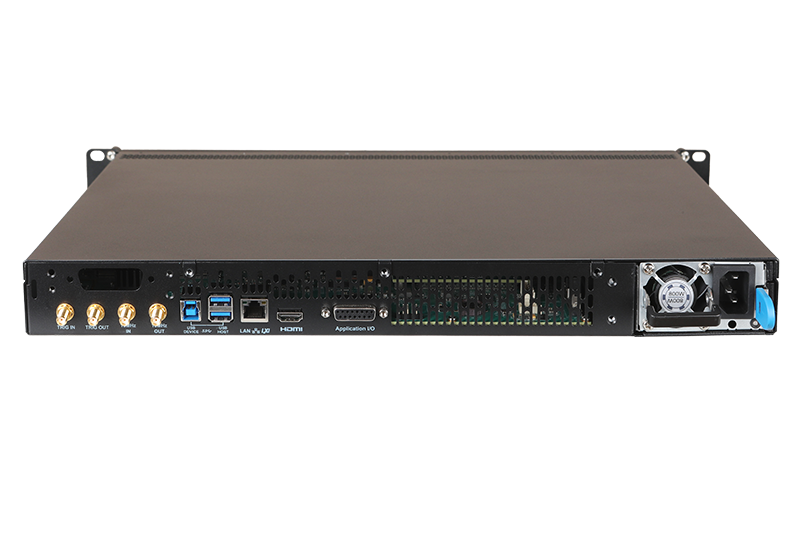

- LAN, USB, HDMI, GPIB and Application I/O interfaces
- SCPI command support and Web Control for remote operation
- Compatible with mechanical and ECal electronic calibration kits
- Optional TDA Time-Domain Analysis and DTF Distance-to-Fault functions
| Model | Ports | Frequency range | Connector |
|---|---|---|---|
| DNA6082-R | 2-port | 5 kHz – 8.5 GHz | N(f) |
| DNA6084-R | 4-port | 5 kHz – 8.5 GHz | N(f) |
| DNA6142-R | 2-port | 5 kHz – 14 GHz | N(f) |
| DNA6144-R | 4-port | 5 kHz – 14 GHz | N(f) |
| DNA6202-R | 2-port | 5 kHz – 20 GHz | 3.5 mm |
| DNA6204-R | 4-port | 5 kHz – 20 GHz | 3.5 mm |
| DNA6262-R | 2-port | 5 kHz – 26.5 GHz | 3.5 mm |
| DNA6264-R | 4-port | 5 kHz – 26.5 GHz | 3.5 mm |
| Option | Description | ||
| DNA-TDA10 | TDA — Time-Domain Analysis | ||
| DNA-DTF10 | DTF — Distance to Fault | ||
DNA6000-R 2/4 Port Rack Mount VNA
The DNA6000-R Series is a compact 1U rack-mount Vector Network Analyzer designed for integration into ATE systems, RF production testing environments, and system integration workflows. Combining high-performance VNA measurement capability with an industry-standard rack form factor, the DNA6000-R delivers reliable and repeatable S-parameter measurements across a wide range of applications. With frequency coverage starting from 5 kHz up to 26.5 GHz, dynamic range up to 127 dB typical, and trace noise as low as 0.003 dB, the DNA6000-R Series provides measurement accuracy typically associated with larger bench-top instruments — in a footprint of just 1U. Available in 2-port and 4-port configurations across four frequency bands, the series covers passive RF component testing, wireless communication development, R&D laboratories, and educational environments. Extensive connectivity options including LAN, USB, HDMI, GPIB, and Application I/O, combined with SCPI command support and Web Control, make the DNA6000-R easy to integrate into automated test systems. Optional Time-Domain Analysis (TDA) and Distance-to-Fault (DTF) software functions further extend measurement capability without requiring additional hardware.Compact 1U rack format

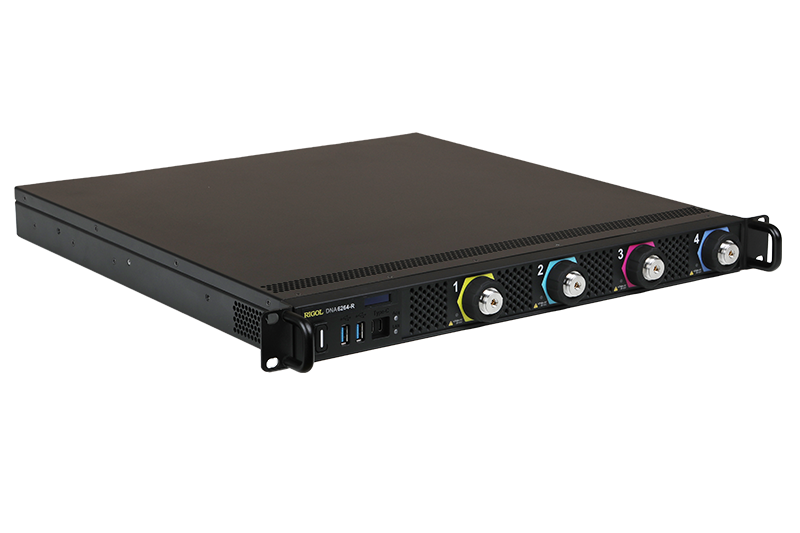

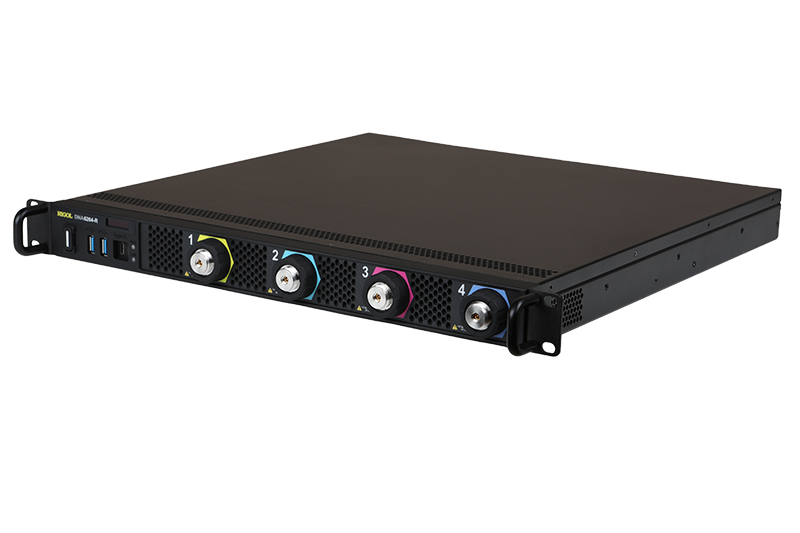

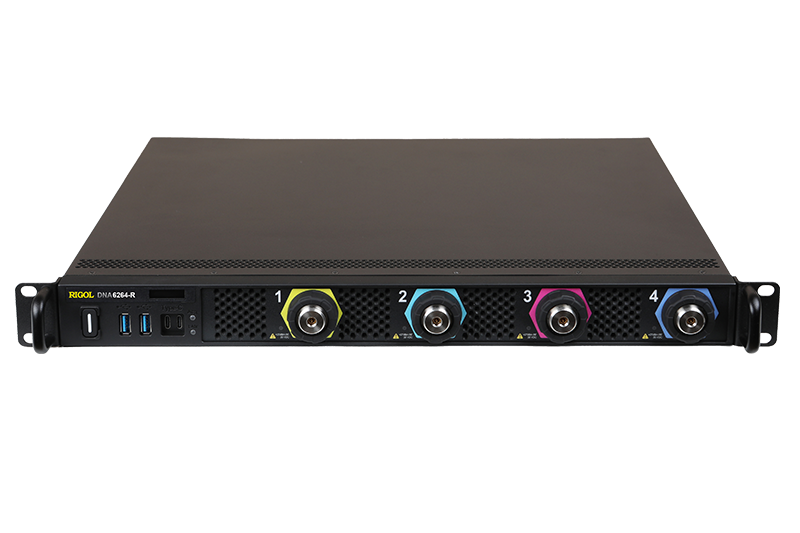

Standard 1U form factor ideal for ATE systems, rack integration, and space-constrained production environments.
127 dB Dynamic Range
High dynamic range up to 127 dB typical with trace noise as low as 0.003 dB rms for accurate measurements.
5 kHz to 26.5 GHz
Wide frequency coverage across four bandwidth options — 8.5, 14, 20, and 26.5 GHz in 2-port or 4-port configurations.
Full remote control
LAN, USB, GPIB, HDMI and Web Control with SCPI support for seamless integration into automated test systems.
Built for automated test and system integration
The DNA6000-R is engineered from the ground up for rack-based environments. Its standard 1U form factor, comprehensive interface set — LAN, USB, GPIB, HDMI, and Application I/O — and full SCPI command support make it straightforward to integrate into existing ATE frameworks and automated production test systems. Web Control allows remote operation directly from a browser without additional software.
Flexible configuration for every application
With eight standard models spanning four frequency bands and two port configurations, the DNA6000-R Series can be matched precisely to application requirements. Optional TDA Time-Domain Analysis and DTF Distance-to-Fault software functions add advanced diagnostic capability — useful for cable and antenna testing, fault location, and signal integrity analysis — without changing the hardware platform.
