| Brand | Tekbox |
|---|
Tripods
The Electrometric Tripods are a versatile series of mounting solutions designed to support antennas and probes during EMC measurements. These tripods offer adjustable positioning to ensure repeatable test conditions with heights ranging up to 2000 mm and materials including Carbon Fiber and Glass Fiber. This range provides the necessary stability and precision required for professional electromagnetic compatibility testing.
Key Specifications & Features
- Application: EMC measurement antenna and probe mounting
- Material Varieties: ABS, Wood, Glass Fiber, and Carbon Fiber
- Maximum Height: Up to 2000 mm (TBTP4 model)
- Portable Options: Hand-held ABS pistol grip (TBTP2)
- Stability: Robust mechanical construction for fixed positioning
- Height Range: 90 mm to 2000 mm depending on model
- Repeatability: Ensures consistent test setups for accurate data
| TBTP2 | ABS Tripod, 90 mm / Hand-Held Pistol Grip |
| TBTP3 | Wooden Tripod, 1800 mm |
| TBTP4 | Wooden Tripod, 2000 mm |
| TBTP5 | Glass Fibeer Tripod, 1720 mm |

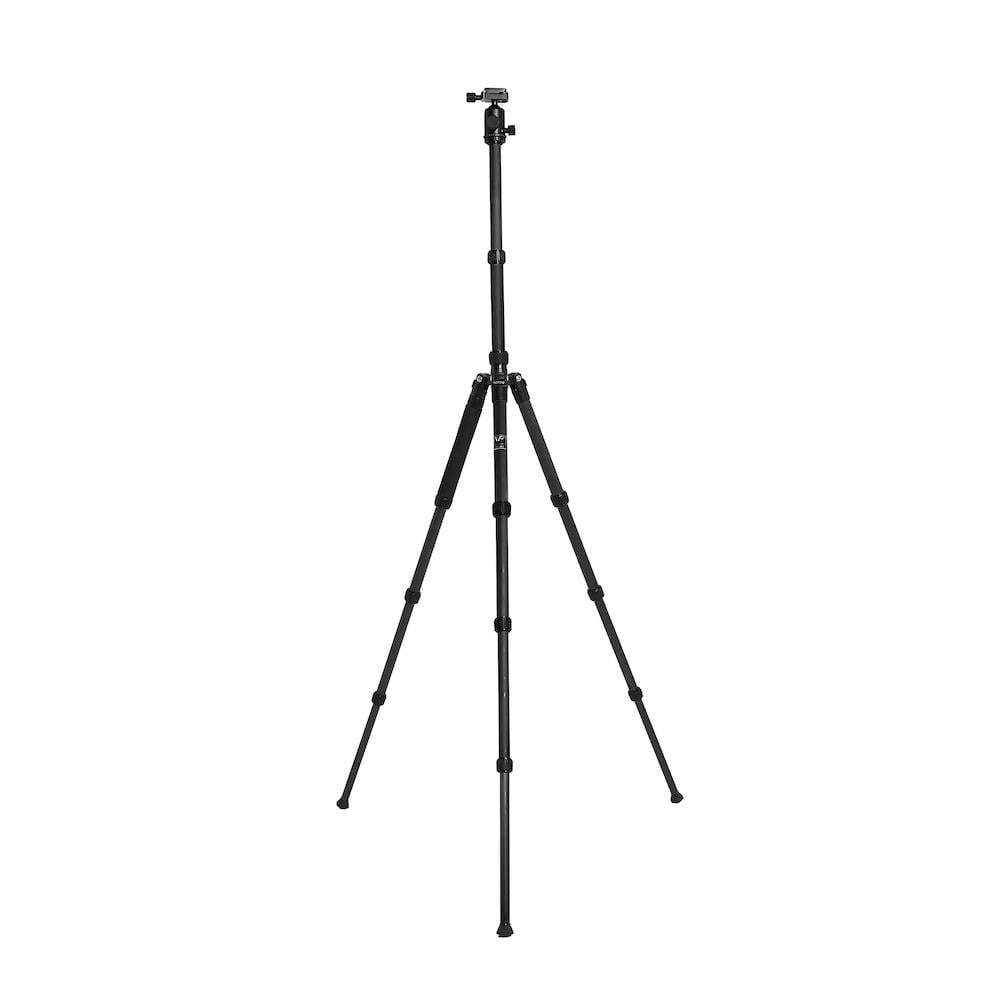

| TBTP1 | Carbon Fiber Tripod, 1490 mm |
No downloads available.
Tripods
The Electrometric series of tripods provides a professional solution for mounting antennas and probes within EMC test environments. These supports are essential for maintaining precise equipment orientation, which is a critical factor in achieving repeatable and reliable measurement results. By providing a stable platform, they eliminate the variables associated with manual handling or makeshift mounting solutions.
The construction of these tripods utilizes high-quality materials such as wood, glass fiber, and carbon fiber to meet various RF transparency and durability requirements. The stable mechanical design ensures that heavy antennas or sensitive probes remain securely in place throughout the duration of a test. This reliability is paramount in laboratories where consistent positioning is required across multiple frequency sweeps.
The available models range from the compact TBTP2 ABS hand-held pistol grip at 90 mm to the full-height TBTP4 wooden tripod reaching 2000 mm. Other options include the TBTP1 carbon fiber model at 1490 mm and the TBTP5 glass fiber variant at 1720 mm, offering a broad spectrum of heights and material properties. This diverse selection allows test engineers to customize their setup based on the specific physical and electromagnetic demands of their application.
Diverse Material Options
Available in ABS, wood, glass fiber, and carbon fiber to suit specific RF testing requirements.
Wide Height Range
Models range from 90 mm hand-held grips to 2000 mm floor-standing wooden tripods.
Stable Mechanical Design
Robust construction ensures that antennas and probes remain securely positioned during measurements.
Repeatable Test Results
Ensures consistent equipment placement to maintain the integrity of EMC measurement data.
Precision Antenna Positioning
These tripods are specifically engineered to facilitate the precise placement of antennas and probes in EMC test environments. By providing a stable and adjustable mounting platform, they ensure that every measurement is conducted under repeatable conditions, which is essential for compliance and diagnostic testing.
Specialized Material Selection
With options including non-reflective wood and glass fiber, as well as lightweight carbon fiber and ABS, this series addresses the need for different material properties in RF testing. Engineers can select the appropriate tripod to minimize interference while achieving heights from 90 mm up to 2000 mm.
