| Brand | Associated Research |
|---|

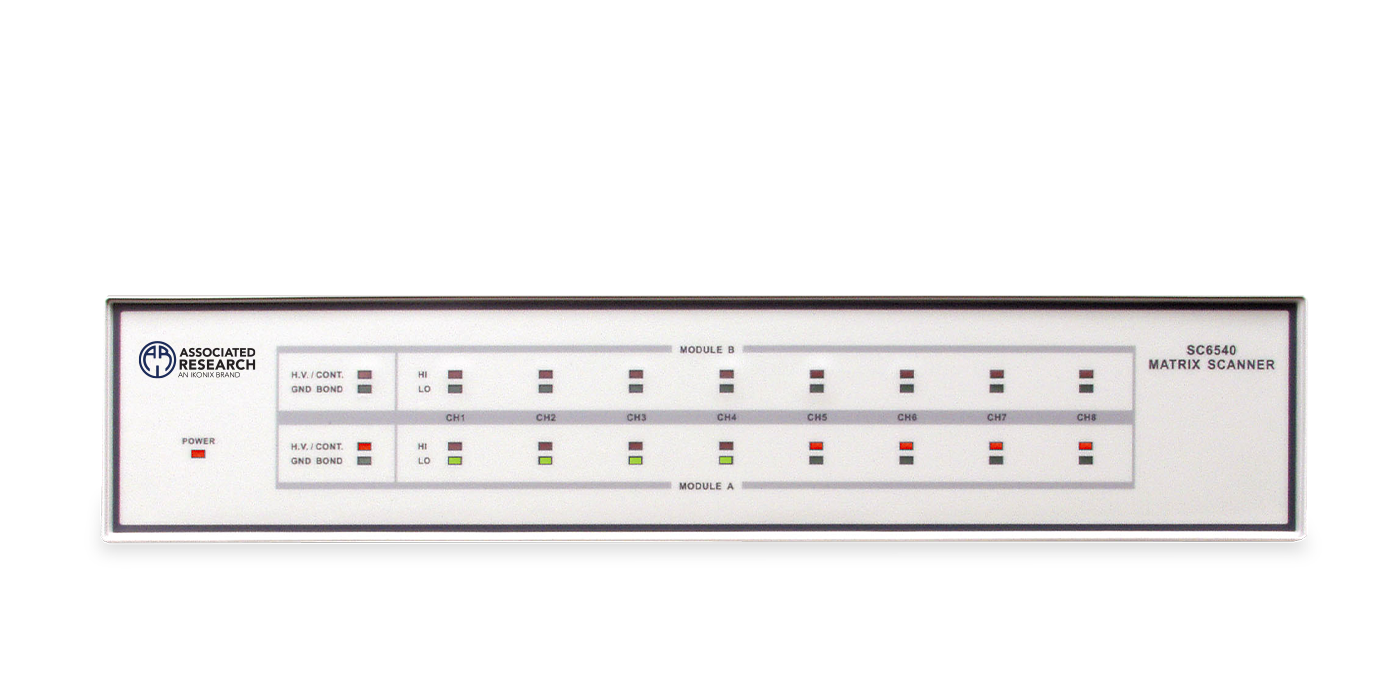

SC6540 multiplexer
The SC6540 multiplexer is a modular scanning matrix designed to automate multi-point switching for high-stakes electrical safety testing. It facilitates automated switching for Hipot, ground bond, and leakage current tests with capacities up to 5 kV AC and 6 kV DC. This system significantly increases throughput by eliminating the need for manual fixture changes during complex test sequences.
Key Specifications & Features
- High Voltage: Up to 5 kV AC and 6 kV DC
- High Current: Up to 40 A for ground bond and continuity tests
- Channel Density: 8 or 16 independent channels per module
- Configuration: Customizable with HV, HC, or mixed channel types
- Expandability: One master unit controls up to 4 secondary units
- Tester Compatibility: Interfaces with OMNIA II, HypotULTRA, and LINECHEK II
- Connectivity: Standard USB, RS-232, and Ethernet interfaces
- Automation: Supports fully automated PC-driven test sequences
| SC6540 | Modular Scanning Matrix |
No downloads available.
SC6540 multiplexer
The SC6540 multiplexer provides a sophisticated solution for multi-point electrical safety testing, allowing users to switch between Hipot, ground bond, and insulation resistance tests automatically. By integrating with high-performance testers, it streamlines the evaluation of complex products without the need for manual intervention. This versatility ensures that production lines can maintain high speed while ensuring comprehensive safety compliance across all test points.
Built for demanding production environments, the SC6540 features a modular design that can be configured with high-voltage or high-current channels. The system supports up to 40 A for ground bond tests and up to 6 kV DC for insulation resistance and dielectric withstand tests. Its robust switching technology reduces setup costs and minimizes the risk of human error by automating the connection process during the testing cycle.
As a modular scanning matrix, the SC6540 can be expanded to meet the needs of large-scale operations by linking a master unit to four secondary units. It offers seamless integration with industry-leading testers like the OMNIA II, HypotULTRA, and LINECHEK II via USB, RS-232, or Ethernet. This flexibility allows for highly customized test sequences that can be fully managed through automated PC-driven software for maximum efficiency.
High Voltage Capacity
Supports dielectric withstand testing with ratings up to 5 kV AC and 6 kV DC.
High Current Ground Bond
Delivers up to 40 A for automated ground bond and continuity testing applications.
Modular Channel Options
Configurable with 8 or 16 independent channels per module in various types.
Seamless Tester Integration
Interfaces directly with OMNIA II, HypotULTRA, and LINECHEK II safety testing systems.
Multi-Point Testing Automation
The SC6540 increases safety test throughput by enabling multi‑point switching of Hipot, ground bond, and leakage current tests without changing fixtures manually. It is ideal for complex products requiring sequential testing and for production lines where cycle time and fixture setup costs are critical.
Scalable Modular Configuration
This modular scanning matrix can be configured with 8 or 16 independent channels per module, supporting HV, HC, or mixed channel types. One master unit can control up to four secondary units, providing an expandable and flexible solution for high-density testing requirements.
