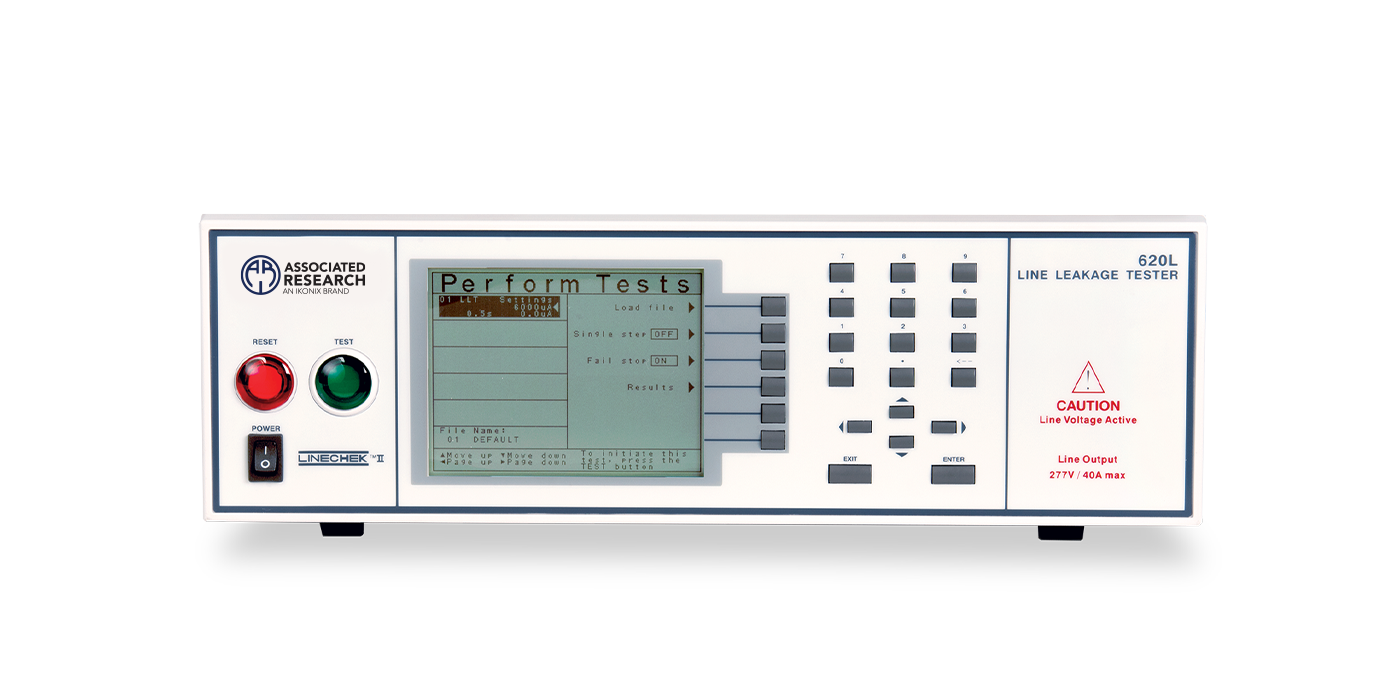

LINECHEK II Leakage Current Tester
The LINECHEK II Leakage Current Tester is a professional safety analyzer designed to evaluate leakage current and functional run testing during operation. It features high-precision measurement from 0–40 mA AC/DC and supports continuous current up to 40 A for comprehensive equipment evaluation. This versatile system is ideal for medical device and appliance manufacturers needing to meet strict IEC and UL safety standards.
Key Specifications & Features
- Leakage Current Range: 0–40 mA (AC/DC)
- Continuous Current: Up to 40 A with PC control
- Measuring Networks: 7 internal networks for global compliance
- Standard Support: IEC 60601-1, IEC 60335-1, and IEC 60598-1
- Safety Features: SmartGFI® and automatic shutdown protection
- Test Types: Line, chassis, and patient leakage simulation
- Connectivity: USB, RS-232, and optional Ethernet or GPIB
- Automation: Full data logging and multiplexer support
| 620L | |
| 620L-01 | GPIB Card |
| 620L-03 | Hipot/Ground Bond Interconnect |
| 620L-06 | Ethernet Card |
| 620L-08 | Leakage Current Offset Circuit |
No downloads available.
LINECHEK II Leakage Current Tester
The LINECHEK II Leakage Current Tester is a dedicated solution for leakage current and functional run testing in demanding production environments. It evaluates the current that may flow through or around insulation during operation, a critical safety requirement for modern electronics. By simulating various fault conditions, the LINECHEK II ensures that products comply with touch and protective conductor current limits across multiple industries.
Engineered with 7 internal measuring networks, this tester is capable of performing line, chassis, and patient leakage measurements with high accuracy. The system includes advanced safety technology such as SmartGFI® and hardware interlocks to protect operators while handling continuous currents up to 40 A. Its design is particularly suited for medical device manufacturers who must adhere to the rigorous IEC/UL 60601-1 standard.
The series is anchored by the 620L model, which offers extensive customization through various hardware options. Users can expand connectivity with the 620L-01 GPIB card or the 620L-06 Ethernet card for seamless network integration. For those requiring a complete safety testing station, the 620L-03 interconnect allows the LINECHEK II to interface directly with AC/DC Hipot and Ground Bond testers, while the 620L-08 provides a specialized Leakage Current Offset Circuit.
Comprehensive Leakage Testing
Supports line, chassis, and patient leakage measurements from 0 to 40 mA AC/DC.
High Current Capacity
Capable of continuous functional run testing at currents up to 40 A for heavy-duty equipment.
Advanced Safety Protocols
Features SmartGFI technology and automatic shutdown to ensure maximum operator protection.
Flexible Connectivity Options
Equipped with USB and RS-232 with optional GPIB and Ethernet cards for automated environments.
Medical and Industrial Compliance
The LINECHEK II is specifically engineered to meet the stringent safety requirements of medical device and appliance manufacturing. By incorporating 7 internal measuring networks, it allows for precise simulation of fault conditions required by standards such as IEC 60601-1 and IEC 60335-1.
Integrated Safety Testing Systems
This tester facilitates advanced system integration through its ability to interconnect with external Hipot and Ground Bond testers. With support for multiplexers and multiple interface options including USB and RS-232, it serves as a central hub for automated production line safety data logging.
