| Brand | Associated Research |
|---|

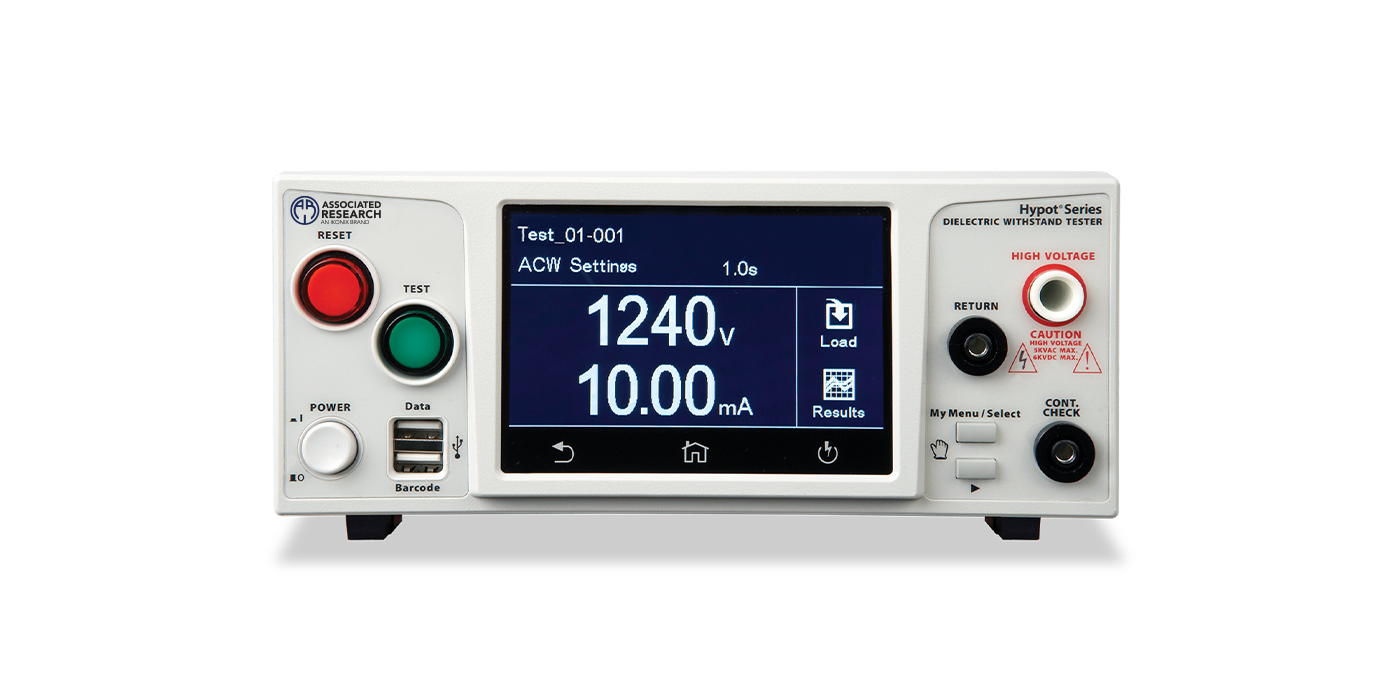

Hypot Series – Dielectrical Widthstand Testers
The Hypot Series is a dielectrical withstand tester designed to ensure electrical safety through Hipot, insulation resistance, and ground continuity testing. These benchtop units provide essential compliance verification with 5 kVAC @ 20 mA and 6 kVDC @ 7.5 mA capabilities. This series offers a compact and versatile solution for manufacturers requiring routine safety checks and product traceability.
Key Specifications & Features
- AC Hipot Testing: 5 kV @ 20 mA output for models 3805, 3855, 3865, and 3870
- DC Hipot Testing: 6 kV @ 7.5 mA available on models 3865 and 3870
- Insulation Resistance: 100–1000 V DC range with 1 MΩ–1000 MΩ measurement
- Operator Protection: Integrated SmartGFI® circuits and safety interlocks
- Standards Compliance: Meets IEC 60335-1, IEC 60598-1, and IEC/UL 61010-1
- Data Management: On-board storage, USB/RS-232 interfaces, and barcode integration
- Automation Options: PLC-ready outputs and 7 remote memories for production lines
- Advanced Detection: Optional arc detection and adjustable continuity settings
| 3805 | 5 kV @ 20 mA AC Hipot Tester |
| 3855 | 5 kV @ 20 mA AC Hipot with IR Tester |
| 3865 | 5 kV @ 20 mA AC, 6 kV @ 7.5 mA DC Hipot Tester |
| 3870 | 5 kV @ 20 mA AC, 6 kV @ 7.5 mA DC Hipot with IR Tester |
| 38xx-04 | 5mA output |
| 38xx-05 | 3mA output |
| 38xx-06 | 5 Ohm Continuity |
| 38xx-15 | PLC Ready Output |
| 38xx-16 | 7 Remote Memories |
| 38xx-17 part 40473 | RS-232 Interface |
| 38xx-18 | Advanced Arc Detection |
No downloads available.
Hypot Series - Dielectrical Widthstand Testers
The Hypot Series provides essential dielectric withstand (Hipot), insulation resistance, and ground continuity testing in a compact benchtop form. These testers are specifically engineered to help manufacturers and compliance labs verify insulation integrity and grounding connections for products like consumer electronics, appliances, and industrial controls. By supporting critical safety standards such as UL 1012 and IEC 60335-1, these instruments ensure routine production and pre-compliance testing are both accurate and efficient.
Built with safety and precision in mind, the series features SmartGFI® technology to protect operators from accidental electrical shock during high-voltage procedures. The hardware includes high-performance AC and DC sources, with the 3870 model offering comprehensive Insulation Resistance (IR) testing up to 1000V DC. Advanced arc detection and automatic shutdown on fault conditions provide an extra layer of protection, while the rugged construction ensures reliability in demanding production environments.
The series offers significant versatility through a range of models including the 3805 AC tester and the 3870 multi-function AC/DC/IR unit. Customization options such as PLC-ready outputs, 7 remote memories, and RS-232 interfaces allow for seamless integration into automated production lines. Users can further tailor the instruments with specialized options for 5 Ohm continuity or specific current output limits like 3mA or 5mA to meet unique testing requirements.
Multi-Function Safety Testing
Conduct AC/DC Hipot, insulation resistance, and ground continuity tests in one compact benchtop unit.
Advanced Operator Protection
SmartGFI technology and safety interlocks minimize the risk of electrical shock during high-voltage operations.
Seamless Automation Integration
Utilize PLC-ready outputs and RS-232 interfaces to connect with automated production lines and barcode systems.
Industry Standard Compliance
Ensure your products meet IEC and UL safety requirements for consumer electronics, lighting, and industrial equipment.
Comprehensive Safety and Compliance
The Hypot Series is designed to meet rigorous international standards including IEC 60598-1 and IEC/UL 61010-1. With integrated SmartGFI circuits and safety interlocks, these testers prioritize operator protection while maintaining high-throughput production testing for CE and UL certification.
Data Integration and Automation
These instruments support modern manufacturing workflows through barcode integration and on-board data storage for full product traceability. The inclusion of USB and RS-232 interfaces, along with PLC-ready output options, ensures the series can be easily integrated into automated test environments.
