DG6000 Function Generators/AWG

DG6000 Function Generators/AWG

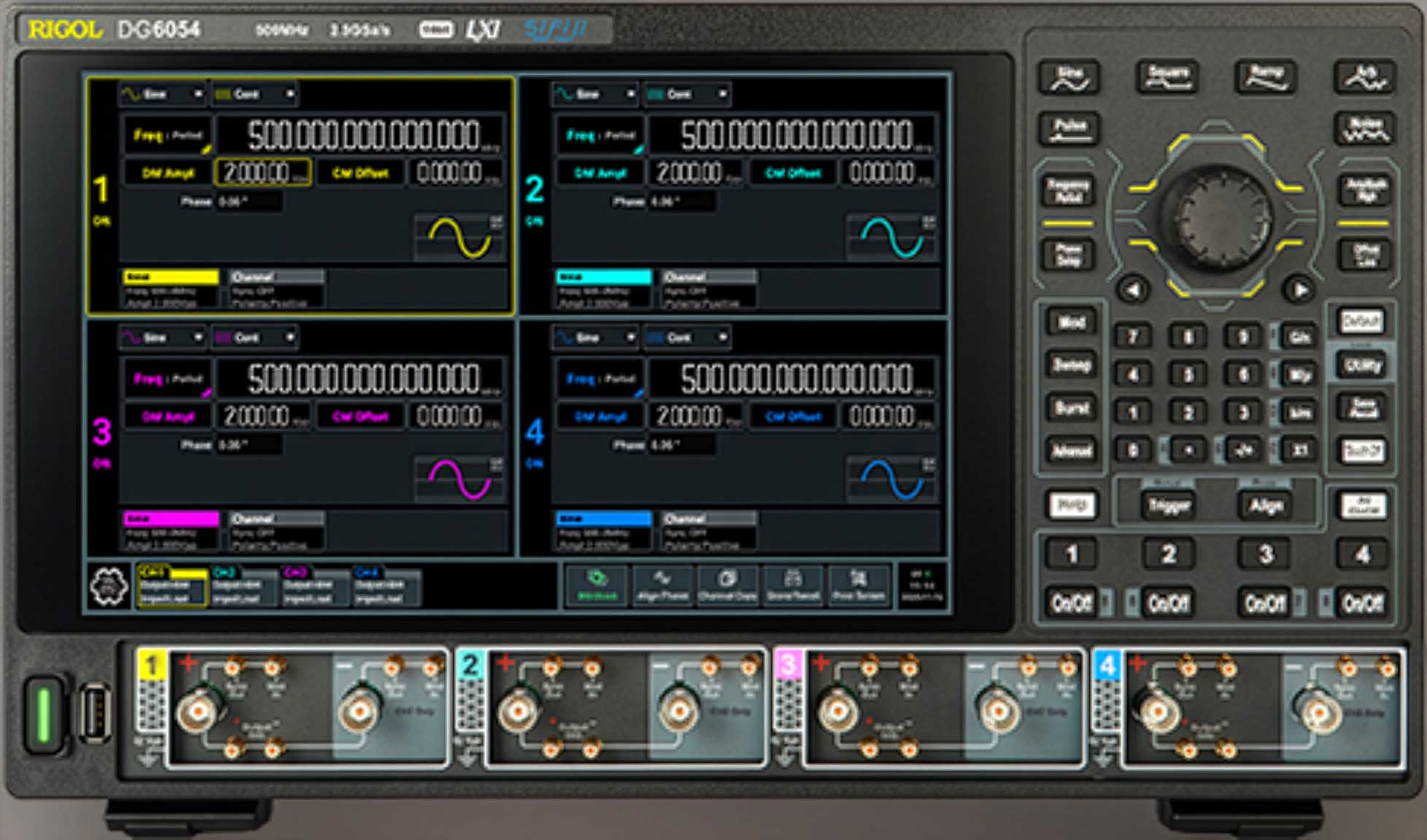

  The DG6000 series represents Rigol's next generation of high-end signal generators, offering a combination of high bandwidth and deep memory. With models ranging from 500 MHz to 1000 MHz, these instruments provide 16-bit vertical resolution and up to 2.5 GSa/s sampling to ensure clean, distortion-free signals. They are engineered to handle complex tasks like IQ modulation, PRBS generation, and advanced arbitrary waveform sequencing for the most demanding electronic applications. Built on an advanced architecture with full channel isolation, the DG6000 supports up to 4-channel differential or 8-channel single-ended outputs. The hardware is capable of delivering ±10 V high-voltage differential signals and ultra-fast 350 ps square wave edges without requiring external baluns or amplifiers. This design significantly simplifies test setups in high-speed communications, power electronics, and automotive environments while ensuring repeatable results. Users can choose between several configurations, such as the 1 GHz DG6104 or the 500 MHz DG6052, to match their specific application requirements. Standard memory depth sits at 256 Mpts per channel, which can be expanded to 512 Mpts with the DG6000-2RL option for longer waveform sequences. The system includes a 10.1-inch touch screen for intuitive local control and standard Web Control for seamless remote operation and collaboration.
