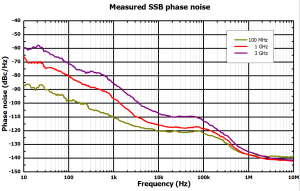

| Brand | RIGOL |
|---|---|
| Frequency Range | 9kHz~3.6GHz |
| Amplitude Specification Range | -110dBm~+13dBm |
| SSB Phase Noise (Typ.) | <-116dBc/Hz@1GHz,20kHz offset |
| Modulation Type | AM/FM/ØM/Pulse |

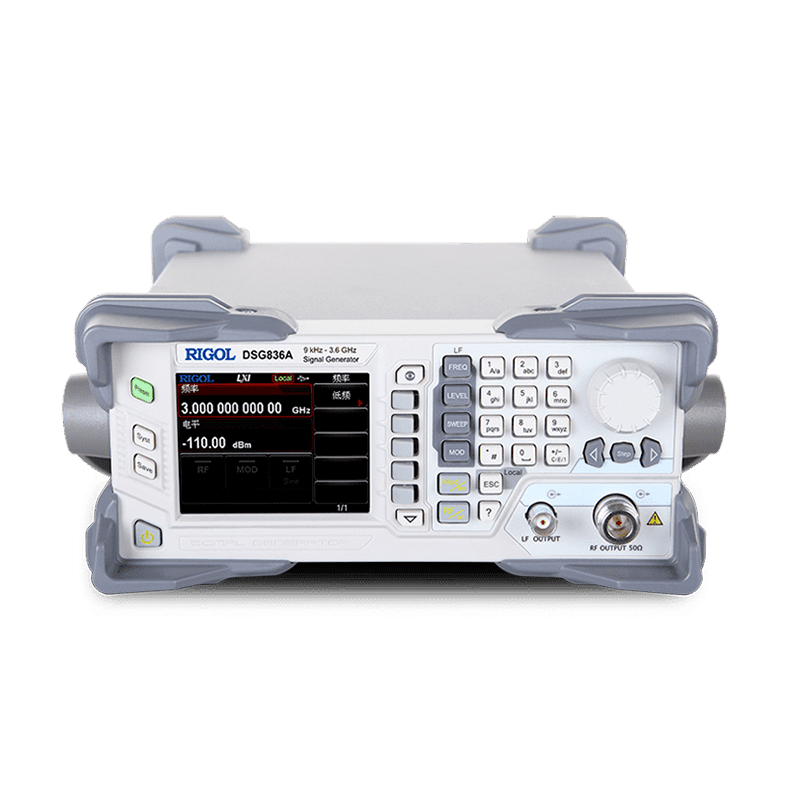

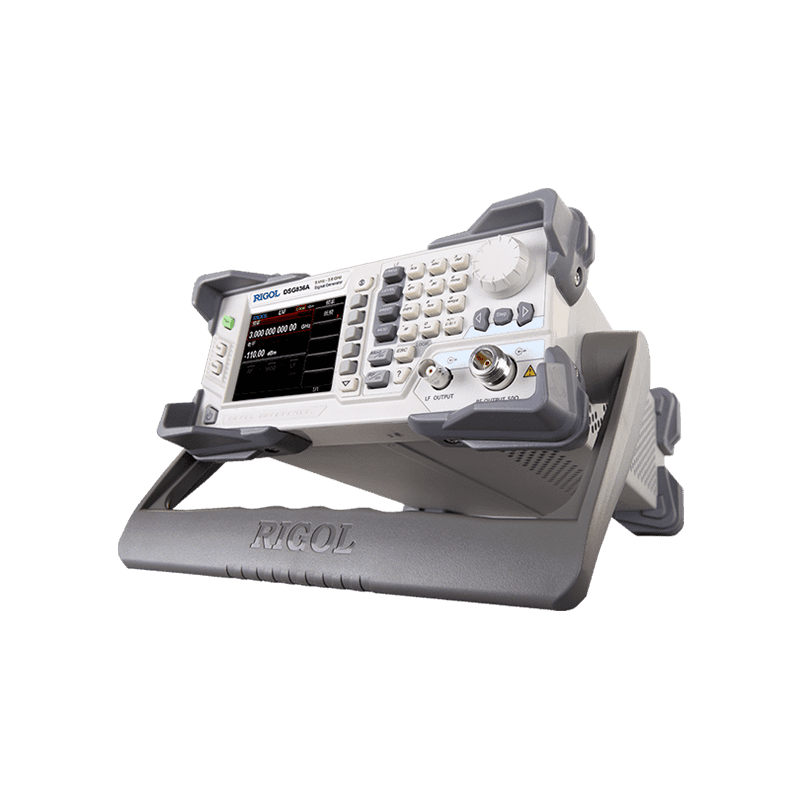

DSG800 RF Signal Generator
The DSG800 Series is a compact RF signal generator platform from RIGOL designed for RF development, testing, and education. With frequency coverage up to 3.6 GHz, stable output power, and multiple modulation capabilities, it provides a reliable signal source for RF circuit design, receiver testing, and communication system development.
Key Specifications & Features
- Frequency Range: 9 kHz to 3.6 GHz
- Output Level Range: -110 dBm to +13 dBm
- SSB Phase Noise: typ. < -112 dBc/Hz @ 1 GHz, 20 kHz offset
- Modulation: AM, FM, PM, Pulse
- Optional IQ Modulation (A models)
- Frequency Resolution: 0.01 Hz

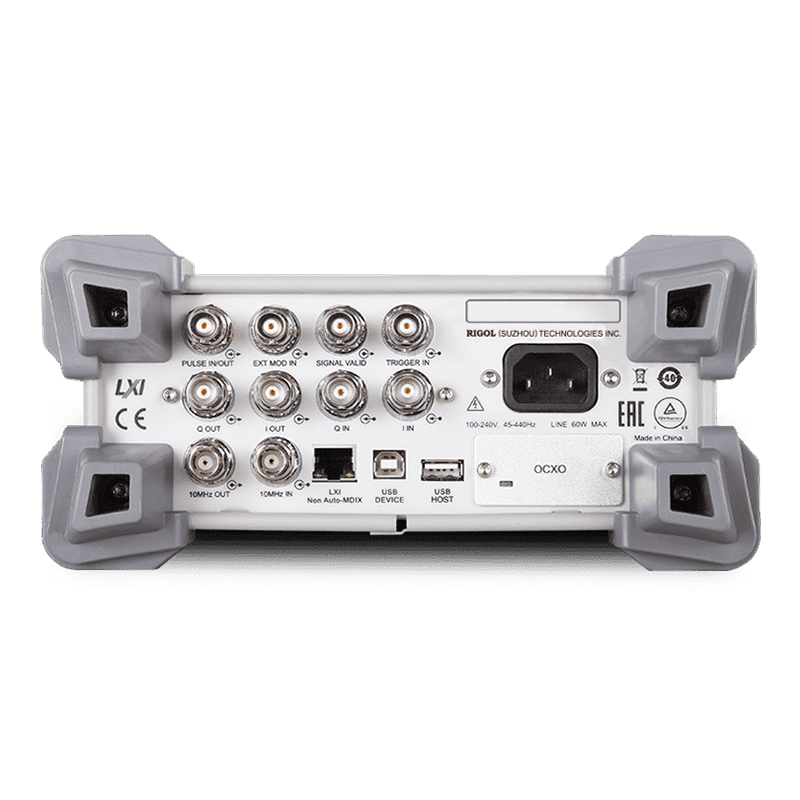

- Interfaces: USB, LAN
- Internal Reference: 10 MHz
| Model | Frequency Range | Amplitude Range | SSB Phase Noise (Typ.) | Modulation |
|---|---|---|---|---|
| DSG815 | 9 kHz – 1.5 GHz | -110 dBm to +13 dBm | <-112 dBc/Hz @1 GHz, 20 kHz offset | AM / FM / PM / Pulse |
| DSG821 | 9 kHz – 2.1 GHz | -110 dBm to +13 dBm | <-112 dBc/Hz @1 GHz, 20 kHz offset | AM / FM / PM / Pulse |
| DSG836 | 9 kHz – 3.6 GHz | -110 dBm to +13 dBm | <-112 dBc/Hz @1 GHz, 20 kHz offset | AM / FM / PM / Pulse |
| DSG821A | 9 kHz – 2.1 GHz | -110 dBm to +13 dBm | <-112 dBc/Hz @1 GHz, 20 kHz offset | AM / FM / PM / Pulse / IQ |
| DSG836A | 9 kHz – 3.6 GHz | -110 dBm to +13 dBm | <-112 dBc/Hz @1 GHz, 20 kHz offset | AM / FM / PM / Pulse / IQ |
DSG800 RF Signal Generator
The RIGOL DSG800 Series RF signal generators are designed to provide stable and flexible RF signal generation for development, testing, and educational applications. The instruments support frequency coverage from 9 kHz up to 3.6 GHz depending on the model, enabling signal generation across a wide range of RF and microwave applications.
The generators provide output levels from -110 dBm up to +13 dBm and support analog modulation modes including AM, FM, PM, and pulse modulation. Selected models in the series also support IQ modulation, enabling more advanced signal generation for communication system testing and signal simulation.
With compact bench-top design, integrated reference clock, and connectivity through USB and LAN interfaces, the DSG800 Series provides a practical RF signal source suitable for laboratories, production environments, and educational use.
Up to 3.6 GHz Frequency Range
Supports RF development and testing across a wide frequency spectrum.
Stable RF Output Power
Output levels from -110 dBm to +13 dBm enable flexible signal generation.
Multiple Modulation Modes
AM, FM, PM, and pulse modulation support a wide range of RF test scenarios.
Optional IQ Modulation
A-series models provide IQ modulation for advanced signal simulation.
Wide RF Frequency Coverage
The DSG800 Series supports signal generation from 9 kHz up to 3.6 GHz, enabling engineers to test RF circuits, receivers, and communication systems across a broad frequency range.
Flexible Modulation Capabilities

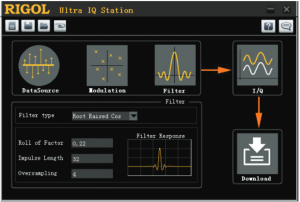

The generators support multiple modulation modes including AM, FM, PM, and pulse modulation. Selected models also include IQ modulation capability for more advanced RF signal simulation.
