Anritsu has introduced the Tensor MS466XXA, a new generation Vector Network Analyzer that marks a significant milestone in RF and microwave test instrumentation. The Tensor is the world’s first VNA with an integrated artificial intelligence engine — combining high-speed measurement performance with automated setup, natural language interaction, and enhanced architectural flexibility.

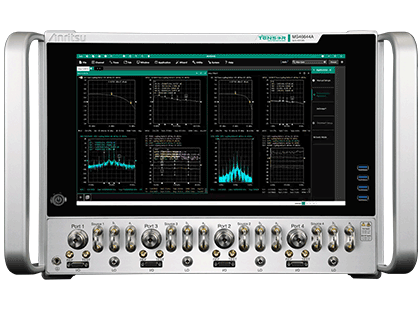

What Is the Anritsu Tensor MS466XXA?
The Tensor MS466XXA is a high-performance VNA designed for characterizing passive, active, and frequency-translating devices including mixers, amplifiers, antennas, and multiport networks. It is available in 2- and 4-port configurations and supports a wide range of hardware options including direct access loops, step attenuators, a second internal local oscillator on four-port instruments, external ALC, external IF in and out, and banded mmWave support.
At its core, the Tensor is built around a true source-per-port architecture — a dedicated RF source for each port — delivering exceptional output power, improved flexibility, and outstanding input power handling ideal for demanding active device testing.
AI-Assisted Measurement: A New Standard for Usability
The defining feature of the Tensor is its built-in Anritsu AI (AAI) engine, which allows engineers to configure complex measurements through natural language interaction. Rather than navigating menus and manually entering calibration sequences, users can simply describe what they need: “Hey Tensor, can you help me set up a mixer measurement?” — and the system responds with a full setup including a block diagram, recommended connections, and configuration settings.
Once sufficient information is provided, Tensor automatically configures the measurement, performs the required calibrations, and executes the test. This significantly reduces setup time and minimizes the risk of user error — particularly valuable in complex multi-step measurements such as mixer characterization or gain compression testing.
Importantly, the AI engine is fully self-contained and operates without any internet connection. This makes the Tensor suitable for secure laboratory environments, classified facilities, and regulated industries where network connectivity is restricted.
Key Specifications and Performance
The Tensor MS466XXA delivers industry-leading measurement performance across a broad range of parameters. Dynamic range reaches 147 dB above 2 GHz, providing the sensitivity needed for high-precision passive and active device characterization. Native mmWave capability supports direct measurements up to 1.1 THz without requiring external frequency extenders or additional hardware.
Integrated hardware enhancements include built-in bias tees, high-linearity receivers, and precision attenuators — reducing the need for external components and simplifying test setups. The instrument features a large touchscreen with an intuitive, responsive graphical user interface designed for modern lab workflows.
Applications
The Tensor MS466XXA is suited for a broad range of RF and microwave test applications. Amplifier characterization capabilities include gain, gain compression, MFGC, harmonics, and distortion analysis. Mixer measurement support covers scalar and vector analysis as well as dual LO configurations for complex setups. Antenna testing supports both passive and active device characterization including phased array validation. Multiport and signal integrity testing covers PCB and interconnect analysis with automated multiport measurements. For mmWave applications, the Tensor supports banded measurements with coverage extending up to 1.1 THz.
Key industries and application areas include telecommunications and wireless R&D, aerospace and defence, radar and electronic warfare, semiconductor characterization, and advanced research laboratories.
Interested in the Anritsu Tensor MS466XXA?
Electrometric is the official Anritsu distributor for the Benelux. Our RF and microwave specialists are available to discuss your measurement requirements, help you select the right Tensor configuration, and provide application guidance.
